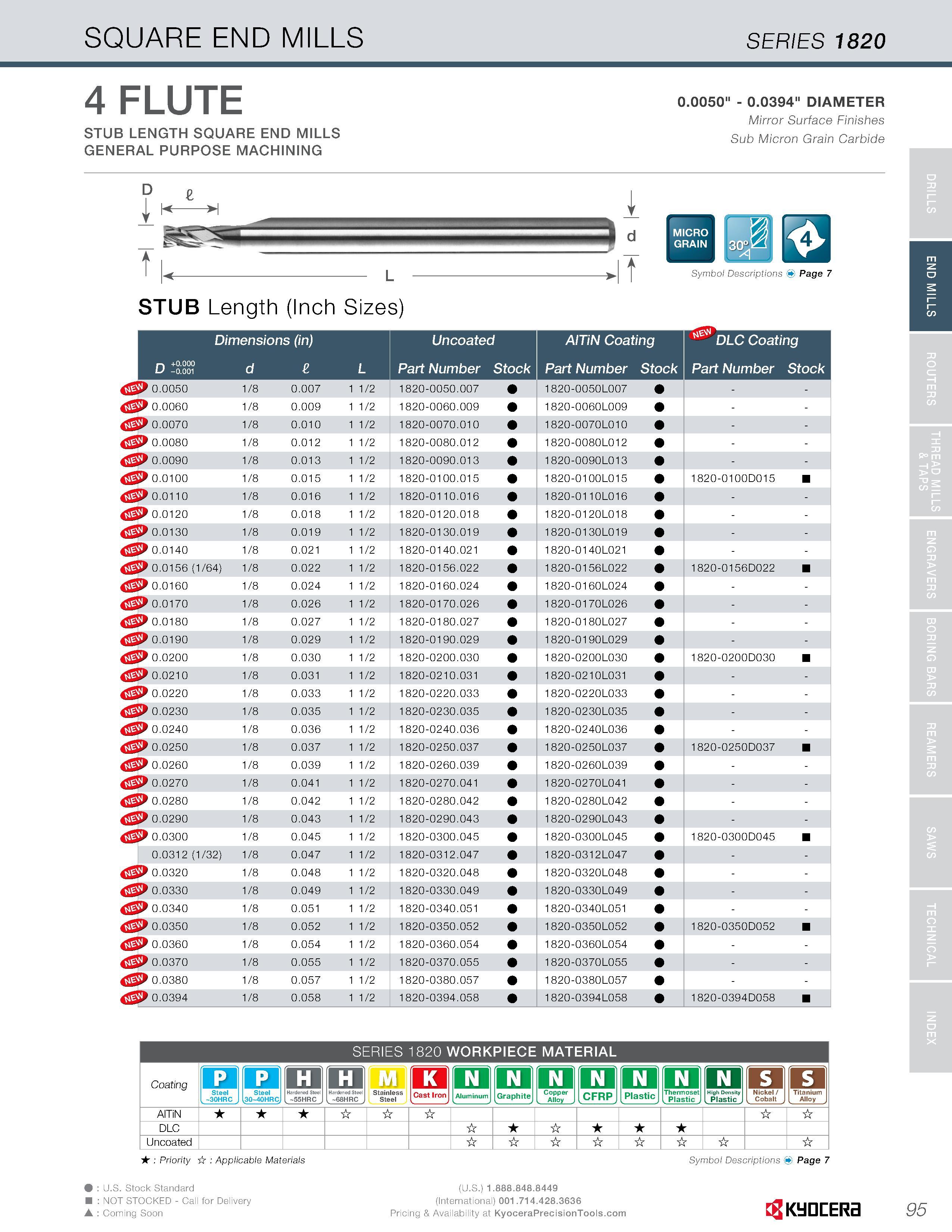

SQUARE END MILLS SERIES 1820 4 FLUTE STUB LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.0050" - 0.0394" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide T L i >l t Symbol Descriptions Page 7 STUB Length (Inch Sizes) r-k +0.000 U -0.001 Dimensions (in) d L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 9 0.0050 1/8 0.007 1 1/2 1820-0050.007 1820-0050L007 - 9 0.0060 1/8 0.009 1 1/2 1820-0060.009 1820-0060L009 - 9 0.0070 1/8 0.010 1 1/2 1820-0070.010 1820-0070L010 - 9 0.0080 1/8 0.012 1 1/2 1820-0080.012 1820-0080L012 - 9 0.0090 1/8 0.013 1 1/2 1820-0090.013 1820-0090L013 - 9 0.0100 1/8 0.015 1 1/2 1820-0100.015 1820-01 00L015 1 820-0100D015 9 0.0110 1/8 0.016 1 1/2 1820-0110.016 1820-0110L016 - 9 0.0120 1/8 0.018 1 1/2 1820-0120.018 1820-01 20L018 - 9 0.0130 1/8 0.019 1 1/2 1820-0130.019 1820-01 30L019 - 9 0.0140 1/8 0.021 1 1/2 1820-0140.021 1820-01 40L021 - 9 0.0156 (1/64) 1/8 0.022 1 1/2 1820-0156.022 1820-01 56L022 1 820-0156D022 0.0160 1/8 0.024 1 1/2 1820-0160.024 1820-01 60L024 - 9 0.0170 1/8 0.026 1 1/2 1820-0170.026 1820-01 70L026 - 9 0.0180 1/8 0.027 1 1/2 1820-0180.027 1820-01 80L027 - 9 0.0190 1/8 0.029 1 1/2 1820-0190.029 1820-01 90L029 - 9 0.0200 1/8 0.030 1 1/2 1820-0200.030 1820-0200L030 1820-0200D030 9 0.0210 1/8 0.031 1 1/2 1820-0210.031 1820-0210L031 - 9 0.0220 1/8 0.033 1 1/2 1820-0220.033 1820-0220L033 - 9 0.0230 1/8 0.035 1 1/2 1820-0230.035 1820-0230L035 - 9 0.0240 1/8 0.036 1 1/2 1820-0240.036 1820-0240L036 - 9 0.0250 1/8 0.037 1 1/2 1820-0250.037 1820-0250L037 1820-0250D037 0.0260 1/8 0.039 1 1/2 1820-0260.039 1820-0260L039 - 5> 0.0270 1/8 0.041 1 1/2 1820-0270.041 1820-0270L041 - 9 0.0280 1/8 0.042 1 1/2 1820-0280.042 1820-0280L042 - 5> 0.0290 1/8 0.043 1 1/2 1820-0290.043 1820-0290L043 - 9 0.0300 1/8 0.045 1 1/2 1820-0300.045 1820-0300L045 1820-0300D045 0.0312 (1/32) 1/8 0.047 1 1/2 1820-0312.047 1820-0312L047 - 0.0320 1/8 0.048 1 1/2 1820-0320.048 1820-0320L048 - 5> 0.0330 1/8 0.049 1 1/2 1820-0330.049 1820-0330L049 - 9 0.0340 1/8 0.051 1 1/2 1820-0340.051 1820-0340L051 - 5> 0.0350 1/8 0.052 1 1/2 1820-0350.052 1820-0350L052 1820-0350D052 9 0.0360 1/8 0.054 1 1/2 1820-0360.054 1820-0360L054 - 5> 0.0370 1/8 0.055 1 1/2 1820-0370.055 1820-0370L055 - 9 0.0380 1/8 0.057 1 1/2 1820-0380.057 1820-0380L057 - 5> 0.0394 1/8 0.058 1 1/2 1820-0394.058 1820-0394L058 1820-0394D058 SERIES 1820 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 95 END MILLS
