96 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.94

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 94 0096 ENG Lab2u

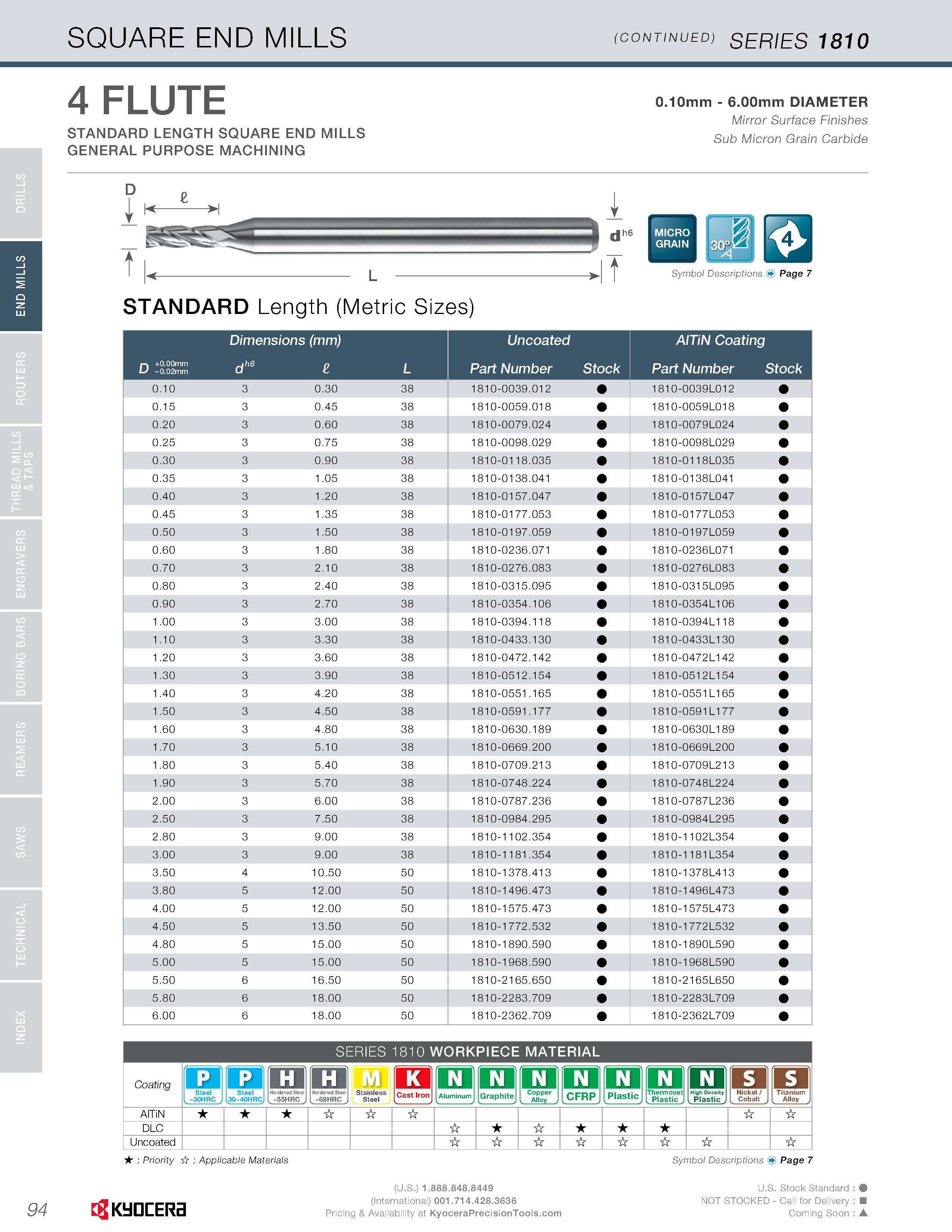

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1810 4 FLUTE STANDARD LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.10mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Length (Metric Sizes) Ji Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating PI -t-O.OQmm LJ -0.02mm dh6 L Part Number Stock Part Number Stock 0.10 3 0.30 38 1810-0039.012 1810-0039L012 0.15 3 0.45 38 1810-0059.018 1810-0059L018 0.20 3 0.60 38 1810-0079.024 1810-0079L024 0.25 3 0.75 38 1810-0098.029 1810-0098L029 0.30 3 0.90 38 1810-0118.035 1810-0118L035 0.35 3 1.05 38 1810-0138.041 1810-0138L041 0.40 3 1.20 38 1810-0157.047 1810-0157L047 0.45 3 1.35 38 1810-0177.053 1810-0177L053 0.50 3 1.50 38 1810-0197.059 1810-0197L059 0.60 3 1.80 38 1810-0236.071 1810-0236L071 0.70 3 2.10 38 1810-0276.083 1810-0276L083 0.80 3 2.40 38 1810-0315.095 1810-031 5L095 0.90 3 2.70 38 1810-0354.106 1810-0354L106 1.00 3 3.00 38 1810-0394.118 1810-0394L118 1.10 3 3.30 38 1810-0433.130 1810-0433L130 1.20 3 3.60 38 1810-0472.142 1810-0472L142 1.30 3 3.90 38 1810-0512.154 181 0-051 2L1 54 1.40 3 4.20 38 1810-0551.165 1810-0551L165 1.50 3 4.50 38 1810-0591.177 1810-0591 L177 1.60 3 4.80 38 1810-0630.189 1810-0630L189 1.70 3 5.10 38 1810-0669.200 1810-0669L200 1.80 3 5.40 38 1810-0709.213 1810-0709L213 1.90 3 5.70 38 1810-0748.224 1810-0748L224 2.00 3 6.00 38 1810-0787.236 1810-0787L236 2.50 3 7.50 38 1810-0984.295 1810-0984L295 2.80 3 9.00 38 1810-1102.354 1810-1102L354 3.00 3 9.00 38 1810-1181.354 1810-1181L354 3.50 4 10.50 50 1810-1378.413 1810-1 378L413 3.80 5 12.00 50 1810-1496.473 1810-1 496L473 4.00 5 12.00 50 1810-1575.473 1810-1 575L473 4.50 5 13.50 50 1810-1772.532 1810-1 772L532 4.80 5 15.00 50 1810-1890.590 1810-1 890L590 5.00 5 15.00 50 1810-1968.590 1810-1 968L590 5.50 6 16.50 50 1810-2165.650 1810-2165L650 5.80 6 18.00 50 1810-2283.709 1810-2283L709 6.00 6 18.00 50 1810-2362.709 1810-2362L709 SERIES 1810 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H Stainless Steel K Q Aluminuin Graphite o Copper . Alloy CFRP Q Plastic Thermoset . Plastic m . Plastic I s I is i' Hardened Steel I -68HRC J j Cast IronJ Nickel/ Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( 94 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
