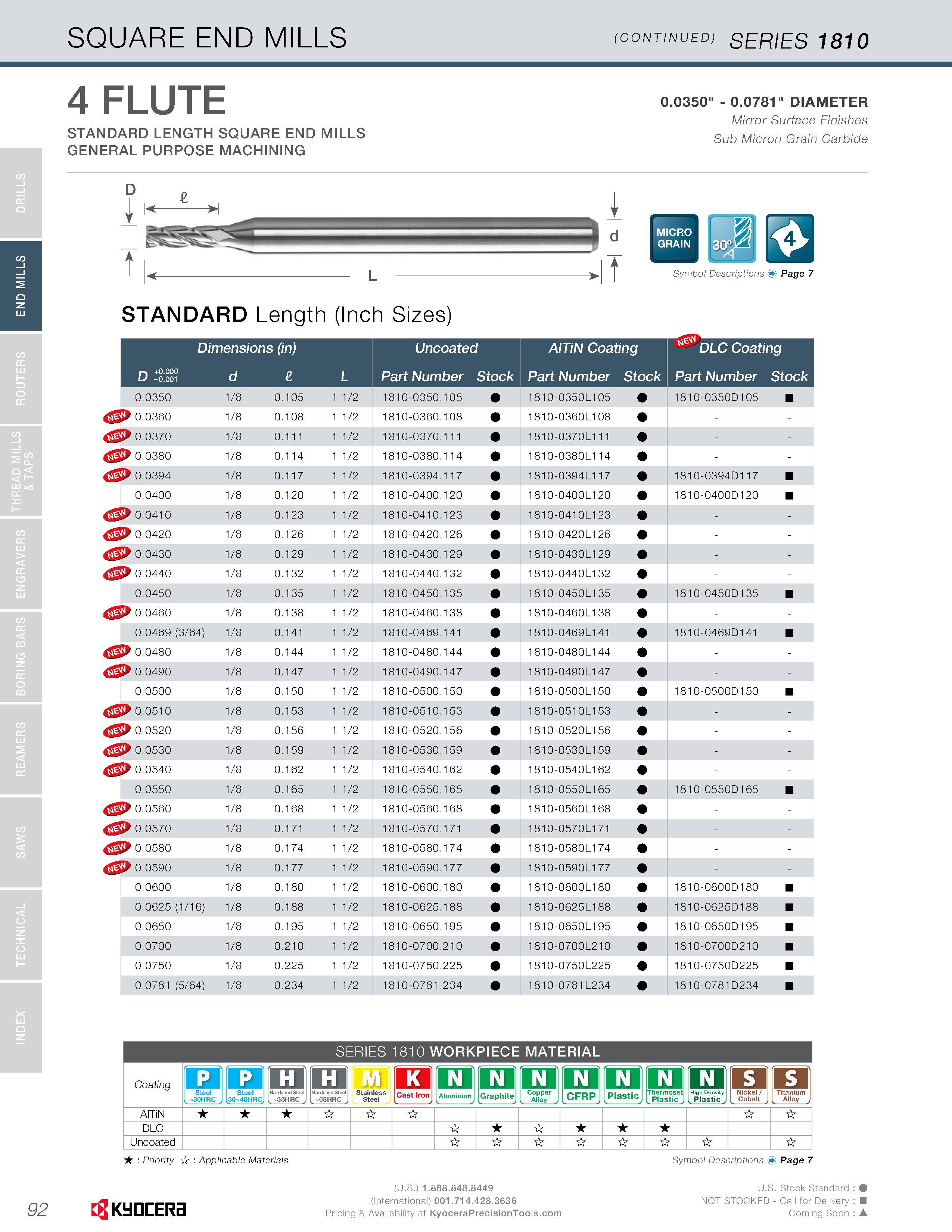

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1810 4 FLUTE STANDARD LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.0350" - 0.0781" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide -It 3oJ Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) r-k +0.000 U -0.001 Dimensions (in) d e L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0350 1/8 0.105 1 1/2 1810-0350.105 1 810-0350L1 05 181 0-0350D1 05 S> 0.0360 1/8 0.108 1 1/2 1810-0360.108 1 810-0360L1 08 - 9 0.0370 1/8 0.111 1 1/2 1810-0370.111 1 810-0370L111 - S> 0.0380 1/8 0.114 1 1/2 1810-0380.114 1 810-0380L114 - 9 0.0394 1/8 0.117 1 1/2 1810-0394.117 1 810-0394L117 181 0-0394D117 0.0400 1/8 0.120 1 1/2 1810-0400.120 1 810-0400L1 20 181 0-0400D1 20 9 0.0410 1/8 0.123 1 1/2 1810-0410.123 1 810-041 0L1 23 - S> 0.0420 1/8 0.126 1 1/2 1810-0420.126 1 810-0420L1 26 - 9 0.0430 1/8 0.129 1 1/2 1810-0430.129 1 810-0430L1 29 - S> 0.0440 1/8 0.132 1 1/2 1810-0440.132 1 810-0440L1 32 - 0.0450 1/8 0.135 1 1/2 1810-0450.135 1 810-0450L1 35 181 0-0450D1 35 S> 0.0460 1/8 0.138 1 1/2 1810-0460.138 1 810-0460L1 38 - 0.0469 (3/64) 1/8 0.141 1 1/2 1810-0469.141 1 810-0469L1 41 181 0-0469D1 41 9 0.0480 1/8 0.144 1 1/2 1810-0480.144 1 810-0480L1 44 - 0.0490 1/8 0.147 1 1/2 1810-0490.147 1 810-0490L1 47 - 0.0500 1/8 0.150 1 1/2 1810-0500.150 1 810-0500L1 50 181 0-0500D1 50 0.0510 1/8 0.153 1 1/2 1810-0510.153 1 810-051 0L1 53 - S> 0.0520 1/8 0.156 1 1/2 1810-0520.156 1 810-0520L1 56 - 0.0530 1/8 0.159 1 1/2 1810-0530.159 1 810-0530L1 59 - 2> 0.0540 1/8 0.162 1 1/2 1810-0540.162 1 810-0540L1 62 - 0.0550 1/8 0.165 1 1/2 1810-0550.165 1 810-0550L1 65 181 0-0550D1 65 S> 0.0560 1/8 0.168 1 1/2 1810-0560.168 1 810-0560L1 68 - 0.0570 1/8 0.171 1 1/2 1810-0570.171 1 810-0570L1 71 - S> 0.0580 1/8 0.174 1 1/2 1810-0580.174 1 810-0580L1 74 - 0.0590 1/8 0.177 1 1/2 1810-0590.177 1 810-0590L1 77 - 0.0600 1/8 0.180 1 1/2 1810-0600.180 1 810-0600L1 80 181 0-0600D1 80 0.0625 (1/16) 1/8 0.188 1 1/2 1810-0625.188 1 810-0625L1 88 181 0-0625D1 88 0.0650 1/8 0.195 1 1/2 1810-0650.195 1 810-0650L1 95 181 0-0650D1 95 0.0700 1/8 0.210 1 1/2 1810-0700.210 1 810-0700L210 181 0-0700D210 0.0750 1/8 0.225 1 1/2 1810-0750.225 1 810-0750L225 1810-0750D225 0.0781 (5/64) 1/8 0.234 1 1/2 1810-0781.234 1810-0781L234 181 0-0781 D234 SERIES 1810 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC fin Stainless Steel K Q Aluminum Graphite Q Copper . Alloy CFRP Q Plastic Thermoset . Plastic o . Plastic m m Hardened Steel -68HRC J j Cast Ironj Nickel/ Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( 92 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
