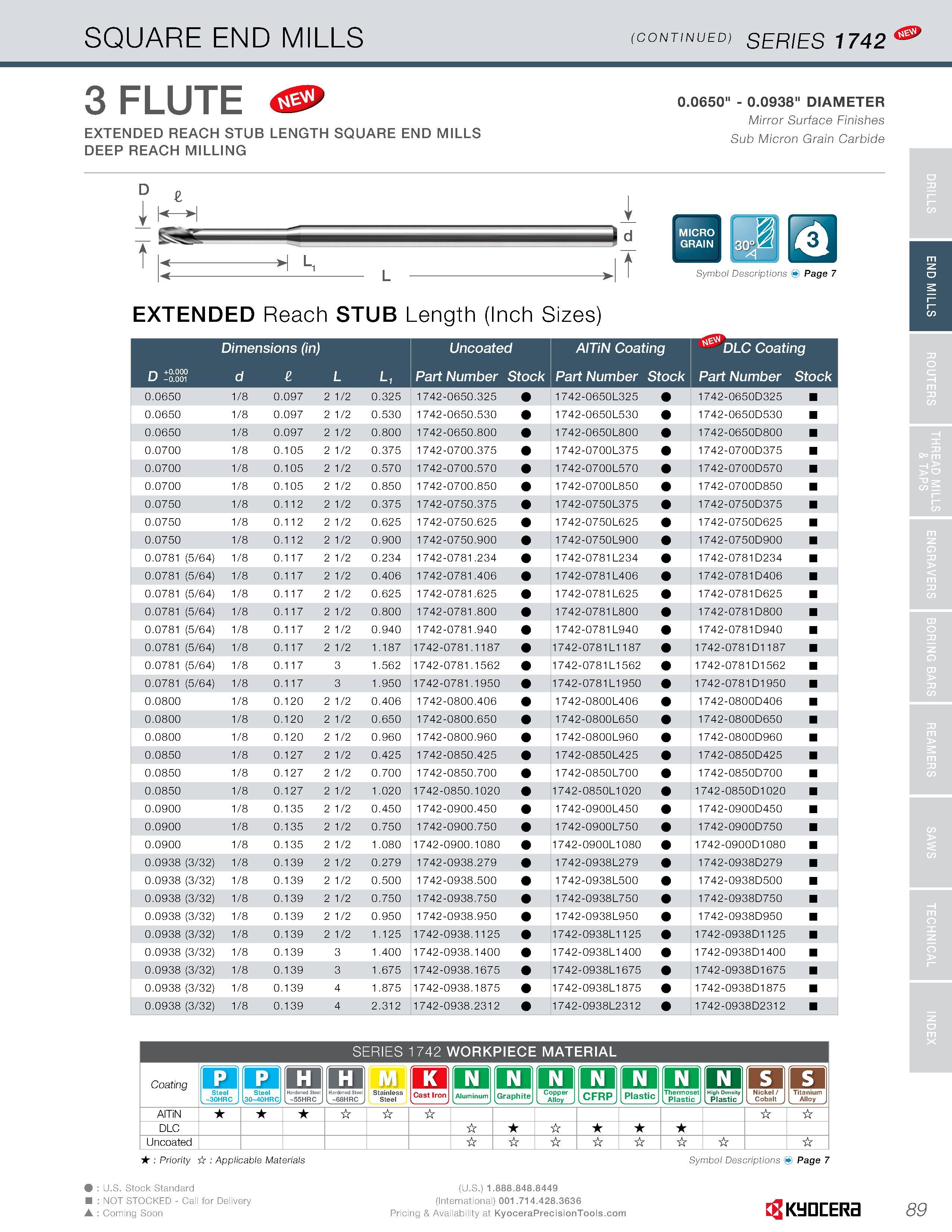

SQUARE END MILLS (CONTINUED) SERIES 1742 3 FLUTE EXTENDED REACH STUB LENGTH SQUARE END MILLS DEEP REACH MILLING 0.0650" - 0.0938" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide I t; -Jt Ji Symbol Descriptions Page 7 EXTENDED Reach STUB Length (Inch Sizes) Dimensions (in) L, Uncoated AITiN Coating Part Number Stock Part Number Stock DLC Coating Part Number Stock 0.0650 1/8 0.097 2 1/2 0.325 1742-0650.325 1742-0650L325 1742-0650D325 0.0650 1/8 0.097 2 1/2 0.530 1742-0650.530 1742-0650L530 1742-0650D530 0.0650 1/8 0.097 2 1/2 0.800 1742-0650.800 1742-0650L800 1742-0650D800 0.0700 1/8 0.105 2 1/2 0.375 1742-0700.375 1742-0700L375 1742-0700D375 0.0700 1/8 0.105 2 1/2 0.570 1742-0700.570 1742-0700L570 1742-0700D570 0.0700 1/8 0.105 2 1/2 0.850 1742-0700.850 1742-0700L850 1742-0700D850 0.0750 1/8 0.112 2 1/2 0.375 1742-0750.375 1742-0750L375 1742-0750D375 0.0750 1/8 0.112 2 1/2 0.625 1742-0750.625 1742-0750L625 1742-0750D625 0.0750 1/8 0.112 2 1/2 0.900 1742-0750.900 1742-0750L900 1742-0750D900 0.0781 (5/64) 1/8 0.117 2 1/2 0.234 1742-0781.234 1742-0781 L234 1742-0781D234 0.0781 (5/64) 1/8 0.117 2 1/2 0.406 1742-0781.406 1742-0781L406 1742-0781 D406 0.0781 (5/64) 1/8 0.117 2 1/2 0.625 1742-0781.625 1742-0781 L625 1742-0781D625 0.0781 (5/64) 1/8 0.117 2 1/2 0.800 1742-0781.800 1742-0781 L800 1742-0781 D800 0.0781 (5/64) 1/8 0.117 2 1/2 0.940 1742-0781.940 1742-0781 L940 1742-0781 D940 0.0781 (5/64) 1/8 0.117 2 1/2 1.187 1742-0781.1187 1742-0781L1187 1742-0781 D1187 0.0781 (5/64) 1/8 0.117 3 1.562 1742-0781.1562 1742-0781L1562 1 742-0781 D1 562 0.0781 (5/64) 1/8 0.117 3 1.950 1742-0781.1950 1742-0781L1950 1 742-0781 D1 950 0.0800 1/8 0.120 2 1/2 0.406 1742-0800.406 1742-0800L406 1742-0800D406 0.0800 1/8 0.120 2 1/2 0.650 1742-0800.650 1742-0800L650 1742-0800D650 0.0800 1/8 0.120 2 1/2 0.960 1742-0800.960 1742-0800L960 1742-0800D960 0.0850 1/8 0.127 2 1/2 0.425 1742-0850.425 1742-0850L425 1742-0850D425 0.0850 1/8 0.127 2 1/2 0.700 1742-0850.700 1742-0850L700 1742-0850D700 0.0850 1/8 0.127 2 1/2 1.020 1742-0850.1020 1742-0850L1020 1 742-0850D1 020 0.0900 1/8 0.135 2 1/2 0.450 1742-0900.450 1742-0900L450 1742-0900D450 0.0900 1/8 0.135 2 1/2 0.750 1742-0900.750 1742-0900L750 1742-0900D750 0.0900 1/8 0.135 2 1/2 1.080 1742-0900.1080 1742-0900L1080 1 742-0900D1 080 0.0938 (3/32) 1/8 0.139 2 1/2 0.279 1742-0938.279 1742-0938L279 1742-0938D279 0.0938 (3/32) 1/8 0.139 2 1/2 0.500 1742-0938.500 1742-0938L500 1742-0938D500 0.0938 (3/32) 1/8 0.139 2 1/2 0.750 1742-0938.750 1742-0938L750 1742-0938D750 0.0938 (3/32) 1/8 0.139 2 1/2 0.950 1742-0938.950 1742-0938L950 1742-0938D950 0.0938 (3/32) 1/8 0.139 2 1/2 1.125 1742-0938.1125 1742-0938L1125 1 742-0938D1125 0.0938 (3/32) 1/8 0.139 3 1.400 1742-0938.1400 1742-0938L1 400 1 742-0938D1 400 0.0938 (3/32) 1/8 0.139 3 1.675 1742-0938.1675 1742-0938L1 675 1 742-0938D1 675 0.0938 (3/32) 1/8 0.139 4 1.875 1742-0938.1875 1742-0938L1 875 1 742-0938D1 875 0.0938 (3/32) 1/8 0.139 4 2.312 1742-0938.2312 1742-0938L2312 1 742-0938D231 2 SERIES 1742 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I 'Is I j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated : Priority Applicable Materials U.S. Stock Standard NOT STOCKED - Call for Delivery Corning Soon Symbol Descriptions Page 7 KyDIIERa 89 END MILLS
