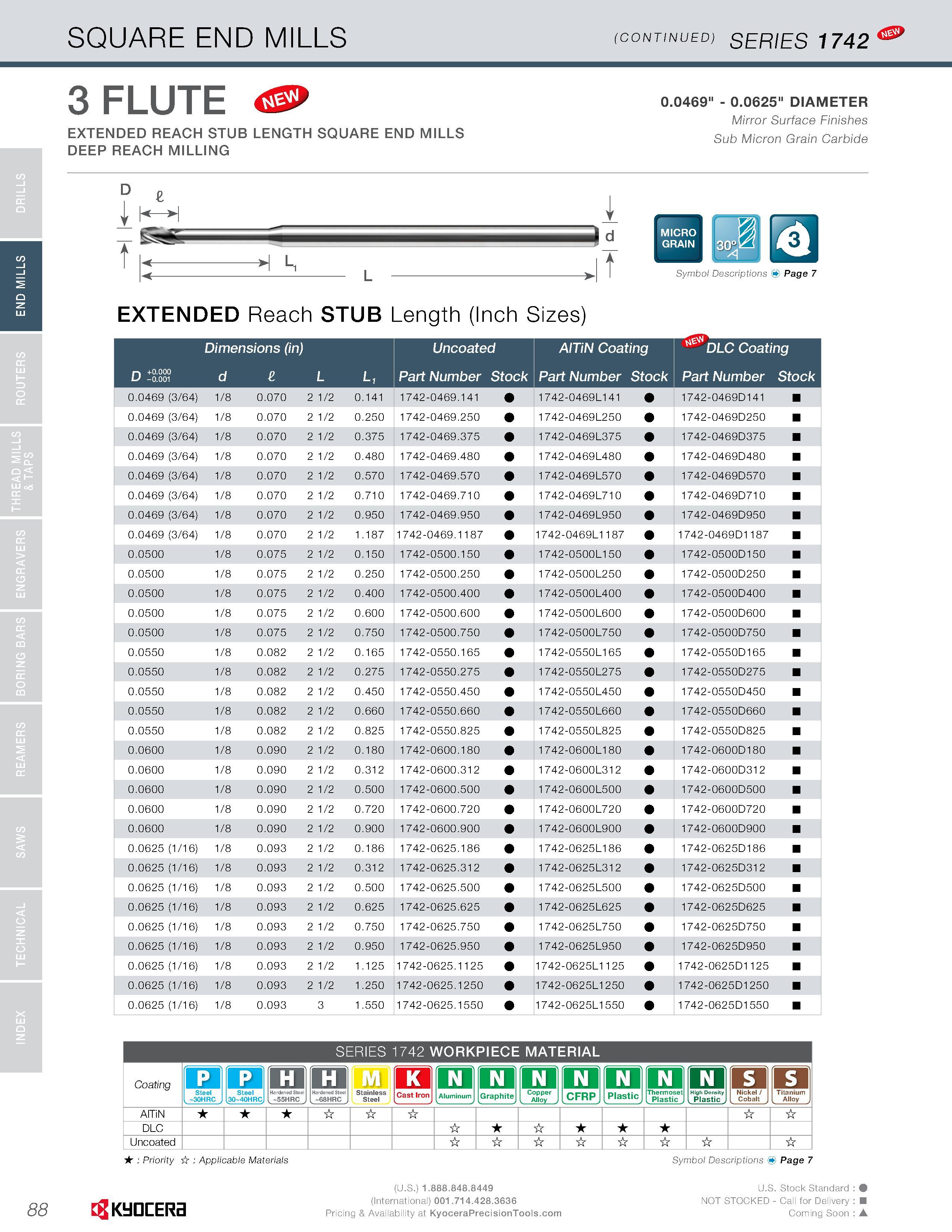

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1742 0.0469" - 0.0625" DIAMETER Mirror Surface Finishes EXTENDED REACH STUB LENGTH SQUARE END MILLS Sub Micmn Grain Carbide DEEP REACH MILLING th Ji -H L, Jt Symbol Descriptions Page 7 EXTENDED Reach STUB Length (Inch Sizes) Dimensions (in) L, Uncoated AITiN Coating Part Number Stock Part Number Stock DLC Coating Part Number Stock 0.0469 (3/64) 1/8 0.070 2 1/2 0.141 1742-0469.141 1 742-0469L1 41 1742-0469D141 0.0469 (3/64) 1/8 0.070 2 1/2 0.250 1742-0469.250 1742-0469L250 1742-0469D250 0.0469 (3/64) 1/8 0.070 2 1/2 0.375 1742-0469.375 1742-0469L375 1742-0469D375 0.0469 (3/64) 1/8 0.070 2 1/2 0.480 1742-0469.480 1742-0469L480 1742-0469D480 0.0469 (3/64) 1/8 0.070 2 1/2 0.570 1742-0469.570 1742-0469L570 1742-0469D570 0.0469 (3/64) 1/8 0.070 2 1/2 0.710 1742-0469.710 1 742-0469L71 0 1742-0469D71 0 0.0469 (3/64) 1/8 0.070 2 1/2 0.950 1742-0469.950 1742-0469L950 1742-0469D950 0.0469 (3/64) 1/8 0.070 2 1/2 1.187 1742-0469.1187 1742-0469L1187 1 742-0469D1187 0.0500 1/8 0.075 2 1/2 0.150 1742-0500.150 1 742-0500L1 50 1742-0500D150 0.0500 1/8 0.075 2 1/2 0.250 1742-0500.250 1742-0500L250 1742-0500D250 0.0500 1/8 0.075 2 1/2 0.400 1742-0500.400 1742-0500L400 1742-0500D400 0.0500 1/8 0.075 2 1/2 0.600 1742-0500.600 1742-0500L600 1742-0500D600 0.0500 1/8 0.075 2 1/2 0.750 1742-0500.750 1742-0500L750 1742-0500D750 0.0550 1/8 0.082 2 1/2 0.165 1742-0550.165 1 742-0550L1 65 1742-0550D165 0.0550 1/8 0.082 2 1/2 0.275 1742-0550.275 1742-0550L275 1742-0550D275 0.0550 1/8 0.082 2 1/2 0.450 1742-0550.450 1742-0550L450 1742-0550D450 0.0550 1/8 0.082 2 1/2 0.660 1742-0550.660 1742-0550L660 1742-0550D660 0.0550 1/8 0.082 2 1/2 0.825 1742-0550.825 1742-0550L825 1742-0550D825 0.0600 1/8 0.090 2 1/2 0.180 1742-0600.180 1 742-0600L1 80 1742-0600D180 0.0600 1/8 0.090 2 1/2 0.312 1742-0600.312 1742-0600L312 1742-0600D31 2 0.0600 1/8 0.090 2 1/2 0.500 1742-0600.500 1742-0600L500 1742-0600D500 0.0600 1/8 0.090 2 1/2 0.720 1742-0600.720 1742-0600L720 1742-0600D720 0.0600 1/8 0.090 2 1/2 0.900 1742-0600.900 1742-0600L900 1742-0600D900 0.0625 (1/16) 1/8 0.093 2 1/2 0.186 1742-0625.186 1 742-0625L1 86 1742-0625D186 0.0625 (1/16) 1/8 0.093 2 1/2 0.312 1742-0625.312 1742-0625L312 1742-0625D31 2 0.0625 (1/16) 1/8 0.093 2 1/2 0.500 1742-0625.500 1742-0625L500 1742-0625D500 0.0625 (1/16) 1/8 0.093 2 1/2 0.625 1742-0625.625 1742-0625L625 1742-0625D625 0.0625 (1/16) 1/8 0.093 2 1/2 0.750 1742-0625.750 1742-0625L750 1742-0625D750 0.0625 (1/16) 1/8 0.093 2 1/2 0.950 1742-0625.950 1742-0625L950 1742-0625D950 0.0625 (1/16) 1/8 0.093 2 1/2 1.125 1742-0625.1125 1742-0625L1125 1 742-0625D1125 0.0625 (1/16) 1/8 0.093 2 1/2 1.250 1742-0625.1250 1742-0625L1250 1 742-0625D1 250 0.0625 (1/16) 1/8 0.093 3 1.550 1742-0625.1550 1742-0625L1 550 1 742-0625D1 550 SERIES 1742 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H lul Stainless Steel K Q Aluminum Graphite Q Copper . Alloy CFRP Q Plastic Thermoset . Plastic . Plastic I s I is i' Hardened Steel I -68HRC J j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 88 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
