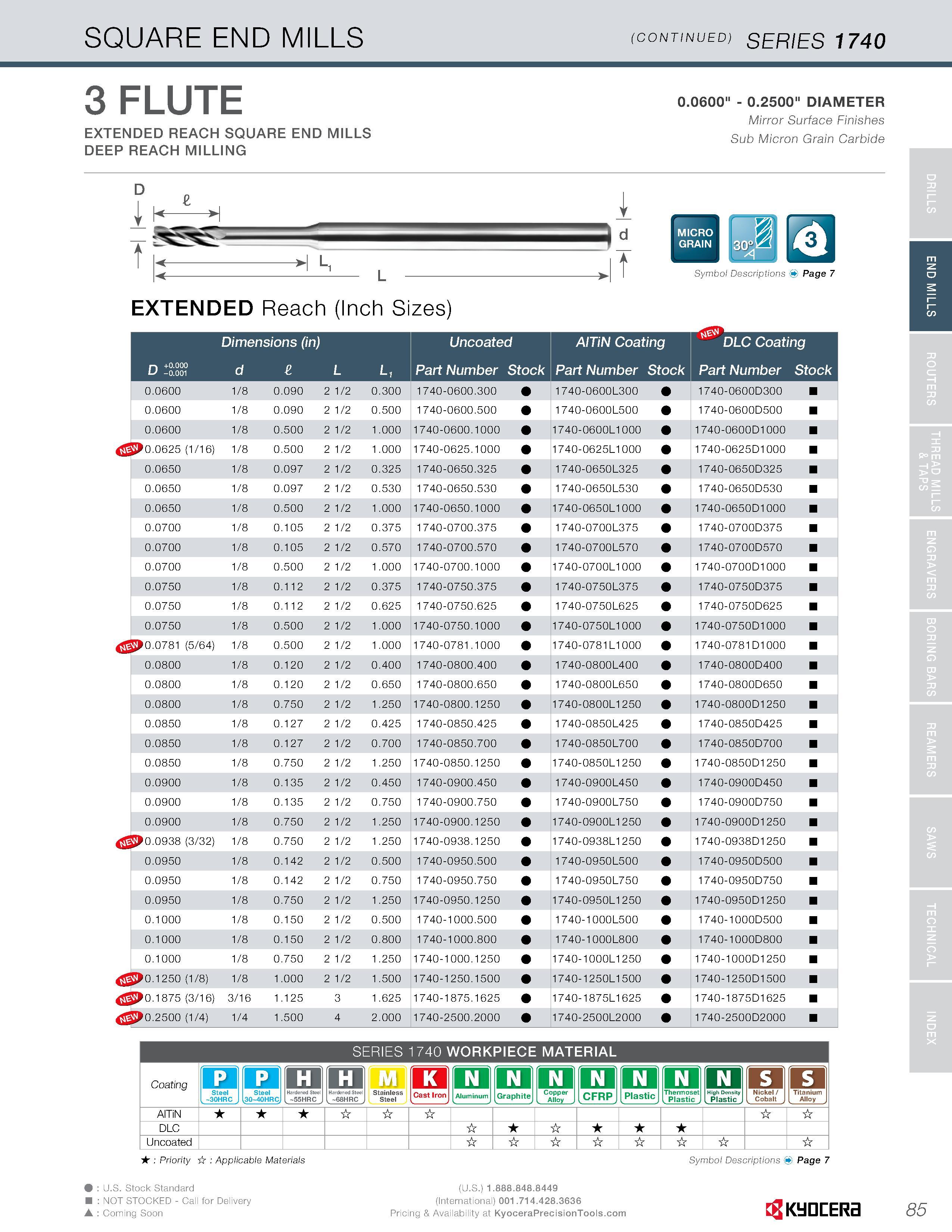

SQUARE END MILLS (CONTINUED) SERIES 1740 3 FLUTE EXTENDED REACH SQUARE END MILLS DEEP REACH MILLING 0.0600" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide I Jt Symbol Descriptions Page 7 EXTENDED Reach (Inch Sizes) +0.000 Lf -0.001 Dimensions (in) d e L L, Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0600 1/8 0.090 2 1/2 0.300 1740-0600.300 1740-0600L300 1740-0600D300 0.0600 1/8 0.090 2 1/2 0.500 1740-0600.500 1740-0600L500 1740-0600D500 0.0600 1/8 0.500 2 1/2 1.000 1740-0600.1000 1740-0600L1 000 1 740-0600D1 000 J>0.0625 (1/16) 1/8 0.500 2 1/2 1.000 1740-0625.1000 1740-0625L1 000 1 740-0625D1 000 0.0650 1/8 0.097 2 1/2 0.325 1740-0650.325 1740-0650L325 1740-0650D325 0.0650 1/8 0.097 2 1/2 0.530 1740-0650.530 1740-0650L530 1740-0650D530 0.0650 1/8 0.500 2 1/2 1.000 1740-0650.1000 1740-0650L1 000 1 740-0650D1 000 0.0700 1/8 0.105 2 1/2 0.375 1740-0700.375 1740-0700L375 1740-0700D375 0.0700 1/8 0.105 2 1/2 0.570 1740-0700.570 1740-0700L570 1740-0700D570 0.0700 1/8 0.500 2 1/2 1.000 1740-0700.1000 1740-0700L1 000 1 740-0700D1 000 0.0750 1/8 0.112 2 1/2 0.375 1740-0750.375 1740-0750L375 1740-0750D375 0.0750 1/8 0.112 2 1/2 0.625 1740-0750.625 1740-0750L625 1740-0750D625 0.0750 1/8 0.500 2 1/2 1.000 1740-0750.1000 1740-0750L1 000 1 740-0750D1 000 U>0.0781 (5/64) 1/8 0.500 2 1/2 1.000 1740-0781.1000 1740-0781 L1 000 1 740-0781 D1 000 0.0800 1/8 0.120 2 1/2 0.400 1740-0800.400 1740-0800L400 1740-0800D400 0.0800 1/8 0.120 2 1/2 0.650 1740-0800.650 1740-0800L650 1740-0800D650 0.0800 1/8 0.750 2 1/2 1.250 1740-0800.1250 1740-0800L1 250 1 740-0800D1 250 0.0850 1/8 0.127 2 1/2 0.425 1740-0850.425 1740-0850L425 1740-0850D425 0.0850 1/8 0.127 2 1/2 0.700 1740-0850.700 1740-0850L700 1740-0850D700 0.0850 1/8 0.750 2 1/2 1.250 1740-0850.1250 1740-0850L1 250 1 740-0850D1 250 0.0900 1/8 0.135 2 1/2 0.450 1740-0900.450 1740-0900L450 1740-0900D450 0.0900 1/8 0.135 2 1/2 0.750 1740-0900.750 1740-0900L750 1740-0900D750 0.0900 1/8 0.750 2 1/2 1.250 1740-0900.1250 1740-0900L1 250 1 740-0900D1 250 U>0.0938 (3/32) 1/8 0.750 2 1/2 1.250 1740-0938.1250 1740-0938L1 250 1 740-0938D1 250 0.0950 1/8 0.142 2 1/2 0.500 1740-0950.500 1740-0950L500 1740-0950D500 0.0950 1/8 0.142 2 1/2 0.750 1740-0950.750 1740-0950L750 1740-0950D750 0.0950 1/8 0.750 2 1/2 1.250 1740-0950.1250 1740-0950L1 250 1 740-0950D1 250 0.1000 1/8 0.150 2 1/2 0.500 1740-1000.500 1 740-1 000L500 1740-1000D500 0.1000 1/8 0.150 2 1/2 0.800 1740-1000.800 1 740-1 000L800 1740-1000D800 0.1000 1/8 0.750 2 1/2 1.250 1740-1000.1250 1740-1000L1 250 1 740-1000D1 250 J>0.1250 (1/8) 1/8 1.000 2 1/2 1.500 1740-1250.1500 1740-1250L1 500 1 740-1250D1 500 0.1875 (3/16) 3/16 1.125 3 1.625 1740-1875.1625 1740-1875L1 625 1 740-1875D1 625 0.2500 (1/4) 1/4 1.500 4 2.000 1740-2500.2000 1740-2500L2000 1740-2500D2000 SERIES 1740 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . O . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 85 END MILLS
