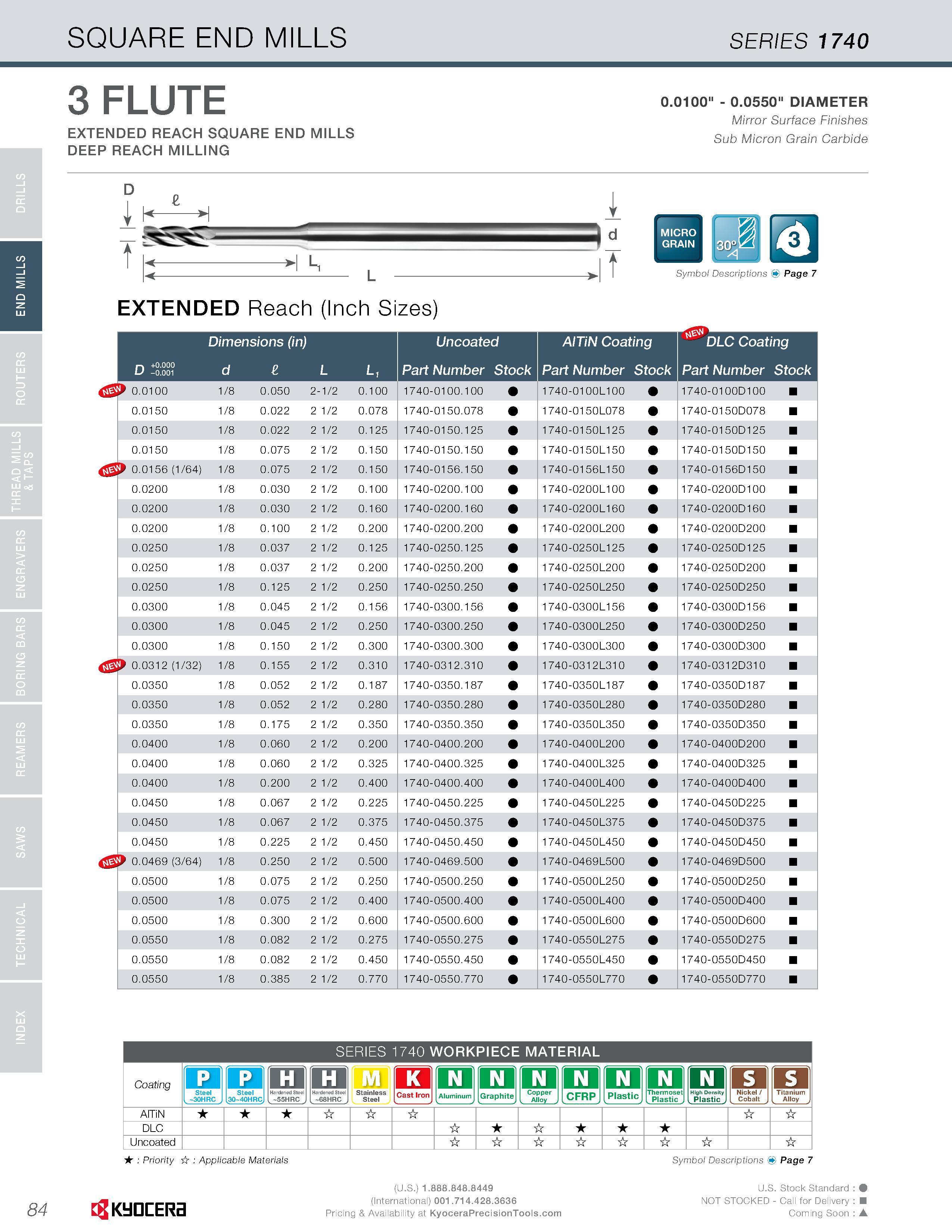

END MILLS SQUARE END MILLS SERIES 1740 3 FLUTE EXTENDED REACH SQUARE END MILLS DEEP REACH MILLING 0.0100" - 0.0550" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide -H L, Symbol Descriptions Page 7 EXTENDED Reach (Inch Sizes) r-k +0.000 U -0.001 Dimensions (in) d L Lt Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0100 1/8 0.050 2-1/2 0.100 1740-0100.100 1740-01 00L100 1740-01 00D100 0.0150 1/8 0.022 2 1/2 0.078 1740-0150.078 1740-01 50L078 1740-01 50D078 0.0150 1/8 0.022 2 1/2 0.125 1740-0150.125 1740-01 50L125 1740-01 50D125 0.0150 1/8 0.075 2 1/2 0.150 1740-0150.150 1740-01 50L150 1740-01 50D150 0.0156 (1/64) 1/8 0.075 2 1/2 0.150 1740-0156.150 1740-01 56L150 1740-01 56D150 0.0200 1/8 0.030 2 1/2 0.100 1740-0200.100 1740-0200L100 1740-0200D100 0.0200 1/8 0.030 2 1/2 0.160 1740-0200.160 1740-0200L160 1740-0200D160 0.0200 1/8 0.100 2 1/2 0.200 1740-0200.200 1740-0200L200 1740-0200D200 0.0250 1/8 0.037 2 1/2 0.125 1740-0250.125 1740-0250L125 1740-0250D125 0.0250 1/8 0.037 2 1/2 0.200 1740-0250.200 1740-0250L200 1740-0250D200 0.0250 1/8 0.125 2 1/2 0.250 1740-0250.250 1740-0250L250 1740-0250D250 0.0300 1/8 0.045 2 1/2 0.156 1740-0300.156 1740-0300L156 1740-0300D156 0.0300 1/8 0.045 2 1/2 0.250 1740-0300.250 1740-0300L250 1740-0300D250 0.0300 1/8 0.150 2 1/2 0.300 1740-0300.300 1740-0300L300 1740-0300D300 9 0.0312 (1/32) 1/8 0.155 2 1/2 0.310 1740-0312.310 1740-031 2L310 1740-031 2D31 0 0.0350 1/8 0.052 2 1/2 0.187 1740-0350.187 1740-0350L187 1740-0350D187 0.0350 1/8 0.052 2 1/2 0.280 1740-0350.280 1740-0350L280 1740-0350D280 0.0350 1/8 0.175 2 1/2 0.350 1740-0350.350 1740-0350L350 1740-0350D350 0.0400 1/8 0.060 2 1/2 0.200 1740-0400.200 1740-0400L200 1740-0400D200 0.0400 1/8 0.060 2 1/2 0.325 1740-0400.325 1740-0400L325 1740-0400D325 0.0400 1/8 0.200 2 1/2 0.400 1740-0400.400 1740-0400L400 1740-0400D400 0.0450 1/8 0.067 2 1/2 0.225 1740-0450.225 1740-0450L225 1740-0450D225 0.0450 1/8 0.067 2 1/2 0.375 1740-0450.375 1740-0450L375 1740-0450D375 0.0450 1/8 0.225 2 1/2 0.450 1740-0450.450 1740-0450L450 1740-0450D450 9 0.0469 (3/64) 1/8 0.250 2 1/2 0.500 1740-0469.500 1740-0469L500 1740-0469D500 0.0500 1/8 0.075 2 1/2 0.250 1740-0500.250 1740-0500L250 1740-0500D250 0.0500 1/8 0.075 2 1/2 0.400 1740-0500.400 1740-0500L400 1740-0500D400 0.0500 1/8 0.300 2 1/2 0.600 1740-0500.600 1740-0500L600 1740-0500D600 0.0550 1/8 0.082 2 1/2 0.275 1740-0550.275 1740-0550L275 1740-0550D275 0.0550 1/8 0.082 2 1/2 0.450 1740-0550.450 1740-0550L450 1740-0550D450 0.0550 1/8 0.385 2 1/2 0.770 1740-0550.770 1740-0550L770 1740-0550D770 SERIES 1740 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H £3 Stainless Steel K Q Aluminum Graphite Q Copper . Alloy CFRP Q Plastic Thermoset . Plastic . Plastic 1 s 1 is i1 Hardened Steel -68HRC J j Cast IronJ Nickel/ Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 84 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
