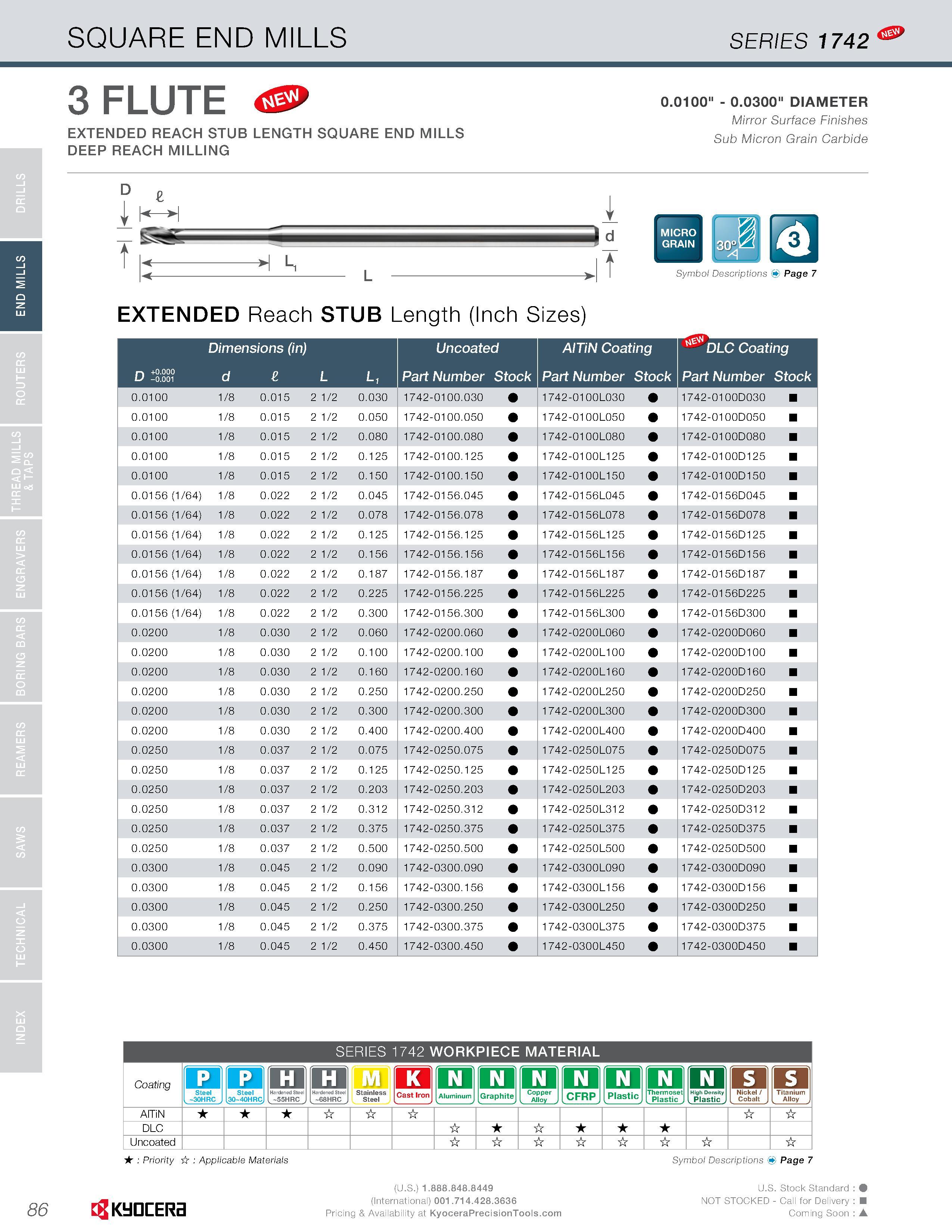

88 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.86

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 86 0088 ENG Lab2u

END MILLS SQUARE END MILLS 0.0100" - 0.0300" DIAMETER Mirror Surface Finishes EXTENDED REACH STUB LENGTH SQUARE END MILLS Sub Micmn Grain Carbide DEEP REACH MILLING th Ji -H L, jt Symbol Descriptions Page 7 EXTENDED Reach STUB Length (Inch Sizes) Dimensions (in) L, Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0100 1/8 0.015 2 1/2 0.030 1742-0100.030 1742-01 00L030 1742-01 00D030 0.0100 1/8 0.015 2 1/2 0.050 1742-0100.050 1742-01 00L050 1742-01 00D050 0.0100 1/8 0.015 2 1/2 0.080 1742-0100.080 1742-01 00L080 1742-01 00D080 0.0100 1/8 0.015 2 1/2 0.125 1742-0100.125 1742-01 00L125 1742-01 00D125 0.0100 1/8 0.015 2 1/2 0.150 1742-0100.150 1742-01 00L150 1742-01 00D150 0.0156 (1/64) 1/8 0.022 2 1/2 0.045 1742-0156.045 1742-01 56L045 1742-01 56D045 0.0156 (1/64) 1/8 0.022 2 1/2 0.078 1742-0156.078 1742-01 56L078 1742-01 56D078 0.0156 (1/64) 1/8 0.022 2 1/2 0.125 1742-0156.125 1742-01 56L125 1742-01 56D125 0.0156 (1/64) 1/8 0.022 2 1/2 0.156 1742-0156.156 1742-01 56L156 1742-01 56D156 0.0156 (1/64) 1/8 0.022 2 1/2 0.187 1742-0156.187 1742-01 56L187 1742-01 56D187 0.0156 (1/64) 1/8 0.022 2 1/2 0.225 1742-0156.225 1742-01 56L225 1742-0156D225 0.0156 (1/64) 1/8 0.022 2 1/2 0.300 1742-0156.300 1742-01 56L300 1742-01 56D300 0.0200 1/8 0.030 2 1/2 0.060 1742-0200.060 1742-0200L060 1742-0200D060 0.0200 1/8 0.030 2 1/2 0.100 1742-0200.100 1742-0200L100 1742-0200D100 0.0200 1/8 0.030 2 1/2 0.160 1742-0200.160 1742-0200L160 1742-0200D160 0.0200 1/8 0.030 2 1/2 0.250 1742-0200.250 1742-0200L250 1742-0200D250 0.0200 1/8 0.030 2 1/2 0.300 1742-0200.300 1742-0200L300 1742-0200D300 0.0200 1/8 0.030 2 1/2 0.400 1742-0200.400 1742-0200L400 1742-0200D400 0.0250 1/8 0.037 2 1/2 0.075 1742-0250.075 1742-0250L075 1742-0250D075 0.0250 1/8 0.037 2 1/2 0.125 1742-0250.125 1742-0250L125 1742-0250D125 0.0250 1/8 0.037 2 1/2 0.203 1742-0250.203 1742-0250L203 1742-0250D203 0.0250 1/8 0.037 2 1/2 0.312 1742-0250.312 1742-0250L312 1742-0250D31 2 0.0250 1/8 0.037 2 1/2 0.375 1742-0250.375 1742-0250L375 1742-0250D375 0.0250 1/8 0.037 2 1/2 0.500 1742-0250.500 1742-0250L500 1742-0250D500 0.0300 1/8 0.045 2 1/2 0.090 1742-0300.090 1742-0300L090 1742-0300D090 0.0300 1/8 0.045 2 1/2 0.156 1742-0300.156 1742-0300L156 1742-0300D156 0.0300 1/8 0.045 2 1/2 0.250 1742-0300.250 1742-0300L250 1742-0300D250 0.0300 1/8 0.045 2 1/2 0.375 1742-0300.375 1742-0300L375 1742-0300D375 0.0300 1/8 0.045 2 1/2 0.450 1742-0300.450 1742-0300L450 1742-0300D450 SERIES 1742 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H lul Stainless Steel K Q Aluminum Graphite Q Copper . Alloy CFRP Q Plastic Thermoset . Plastic . Plastic I s I is i' Hardened Steel I -68HRC J j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 86 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
