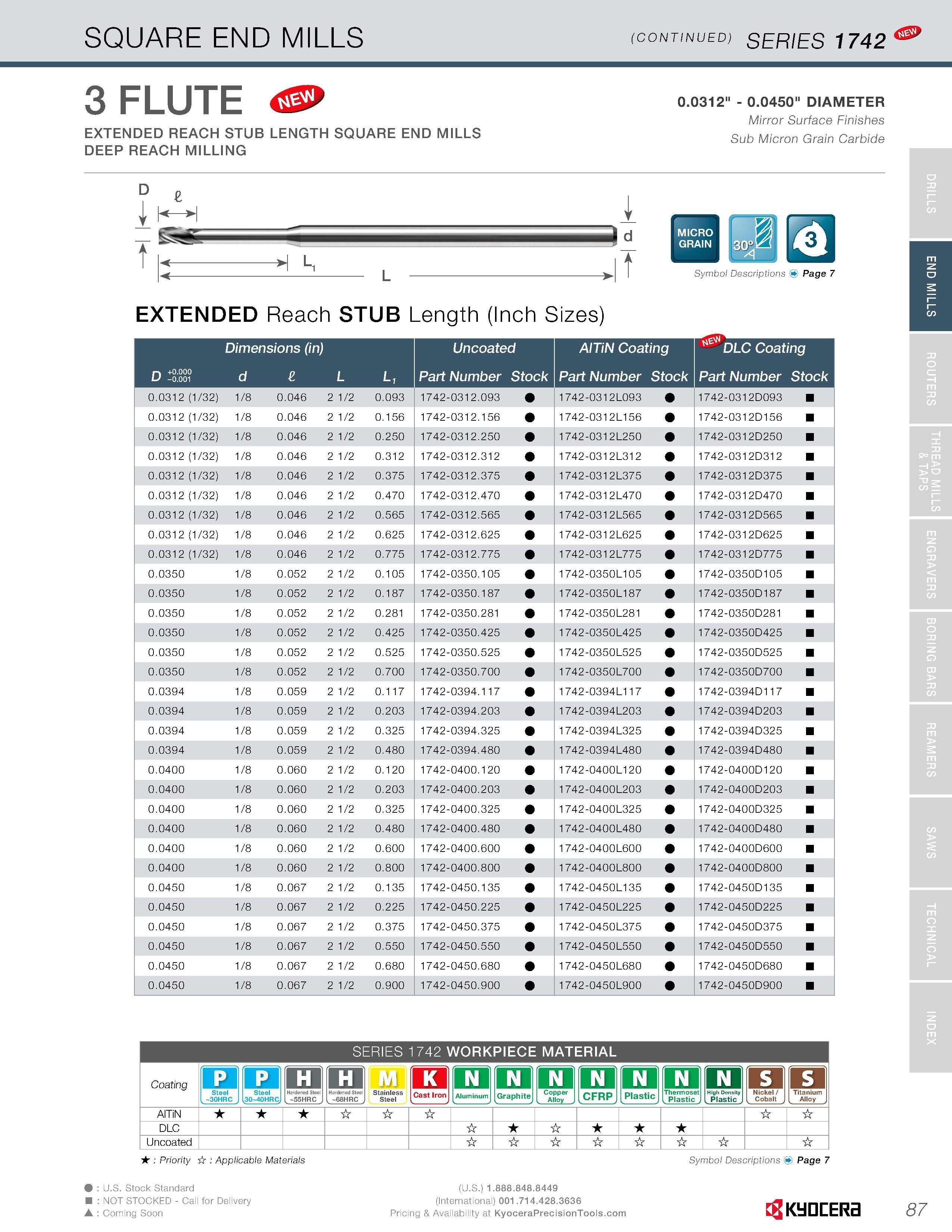

SQUARE END MILLS (CONTINUED) SERIES 1742 3 FLUTE EXTENDED REACH STUB LENGTH SQUARE END MILLS DEEP REACH MILLING 0.0312" - 0.0450" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Symbol Descriptions Page 7 EXTENDED Reach STUB Length (Inch Sizes) r +0.000 u -0.001 Dimensions (in) d e L L, Uncoated Part Number Stock AITiN Coating Part Number Stock 516 DLC Coating Part Number Stock 0.0312 (1/32) 1/8 0.046 2 1/2 0.093 1742-0312.093 1 742-031 2L093 1742-031 2D093 0.0312 (1/32) 1/8 0.046 2 1/2 0.156 1742-0312.156 1 742-031 2L156 1742-031 2D156 0.0312 (1/32) 1/8 0.046 2 1/2 0.250 1742-0312.250 1742-0312L250 1742-031 2D250 0.0312 (1/32) 1/8 0.046 2 1/2 0.312 1742-0312.312 1742-031 2L312 1742-031 2D31 2 0.0312 (1/32) 1/8 0.046 2 1/2 0.375 1742-0312.375 1742-0312L375 1742-031 2D375 0.0312 (1/32) 1/8 0.046 2 1/2 0.470 1742-0312.470 1742-0312L470 1742-031 2D470 0.0312 (1/32) 1/8 0.046 2 1/2 0.565 1742-0312.565 1 742-031 2L565 1742-031 2D565 0.0312 (1/32) 1/8 0.046 2 1/2 0.625 1742-0312.625 1742-0312L625 1742-031 2D625 0.0312 (1/32) 1/8 0.046 2 1/2 0.775 1742-0312.775 1742-031 2L775 1742-031 2D775 0.0350 1/8 0.052 2 1/2 0.105 1742-0350.105 1 742-0350L105 1742-0350D105 0.0350 1/8 0.052 2 1/2 0.187 1742-0350.187 1 742-0350L187 1742-0350D187 0.0350 1/8 0.052 2 1/2 0.281 1742-0350.281 1742-0350L281 1742-0350D281 0.0350 1/8 0.052 2 1/2 0.425 1742-0350.425 1742-0350L425 1742-0350D425 0.0350 1/8 0.052 2 1/2 0.525 1742-0350.525 1742-0350L525 1742-0350D525 0.0350 1/8 0.052 2 1/2 0.700 1742-0350.700 1742-0350L700 1742-0350D700 0.0394 1/8 0.059 2 1/2 0.117 1742-0394.117 1 742-0394L11 7 1742-0394D11 7 0.0394 1/8 0.059 2 1/2 0.203 1742-0394.203 1742-0394L203 1742-0394D203 0.0394 1/8 0.059 2 1/2 0.325 1742-0394.325 1742-0394L325 1742-0394D325 0.0394 1/8 0.059 2 1/2 0.480 1742-0394.480 1742-0394L480 1742-0394D480 0.0400 1/8 0.060 2 1/2 0.120 1742-0400.120 1 742-0400L120 1742-0400D120 0.0400 1/8 0.060 2 1/2 0.203 1742-0400.203 1742-0400L203 1742-0400D203 0.0400 1/8 0.060 2 1/2 0.325 1742-0400.325 1742-0400L325 1742-0400D325 0.0400 1/8 0.060 2 1/2 0.480 1742-0400.480 1742-0400L480 1742-0400D480 0.0400 1/8 0.060 2 1/2 0.600 1742-0400.600 1742-0400L600 1742-0400D600 0.0400 1/8 0.060 2 1/2 0.800 1742-0400.800 1742-0400L800 1742-0400D800 0.0450 1/8 0.067 2 1/2 0.135 1742-0450.135 1 742-0450L135 1742-0450D135 0.0450 1/8 0.067 2 1/2 0.225 1742-0450.225 1742-0450L225 1742-0450D225 0.0450 1/8 0.067 2 1/2 0.375 1742-0450.375 1742-0450L375 1742-0450D375 0.0450 1/8 0.067 2 1/2 0.550 1742-0450.550 1742-0450L550 1742-0450D550 0.0450 1/8 0.067 2 1/2 0.680 1742-0450.680 1742-0450L680 1742-0450D680 0.0450 1/8 0.067 2 1/2 0.900 1742-0450.900 1742-0450L900 1742-0450D900 SERIES 1742 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 87 END MILLS
