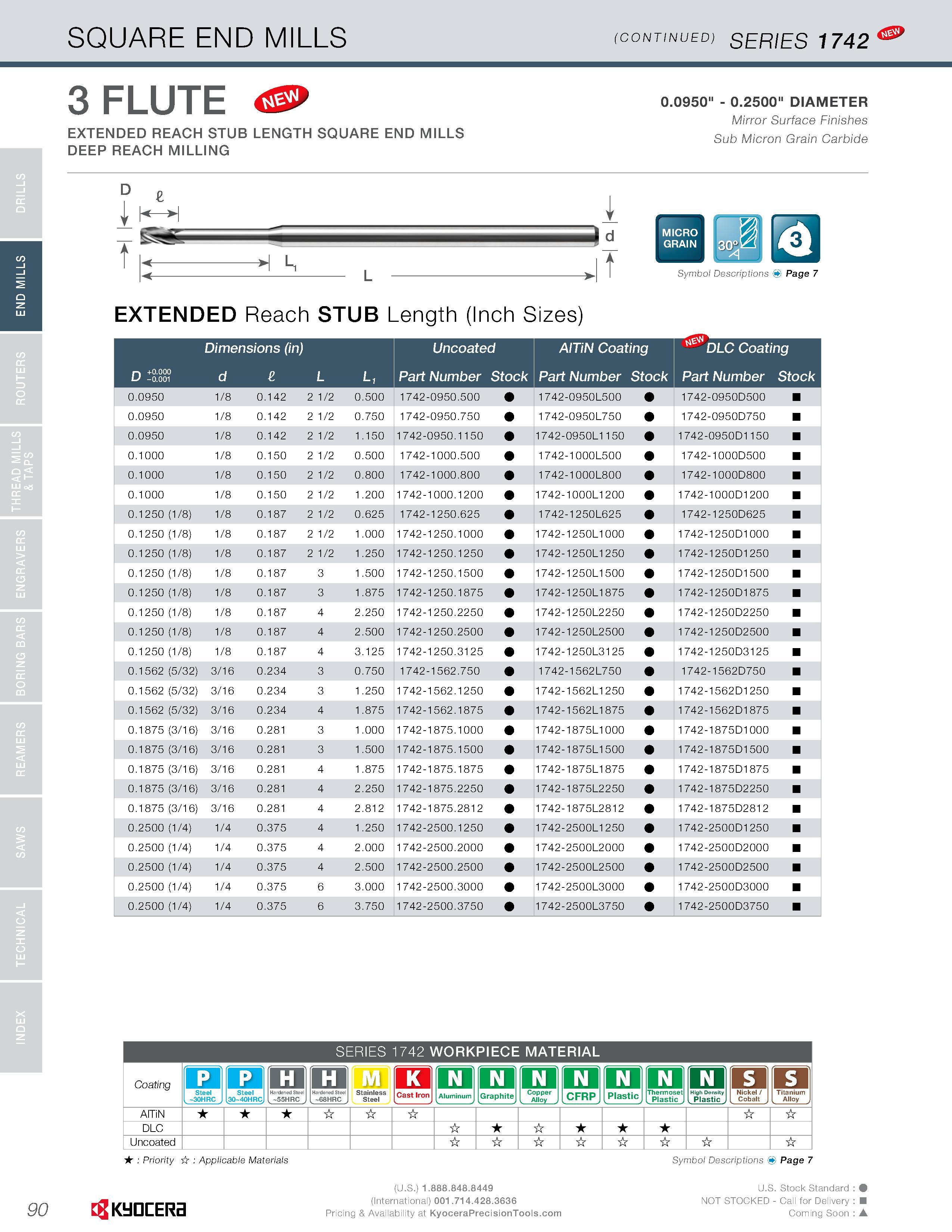

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1742 0.0950" - 0.2500" DIAMETER Mirror Surface Finishes EXTENDED REACH STUB LENGTH SQUARE END MILLS Sub Micmn Grain Carbide DEEP REACH MILLING th Ji -H L, Jt Symbol Descriptions Page 7 EXTENDED Reach STUB Length (Inch Sizes) Dimensions (in) L, Uncoated AITiN Coating Part Number Stock Part Number Stock DLC Coating Part Number Stock 0.0950 1/8 0.142 2 1/2 0.500 1742-0950.500 1742-0950L500 1742-0950D500 0.0950 1/8 0.142 2 1/2 0.750 1742-0950.750 1742-0950L750 1742-0950D750 0.0950 1/8 0.142 2 1/2 1.150 1742-0950.1150 1742-0950L1150 1 742-0950D1150 0.1000 1/8 0.150 2 1/2 0.500 1742-1000.500 1742-1 000L500 1742-1000D500 0.1000 1/8 0.150 2 1/2 0.800 1742-1000.800 1742-1 000L800 1742-1000D800 0.1000 1/8 0.150 2 1/2 1.200 1742-1000.1200 1742-1000L1200 1 742-1000D1 200 0.1250 (1/8) 1/8 0.187 2 1/2 0.625 1742-1250.625 1 742-1 250L625 1742-1250D625 0.1250 (1/8) 1/8 0.187 2 1/2 1.000 1742-1250.1000 1742-1250L1 000 1 742-1250D1 000 0.1250 (1/8) 1/8 0.187 2 1/2 1.250 1742-1250.1250 1742-1250L1250 1 742-1250D1 250 0.1250 (1/8) 1/8 0.187 3 1.500 1742-1250.1500 1742-1250L1500 1 742-1250D1 500 0.1250 (1/8) 1/8 0.187 3 1.875 1742-1250.1875 1742-1250L1875 1 742-1250D1 875 0.1250 (1/8) 1/8 0.187 4 2.250 1742-1250.2250 1742-1250L2250 1 742-1250D2250 0.1250 (1/8) 1/8 0.187 4 2.500 1742-1250.2500 1742-1250L2500 1 742-1250D2500 0.1250 (1/8) 1/8 0.187 4 3.125 1742-1250.3125 1742-1250L3125 1 742-1250D3125 0.1562 (5/32) 3/16 0.234 3 0.750 1742-1562.750 1 742-1 562L750 1742-1562D750 0.1562 (5/32) 3/16 0.234 3 1.250 1742-1562.1250 1742-1562L1 250 1 742-1562D1 250 0.1562 (5/32) 3/16 0.234 4 1.875 1742-1562.1875 1742-1562L1875 1 742-1562D1 875 0.1875 3/1 6) 3/16 0.281 3 1.000 1742-1875.1000 1742-1875L1000 1 742-1875D1 000 0.1875 3/1 6) 3/16 0.281 3 1.500 1742-1875.1500 1742-1875L1500 1 742-1875D1 500 0.1875 3/1 6) 3/16 0.281 4 1.875 1742-1875.1875 1742-1875L1875 1 742-1875D1 875 0.1875 3/1 6) 3/16 0.281 4 2.250 1742-1875.2250 1742-1875L2250 1 742-1875D2250 0.1875 3/1 6) 3/16 0.281 4 2.812 1742-1875.2812 1742-1875L2812 1 742-1875D281 2 0.2500 (1/4) 1/4 0.375 4 1.250 1742-2500.1250 1742-2500L1250 1 742-2500D1 250 0.2500 (1/4) 1/4 0.375 4 2.000 1742-2500.2000 1742-2500L2000 1742-2500D2000 0.2500 (1/4) 1/4 0.375 4 2.500 1742-2500.2500 1742-2500L2500 1742-2500D2500 0.2500 (1/4) 1/4 0.375 6 3.000 1742-2500.3000 1742-2500L3000 1742-2500D3000 0.2500 (1/4) 1/4 0.375 6 3.750 1742-2500.3750 1742-2500L3750 1742-2500D3750 SERIES 1742 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H lul Stainless Steel K Q Aluminum Graphite Q Copper . Alloy CFRP Q Plastic Thermoset . Plastic . Plastic 1 s 1 is i1 Hardened Steel -68HRC J j Cast Ironj Nickel/ Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 90 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
