95 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.93

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 93 0095 ENG Lab2u

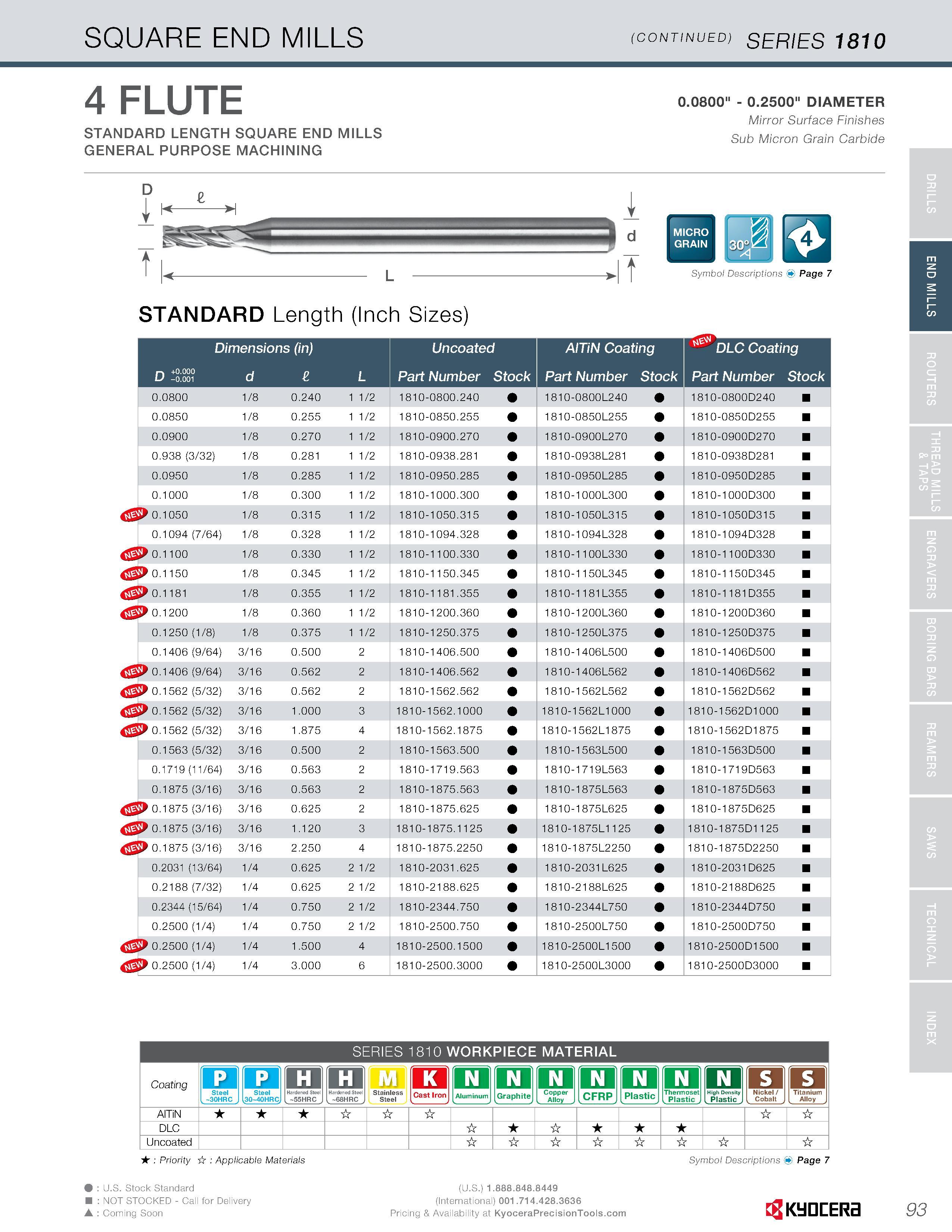

SQUARE END MILLS (CONTINUED) SERIES 1810 4 FLUTE STANDARD LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.0800" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) Dimensions (in) +0.000 _i n O -0.001 u L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0800 1/8 0.240 1 1/2 1810-0800.240 1 810-0800L240 1 81 0-0800D240 0.0850 1/8 0.255 1 1/2 1810-0850.255 1 810-0850L255 1 81 0-0850D255 0.0900 1/8 0.270 1 1/2 1810-0900.270 1 810-0900L270 1 81 0-0900D270 0.938 (3/32) 1/8 0.281 1 1/2 1810-0938.281 1 810-0938L281 1 81 0-0938D281 0.0950 1/8 0.285 1 1/2 1810-0950.285 1 810-0950L285 1 81 0-0950D285 0.1000 1/8 0.300 1 1/2 1810-1000.300 1810-1000L300 1810-1000D300 0.1050 1/8 0.315 1 1/2 1810-1050.315 1810-1 050L315 1810-1 050D315 0.1094 (7/64) 1/8 0.328 1 1/2 1810-1094.328 1810-1094L328 1810-1094D328 0.1100 1/8 0.330 1 1/2 1810-1100.330 1810-1100L330 1810-1100D330 9 0.1150 1/8 0.345 1 1/2 1810-1150.345 1810-1150L345 1810-1150D345 0.1181 1/8 0.355 1 1/2 1810-1181.355 1810-1181 L355 1810-1181 D355 9 0.1200 1/8 0.360 1 1/2 1810-1200.360 1810-1200L360 1810-1200D360 0.1250 (1/8) 1/8 0.375 1 1/2 1810-1250.375 1810-1250L375 1810-1250D375 0.1406 (9/64) 3/16 0.500 2 1810-1406.500 1810-1406L500 1810-1406D500 0.1406 (9/64) 3/16 0.562 2 1810-1406.562 1810-1406L562 1810-1406D562 0.1562 (5/32) 3/16 0.562 2 1810-1562.562 1810-1562L562 1810-1562D562 0.1562 (5/32) 3/16 1.000 3 1810-1562.1000 1810-1 562L1 000 1810-1 562D1 000 0.1562 (5/32) 3/16 1.875 4 1810-1562.1875 1810-1 562L1 875 1810-1 562D1 875 0.1563 (5/32) 3/16 0.500 2 1810-1563.500 1810-1563L500 1810-1563D500 0.1719 (11/64) 3/16 0.563 2 1810-1719.563 1810-1719L563 1 81 0-1 71 9D563 0.1875 (3/16) 3/16 0.563 2 1810-1875.563 1810-1875L563 1810-1875D563 9 0.1875 (3/16) 3/16 0.625 2 1810-1875.625 1810-1875L625 1810-1875D625 0.1875 (3/16) 3/16 1.120 3 1810-1875.1125 1810-1 875L11 25 1810-1 875D11 25 S> 0.1875 (3/16) 3/16 2.250 4 1810-1875.2250 1810-1875L2250 1810-1875D2250 0.2031 (13/64) 1/4 0.625 2 1/2 1810-2031.625 1810-2031L625 181 0-2031 D625 0.2188 (7/32) 1/4 0.625 2 1/2 1810-2188.625 1810-21 88L625 1 81 0-2188D625 0.2344 (15/64) 1/4 0.750 2 1/2 1810-2344.750 1810-2344L750 1 81 0-2344D750 0.2500 (1/4) 1/4 0.750 2 1/2 1810-2500.750 1810-2500L750 1 81 0-2500D750 9 0.2500 (1/4) 1/4 1.500 4 1810-2500.1500 181 0-2500L1 500 1 81 0-2500D1 500 S> 0.2500 (1/4) 1/4 3.000 6 1810-2500.3000 1810-2500L3000 1 81 0-2500D3000 SERIES 1810 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 93 END MILLS
