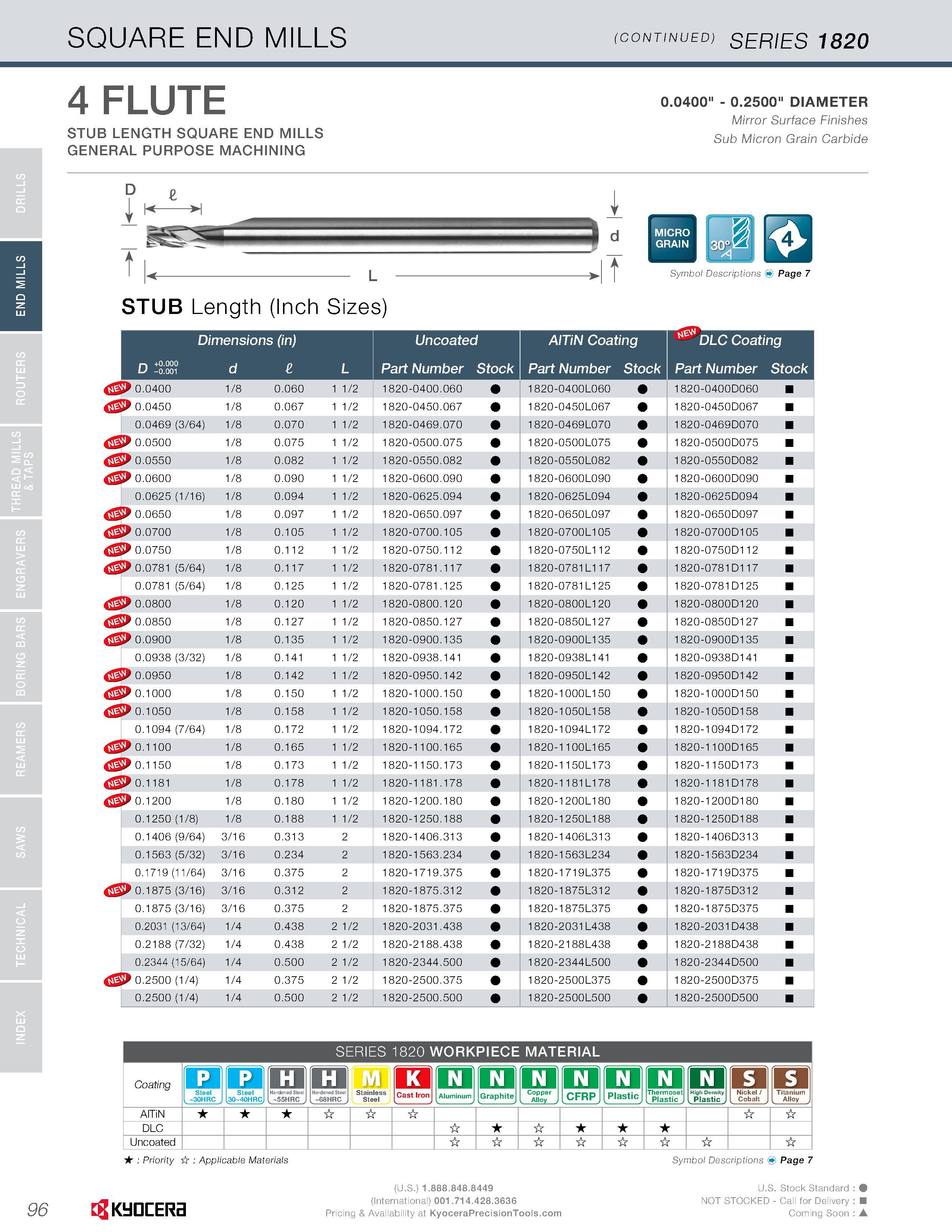

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1820 4 FLUTE STUB LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.0400" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STUB Length (Inch Sizes) Dimensions (in) . i 3 -It Uncoated AITiN Coating Symbol Descriptions Page 7 DLC Coating r- +0.000 u -0.001 d z L Part Number Stock Part Number Stock Part Number Stock > 0.0400 1/8 0.060 1 1/2 1820-0400.060 1820-0400L060 1820-0400D060 > 0.0450 1/8 0.067 1 1/2 1820-0450.067 1820-0450L067 1820-0450D067 0.0469 (3/64) 1/8 0.070 1 1/2 1820-0469.070 1820-0469L070 1820-0469D070 > 0.0500 1/8 0.075 1 1/2 1820-0500.075 1820-0500L075 1820-0500D075 > 0.0550 1/8 0.082 1 1/2 1820-0550.082 1820-0550L082 1820-0550D082 > 0.0600 1/8 0.090 1 1/2 1820-0600.090 1820-0600L090 1820-0600D090 0.0625 (1/16) 1/8 0.094 1 1/2 1820-0625.094 1820-0625L094 1820-0625D094 > 0.0650 1/8 0.097 1 1/2 1820-0650.097 1820-0650L097 1820-0650D097 > 0.0700 1/8 0.105 1 1/2 1820-0700.105 1 820-0700L1 05 1 820-0700D1 05 > 0.0750 1/8 0.112 1 1/2 1820-0750.112 1 820-0750L112 1 820-0750D112 > 0.0781 (5/64) 1/8 0.117 1 1/2 1820-0781.117 1 820-0781 L117 1 820-0781 D117 0.0781 (5/64) 1/8 0.125 1 1/2 1820-0781.125 1 820-0781 L1 25 1 820-0781 D1 25 > 0.0800 1/8 0.120 1 1/2 1820-0800.120 1 820-0800L1 20 1 820-0800D1 20 > 0.0850 1/8 0.127 1 1/2 1820-0850.127 1 820-0850L1 27 1 820-0850D1 27 > 0.0900 1/8 0.135 1 1/2 1820-0900.135 1 820-0900L1 35 1 820-0900D1 35 0.0938 (3/32) 1/8 0.141 1 1/2 1820-0938.141 1 820-0938L1 41 1 820-0938D1 41 0.0950 1/8 0.142 1 1/2 1820-0950.142 1 820-0950L1 42 1 820-0950D1 42 0.1000 1/8 0.150 1 1/2 1820-1000.150 1 820-1 000L1 50 1 820-1 000D1 50 0.1050 1/8 0.158 1 1/2 1820-1050.158 1 820-1 050L1 58 1 820-1 050D1 58 0.1094 (7/64) 1/8 0.172 1 1/2 1820-1094.172 1 820-1 094L1 72 1 820-1 094D1 72 0.1100 1/8 0.165 1 1/2 1820-1100.165 1820-1100L1 65 1820-1100D165 0.1150 1/8 0.173 1 1/2 1820-1150.173 1820-1150L1 73 1820-1150D173 0.1181 1/8 0.178 1 1/2 1820-1181.178 1 820-11 81 L1 78 1 820-1181 D1 78 0.1200 1/8 0.180 1 1/2 1820-1200.180 1 820-1 200L1 80 1 820-1 200D1 80 0.1250 (1/8) 1/8 0.188 1 1/2 1820-1250.188 1 820-1 250L1 88 1 820-1 250D1 88 0.1406 (9/64) 3/16 0.313 2 1820-1406.313 1 820-1 406L313 1 820-1 406D313 0.1563 (5/32) 3/16 0.234 2 1820-1563.234 1 820-1 563L234 1 820-1 563D234 0.1719 (11/64) 3/16 0.375 2 1820-1719.375 1 820-1 719L375 1820-1 71 9D375 0.1875 (3/16) 3/16 0.312 2 1820-1875.312 1 820-1 875L312 1 820-1 875D312 0.1875 (3/16) 3/16 0.375 2 1820-1875.375 1 820-1 875L375 1 820-1 875D375 0.2031 (13/64) 1/4 0.438 2 1/2 1820-2031.438 1820-2031 L438 1 820-2031 D438 0.2188 (7/32) 1/4 0.438 2 1/2 1820-2188.438 1820-21 88L438 1 820-2188D438 0.2344 (15/64) 1/4 0.500 2 1/2 1820-2344.500 1820-2344L500 1820-2344D500 0.2500 (1/4) 1/4 0.375 2 1/2 1820-2500.375 1820-2500L375 1820-2500D375 0.2500 (1/4) 1/4 0.500 2 1/2 1820-2500.500 1820-2500L500 1820-2500D500 SERIES 1820 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H Stainless Steel K Q Aluminum Graphite Q Copper . Alloy CFRP Q Plastic Thermoset . Plastic . Plastic I s I is i' Hardened Steel I -68HRC J j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 96 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
