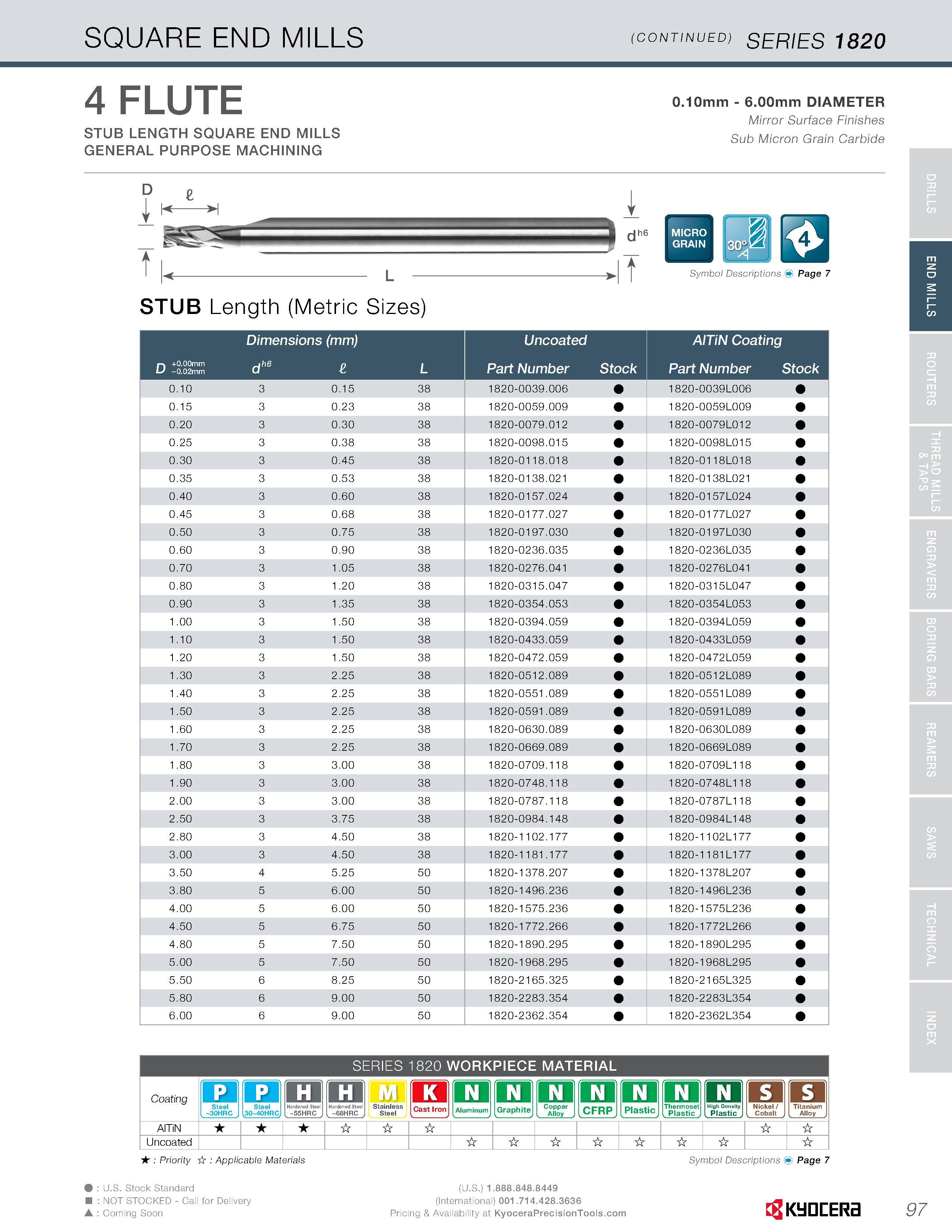

99 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.97

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 97 0099 ENG Lab2u

SQUARE END MILLS (CONTINUED) SERIES 1820 4 FLUTE STUB LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.10mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STUB Length (Metric Sizes) i 5 d- -It m Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating PI -t-O.OQmm LJ -0.02mm dh6 L Part Number Stock Part Number Stock 0.10 3 0.15 38 1820-0039.006 1820-0039L006 0.15 3 0.23 38 1820-0059.009 1820-0059L009 0.20 3 0.30 38 1820-0079.012 1820-0079L012 0.25 3 0.38 38 1820-0098.015 1820-0098L015 0.30 3 0.45 38 1820-0118.018 1820-0118L018 0.35 3 0.53 38 1820-0138.021 1820-01 38L021 0.40 3 0.60 38 1820-0157.024 1820-01 57L024 0.45 3 0.68 38 1820-0177.027 1820-01 77L027 0.50 3 0.75 38 1820-0197.030 1820-01 97L030 0.60 3 0.90 38 1820-0236.035 1820-0236L035 0.70 3 1.05 38 1820-0276.041 1820-0276L041 0.80 3 1.20 38 1820-0315.047 1820-0315L047 0.90 3 1.35 38 1820-0354.053 1820-0354L053 1.00 3 1.50 38 1820-0394.059 1820-0394L059 1.10 3 1.50 38 1820-0433.059 1820-0433L059 1.20 3 1.50 38 1820-0472.059 1820-0472L059 1.30 3 2.25 38 1820-0512.089 1820-0512L089 1.40 3 2.25 38 1820-0551.089 1820-0551 L089 1.50 3 2.25 38 1820-0591.089 1820-0591 L089 1.60 3 2.25 38 1820-0630.089 1820-0630L089 1.70 3 2.25 38 1820-0669.089 1820-0669L089 1.80 3 3.00 38 1820-0709.118 1820-0709L118 1.90 3 3.00 38 1820-0748.118 1820-0748L118 2.00 3 3.00 38 1820-0787.118 1820-0787L118 2.50 3 3.75 38 1820-0984.148 1820-0984L1 48 2.80 3 4.50 38 1820-1102.177 1820-1102L1 77 3.00 3 4.50 38 1820-1181.177 1820-1181 L1 77 3.50 4 5.25 50 1820-1378.207 1820-1 378L207 3.80 5 6.00 50 1820-1496.236 1820-1 496L236 4.00 5 6.00 50 1820-1575.236 1820-1 575L236 4.50 5 6.75 50 1820-1772.266 1820-1 772L266 4.80 5 7.50 50 1820-1890.295 1820-1 890L295 5.00 5 7.50 50 1820-1968.295 1820-1 968L295 5.50 6 8.25 50 1820-2165.325 1820-21 65L325 5.80 6 9.00 50 1820-2283.354 1820-2283L354 6.00 6 9.00 50 1820-2362.354 1820-2362L354 SERIES 1820 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic O Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 97 END MILLS
