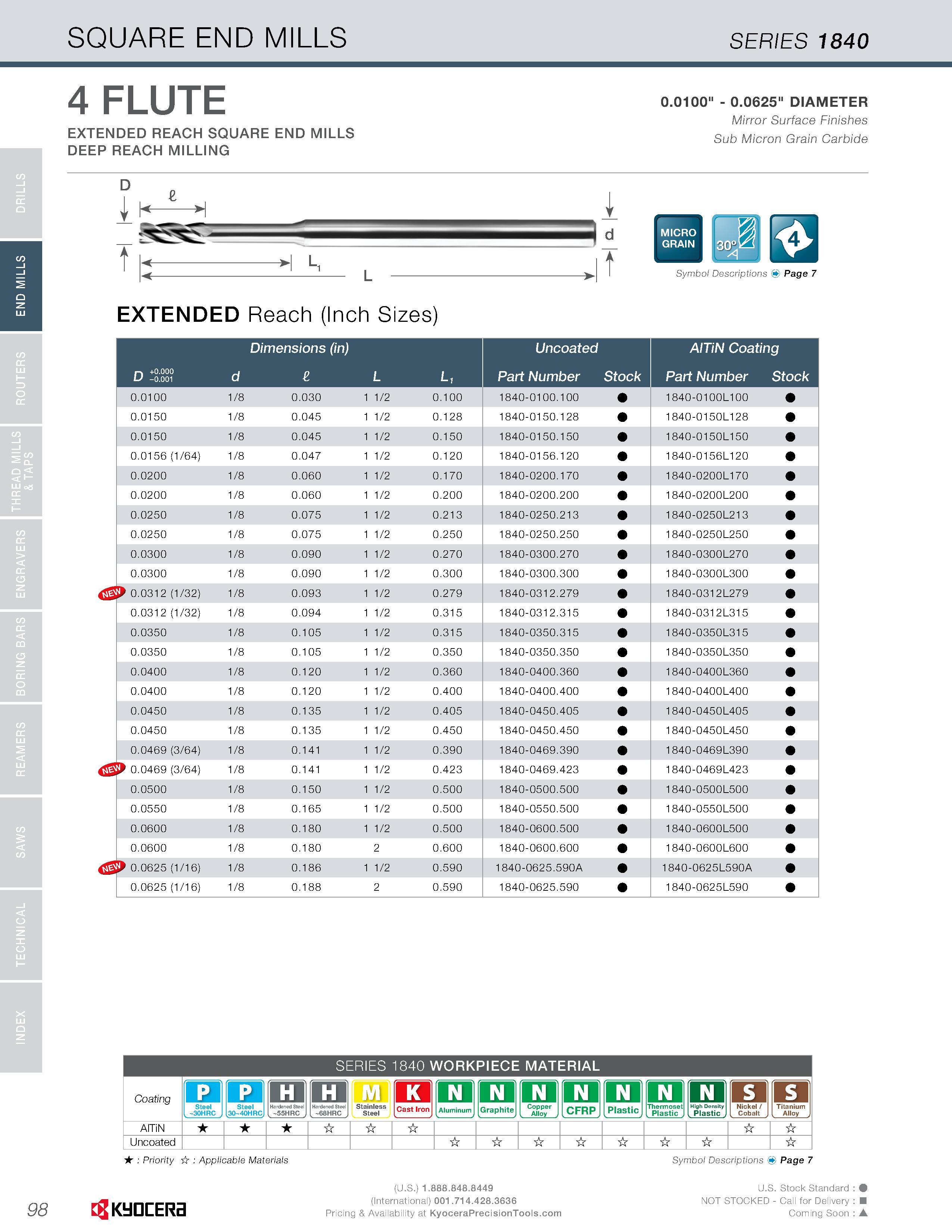

100 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.98

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 98 0100 ENG Lab2u

END MILLS SQUARE END MILLS SERIES 1840 4 FLUTE EXTENDED REACH SQUARE END MILLS DEEP REACH MILLING 0.0100" - 0.0625" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide i Jt Ji Symbol Descriptions Page 7 EXTENDED Reach (Inch Sizes) r-k +0.000 U -0.001 d Dimensions (in) L Li Uncoated Part Number Stock AITiN Coating Part Number Stock 0.0100 1/8 0.030 1 1/2 0.100 1840-0100.100 1 840-0100L100 0.0150 1/8 0.045 1 1/2 0.128 1840-0150.128 1 840-0150L128 0.0150 1/8 0.045 1 1/2 0.150 1840-0150.150 1 840-0150L150 0.0156 (1/64) 1/8 0.047 1 1/2 0.120 1840-0156.120 1 840-0156L120 0.0200 1/8 0.060 1 1/2 0.170 1840-0200.170 1 840-0200L170 0.0200 1/8 0.060 1 1/2 0.200 1840-0200.200 1840-0200L200 0.0250 1/8 0.075 1 1/2 0.213 1840-0250.213 1840-0250L213 0.0250 1/8 0.075 1 1/2 0.250 1840-0250.250 1840-0250L250 0.0300 1/8 0.090 1 1/2 0.270 1840-0300.270 1840-0300L270 0.0300 1/8 0.090 1 1/2 0.300 1840-0300.300 1840-0300L300 0.0312 (1/32) 1/8 0.093 1 1/2 0.279 1840-0312.279 1840-031 2L279 0.0312 (1/32) 1/8 0.094 1 1/2 0.315 1840-0312.315 1840-031 2L31 5 0.0350 1/8 0.105 1 1/2 0.315 1840-0350.315 1840-0350L315 0.0350 1/8 0.105 1 1/2 0.350 1840-0350.350 1840-0350L350 0.0400 1/8 0.120 1 1/2 0.360 1840-0400.360 1840-0400L360 0.0400 1/8 0.120 1 1/2 0.400 1840-0400.400 1840-0400L400 0.0450 1/8 0.135 1 1/2 0.405 1840-0450.405 1840-0450L405 0.0450 1/8 0.135 1 1/2 0.450 1840-0450.450 1840-0450L450 0.0469 (3/64) 1/8 0.141 1 1/2 0.390 1840-0469.390 1840-0469L390 0.0469 (3/64) 1/8 0.141 1 1/2 0.423 1840-0469.423 1840-0469L423 0.0500 1/8 0.150 1 1/2 0.500 1840-0500.500 1840-0500L500 0.0550 1/8 0.165 1 1/2 0.500 1840-0550.500 1840-0550L500 0.0600 1/8 0.180 1 1/2 0.500 1840-0600.500 1840-0600L500 0.0600 1/8 0.180 2 0.600 1840-0600.600 1840-0600L600 9 0.0625 (1/16) 1/8 0.186 1 1/2 0.590 1 840-0625.590A 1840-0625L590A 0.0625 (1/16) 1/8 0.188 2 0.590 1840-0625.590 1840-0625L590 SERIES 1840 WORKPIECE MATERIAL Coating D Steel -30HRC D Steel 30-40HRC Cl Hardened Steel -55HRC I H I d Stainless Steel K o Aluminuin o Graphite o Copper Alloy o CFRP o Plastic o Thermoset Plastic o Plastic I s I IS Hardened Steel -68HRC J Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN Uncoated Priority Applicable Materials Symbol Descriptions ( 98 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
