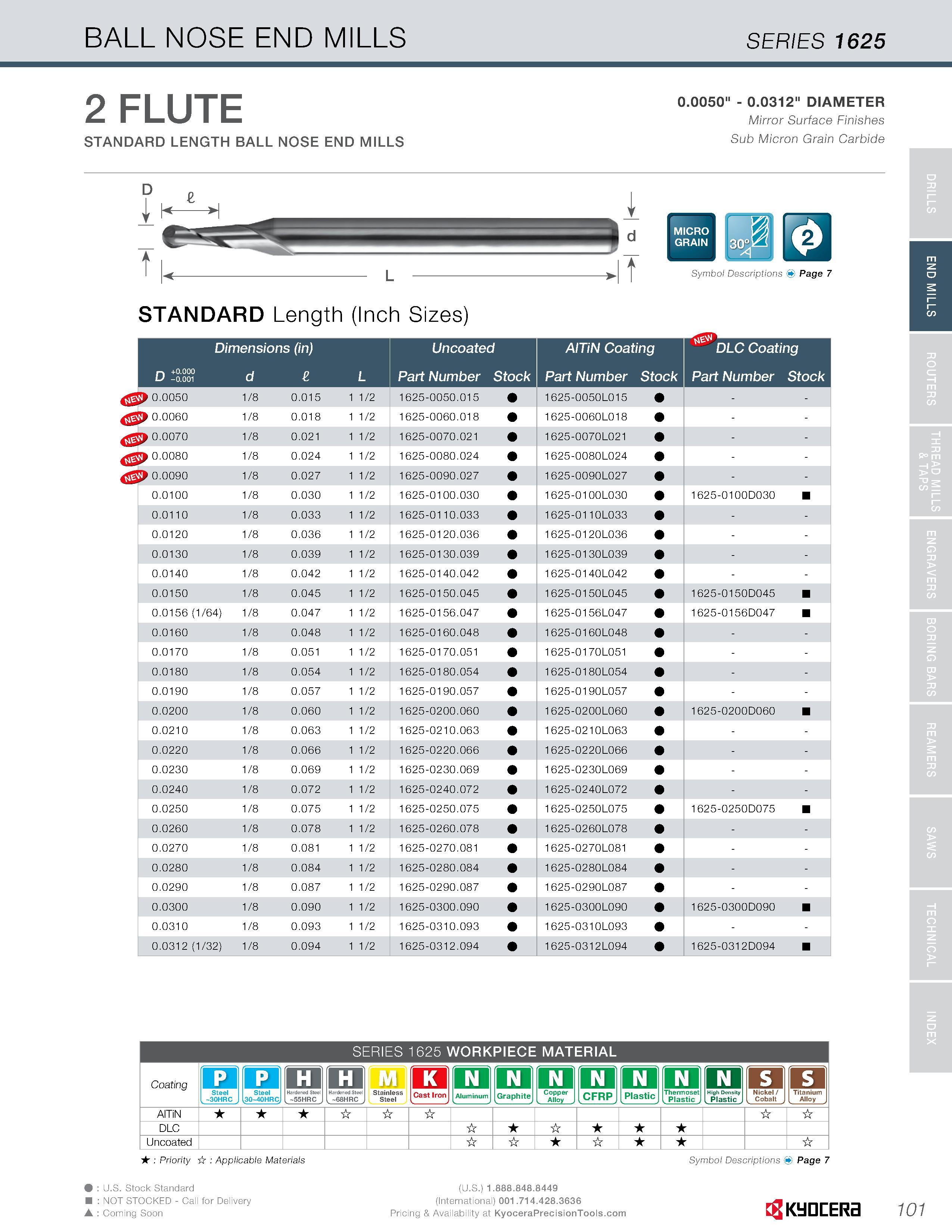

BALL NOSE END MILLS SERIES 1625 2 FLUTE STANDARD LENGTH BALL NOSE END MILLS 0.0050" - 0.0312" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) r- +0.000 U -0.001 Dimensions (in) d e L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock > 0.0050 1/8 0.015 1 1/2 1625-0050.015 1625-0050L015 - > 0.0060 1/8 0.018 1 1/2 1625-0060.018 1625-0060L018 - p 0.0070 1/8 0.021 1 1/2 1625-0070.021 1625-0070L021 - p 0.0080 1/8 0.024 1 1/2 1625-0080.024 1625-0080L024 - 0.0090 1/8 0.027 1 1/2 1625-0090.027 1625-0090L027 - 0.0100 1/8 0.030 1 1/2 1625-0100.030 1625-01 00L030 1 625-0100D030 0.0110 1/8 0.033 1 1/2 1625-0110.033 1625-0110L033 - 0.0120 1/8 0.036 1 1/2 1625-0120.036 1625-01 20L036 - 0.0130 1/8 0.039 1 1/2 1625-0130.039 1625-01 30L039 - 0.0140 1/8 0.042 1 1/2 1625-0140.042 1625-01 40L042 - 0.0150 1/8 0.045 1 1/2 1625-0150.045 1625-01 50L045 1 625-0150D045 0.0156 (1/64) 1/8 0.047 1 1/2 1625-0156.047 1625-01 56L047 1 625-0156D047 0.0160 1/8 0.048 1 1/2 1625-0160.048 1625-01 60L048 - 0.0170 1/8 0.051 1 1/2 1625-0170.051 1625-01 70L051 - 0.0180 1/8 0.054 1 1/2 1625-0180.054 1625-01 80L054 - 0.0190 1/8 0.057 1 1/2 1625-0190.057 1625-01 90L057 - 0.0200 1/8 0.060 1 1/2 1625-0200.060 1625-0200L060 1625-0200D060 0.0210 1/8 0.063 1 1/2 1625-0210.063 1625-0210L063 - 0.0220 1/8 0.066 1 1/2 1625-0220.066 1625-0220L066 - 0.0230 1/8 0.069 1 1/2 1625-0230.069 1625-0230L069 - 0.0240 1/8 0.072 1 1/2 1625-0240.072 1625-0240L072 - 0.0250 1/8 0.075 1 1/2 1625-0250.075 1625-0250L075 1625-0250D075 0.0260 1/8 0.078 1 1/2 1625-0260.078 1625-0260L078 - 0.0270 1/8 0.081 1 1/2 1625-0270.081 1625-0270L081 - 0.0280 1/8 0.084 1 1/2 1625-0280.084 1625-0280L084 - 0.0290 1/8 0.087 1 1/2 1625-0290.087 1625-0290L087 - 0.0300 1/8 0.090 1 1/2 1625-0300.090 1625-0300L090 1625-0300D090 0.0310 1/8 0.093 1 1/2 1625-0310.093 1625-0310L093 - 0.0312 (1/32) 1/8 0.094 1 1/2 1625-0312.094 1625-0312L094 1 625-031 2D094 SERIES 1625 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 101 END MILLS
