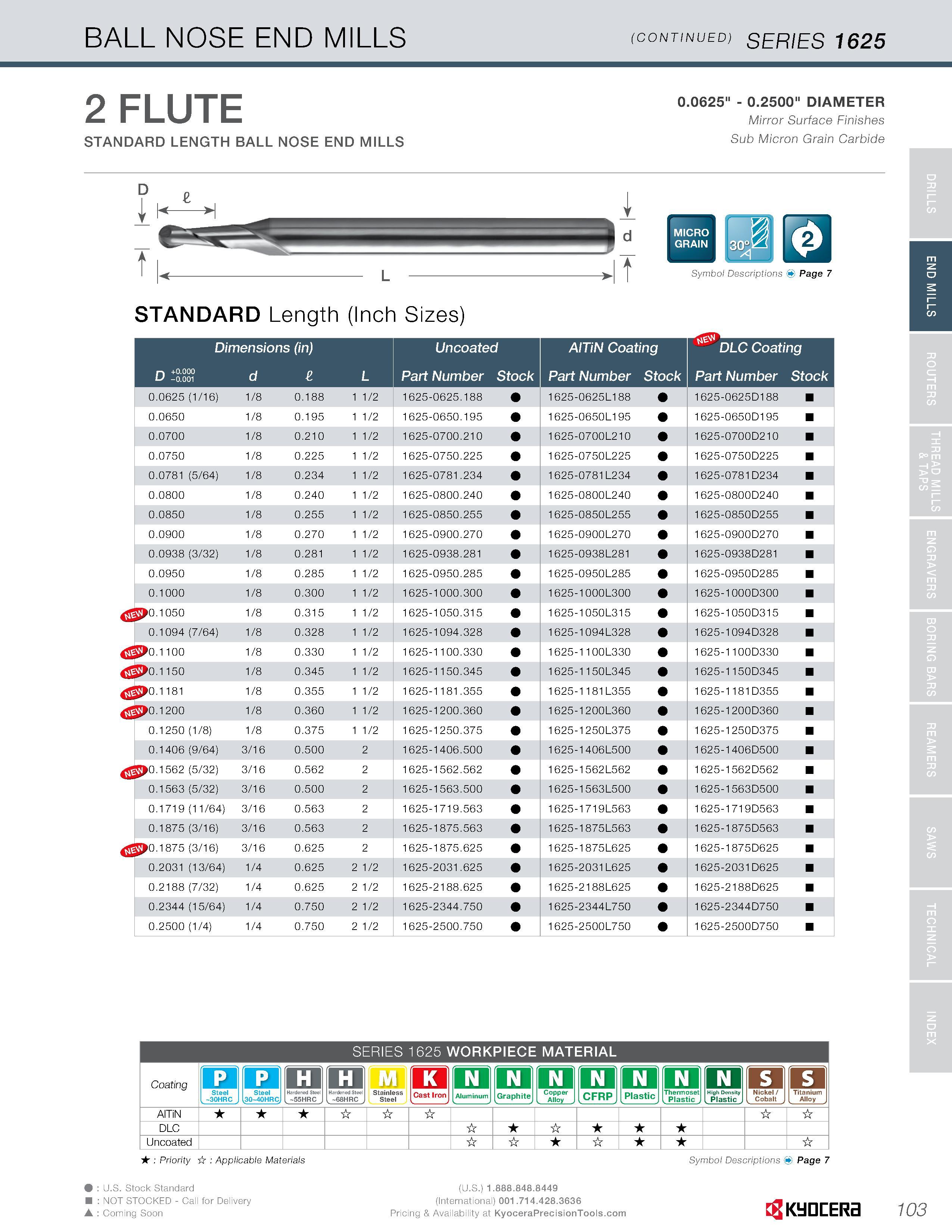

105 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.103

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 103 0105 ENG Lab2u

BALL NOSE END MILLS (CONTINUED) SERIES 1625 2 FLUTE STANDARD LENGTH BALL NOSE END MILLS 0.0625" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) Dimensions (in) +0.000 n lJ -0.001 Cl L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0625 (1/16) 1/8 0.188 1 1/2 1625-0625.188 1 625-0625L1 88 1 625-0625D1 88 0.0650 1/8 0.195 1 1/2 1625-0650.195 1 625-0650L1 95 1 625-0650D1 95 0.0700 1/8 0.210 1 1/2 1625-0700.210 1625-0700L210 1 625-0700D210 0.0750 1/8 0.225 1 1/2 1625-0750.225 1625-0750L225 1625-0750D225 0.0781 (5/64) 1/8 0.234 1 1/2 1625-0781.234 1625-0781L234 1 625-0781 D234 0.0800 1/8 0.240 1 1/2 1625-0800.240 1625-0800L240 1625-0800D240 0.0850 1/8 0.255 1 1/2 1625-0850.255 1625-0850L255 1625-0850D255 0.0900 1/8 0.270 1 1/2 1625-0900.270 1625-0900L270 1625-0900D270 0.0938 (3/32) 1/8 0.281 1 1/2 1625-0938.281 1625-0938L281 1625-0938D281 0.0950 1/8 0.285 1 1/2 1625-0950.285 1625-0950L285 1625-0950D285 0.1000 1/8 0.300 1 1/2 1625-1000.300 1 625-1 000L300 1 625-1 000D300 SJ>0.1050 1/8 0.315 1 1/2 1625-1050.315 1 625-1 050L315 1 625-1 050D315 0.1094 (7/64) 1/8 0.328 1 1/2 1625-1094.328 1 625-1 094L328 1 625-1 094D328 0.1100 1/8 0.330 1 1/2 1625-1100.330 1625-1100L330 1625-1100D330 0.1150 1/8 0.345 1 1/2 1625-1150.345 1625-1150L345 1625-1150D345 0.1181 1/8 0.355 1 1/2 1625-1181.355 1625-11 81 L355 1 625-1181 D355 0.1200 1/8 0.360 1 1/2 1625-1200.360 1 625-1 200L360 1 625-1 200D360 0.1250 (1/8) 1/8 0.375 1 1/2 1625-1250.375 1 625-1 250L375 1 625-1 250D375 0.1406 (9/64) 3/16 0.500 2 1625-1406.500 1 625-1 406L500 1 625-1 406D500 JJ>0.1562 (5/32) 3/16 0.562 2 1625-1562.562 1 625-1 562L562 1 625-1 562D562 0.1563 (5/32) 3/16 0.500 2 1625-1563.500 1 625-1 563L500 1 625-1 563D500 0.1719 (11/64) 3/16 0.563 2 1625-1719.563 1 625-1 719L563 1625-1 71 9D563 0.1875 (3/16) 3/16 0.563 2 1625-1875.563 1 625-1 875L563 1 625-1 875D563 SJ O.1875 (3/16) 3/16 0.625 2 1625-1875.625 1 625-1 875L625 1 625-1 875D625 0.2031 (13/64) 1/4 0.625 2 1/2 1625-2031.625 1625-2031L625 1 625-2031 D625 0.2188 (7/32) 1/4 0.625 2 1/2 1625-2188.625 1625-21 88L625 1 625-2188D625 0.2344 (15/64) 1/4 0.750 2 1/2 1625-2344.750 1625-2344L750 1625-2344D750 0.2500 (1/4) 1/4 0.750 2 1/2 1625-2500.750 1625-2500L750 1625-2500D750 SERIES 1625 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . O . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 103 END MILLS
