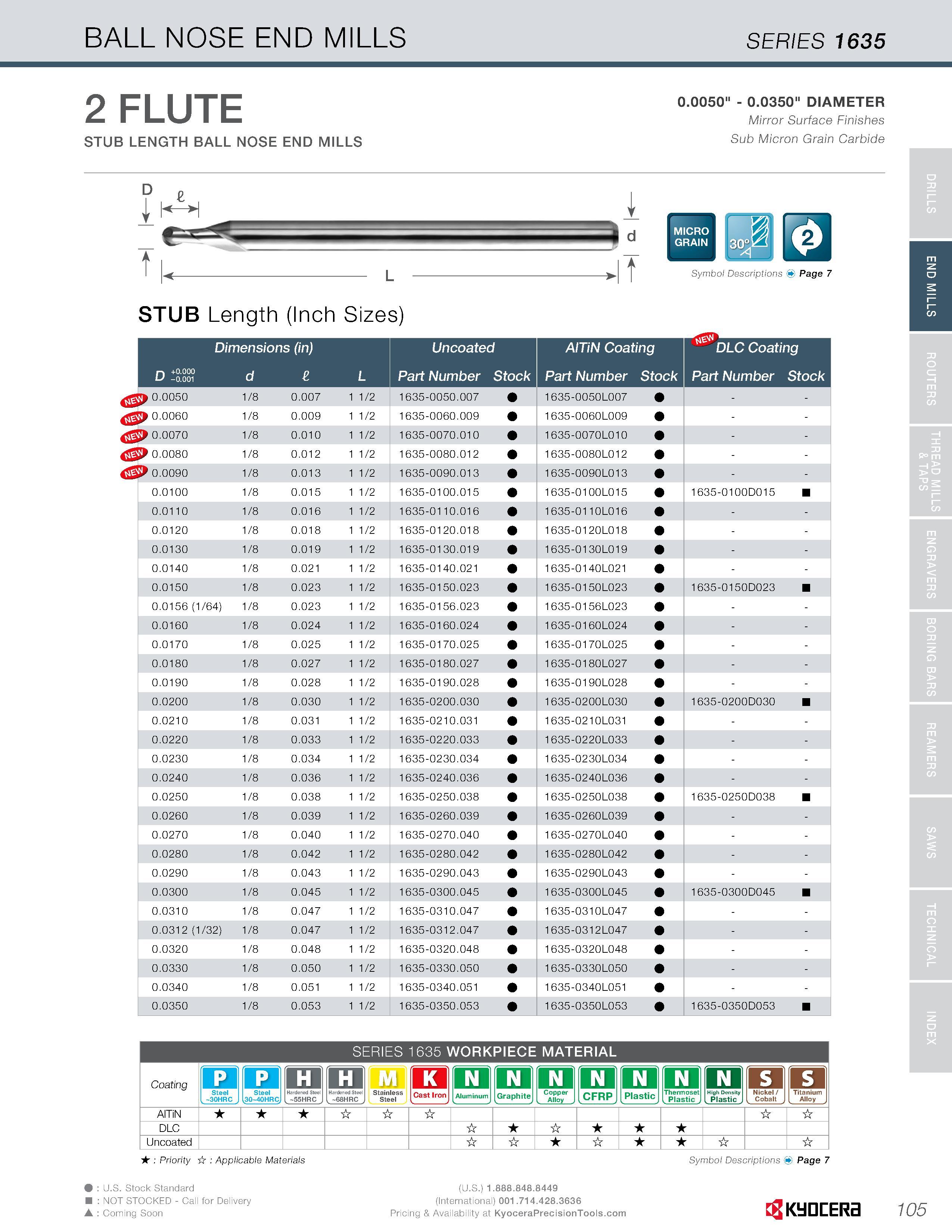

BALL NOSE END MILLS SERIES 1635 2 FLUTE STUB LENGTH BALL NOSE END MILLS 0.0050" - 0.0350" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide i -IT Symbol Descriptions Page 7 STUB Length (Inch Sizes) +0.000 L/ -0.001 Dimensions (in) d e L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0050 1/8 0.007 1 1/2 1635-0050.007 1635-0050L007 - 0.0060 1/8 0.009 1 1/2 1635-0060.009 1635-0060L009 - 0.0070 1/8 0.010 1 1/2 1635-0070.010 1635-0070L010 - £> 0.0080 1/8 0.012 1 1/2 1635-0080.012 1635-0080L012 - 0.0090 1/8 0.013 1 1/2 1635-0090.013 1635-0090L013 - 0.0100 1/8 0.015 1 1/2 1635-0100.015 1635-01 00L015 1 635-0100D015 0.0110 1/8 0.016 1 1/2 1635-0110.016 1635-0110L016 - 0.0120 1/8 0.018 1 1/2 1635-0120.018 1635-01 20L018 - 0.0130 1/8 0.019 1 1/2 1635-0130.019 1635-01 30L019 - 0.0140 1/8 0.021 1 1/2 1635-0140.021 1635-01 40L021 - 0.0150 1/8 0.023 1 1/2 1635-0150.023 1635-01 50L023 1 635-0150D023 0.0156 (1/64) 1/8 0.023 1 1/2 1635-0156.023 1635-01 56L023 - 0.0160 1/8 0.024 1 1/2 1635-0160.024 1635-01 60L024 - 0.0170 1/8 0.025 1 1/2 1635-0170.025 1635-01 70L025 - 0.0180 1/8 0.027 1 1/2 1635-0180.027 1635-01 80L027 - 0.0190 1/8 0.028 1 1/2 1635-0190.028 1635-01 90L028 - 0.0200 1/8 0.030 1 1/2 1635-0200.030 1635-0200L030 1635-0200D030 0.0210 1/8 0.031 1 1/2 1635-0210.031 1635-0210L031 - 0.0220 1/8 0.033 1 1/2 1635-0220.033 1635-0220L033 - 0.0230 1/8 0.034 1 1/2 1635-0230.034 1635-0230L034 - 0.0240 1/8 0.036 1 1/2 1635-0240.036 1635-0240L036 - 0.0250 1/8 0.038 1 1/2 1635-0250.038 1635-0250L038 1635-0250D038 0.0260 1/8 0.039 1 1/2 1635-0260.039 1635-0260L039 - 0.0270 1/8 0.040 1 1/2 1635-0270.040 1635-0270L040 - 0.0280 1/8 0.042 1 1/2 1635-0280.042 1635-0280L042 - 0.0290 1/8 0.043 1 1/2 1635-0290.043 1635-0290L043 - 0.0300 1/8 0.045 1 1/2 1635-0300.045 1635-0300L045 1635-0300D045 0.0310 1/8 0.047 1 1/2 1635-0310.047 1635-0310L047 - 0.0312 (1/32) 1/8 0.047 1 1/2 1635-0312.047 1635-0312L047 - 0.0320 1/8 0.048 1 1/2 1635-0320.048 1635-0320L048 - 0.0330 1/8 0.050 1 1/2 1635-0330.050 1635-0330L050 - 0.0340 1/8 0.051 1 1/2 1635-0340.051 1635-0340L051 - 0.0350 1/8 0.053 1 1/2 1635-0350.053 1635-0350L053 1635-0350D053 SERIES 1635 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 105 END MILLS
