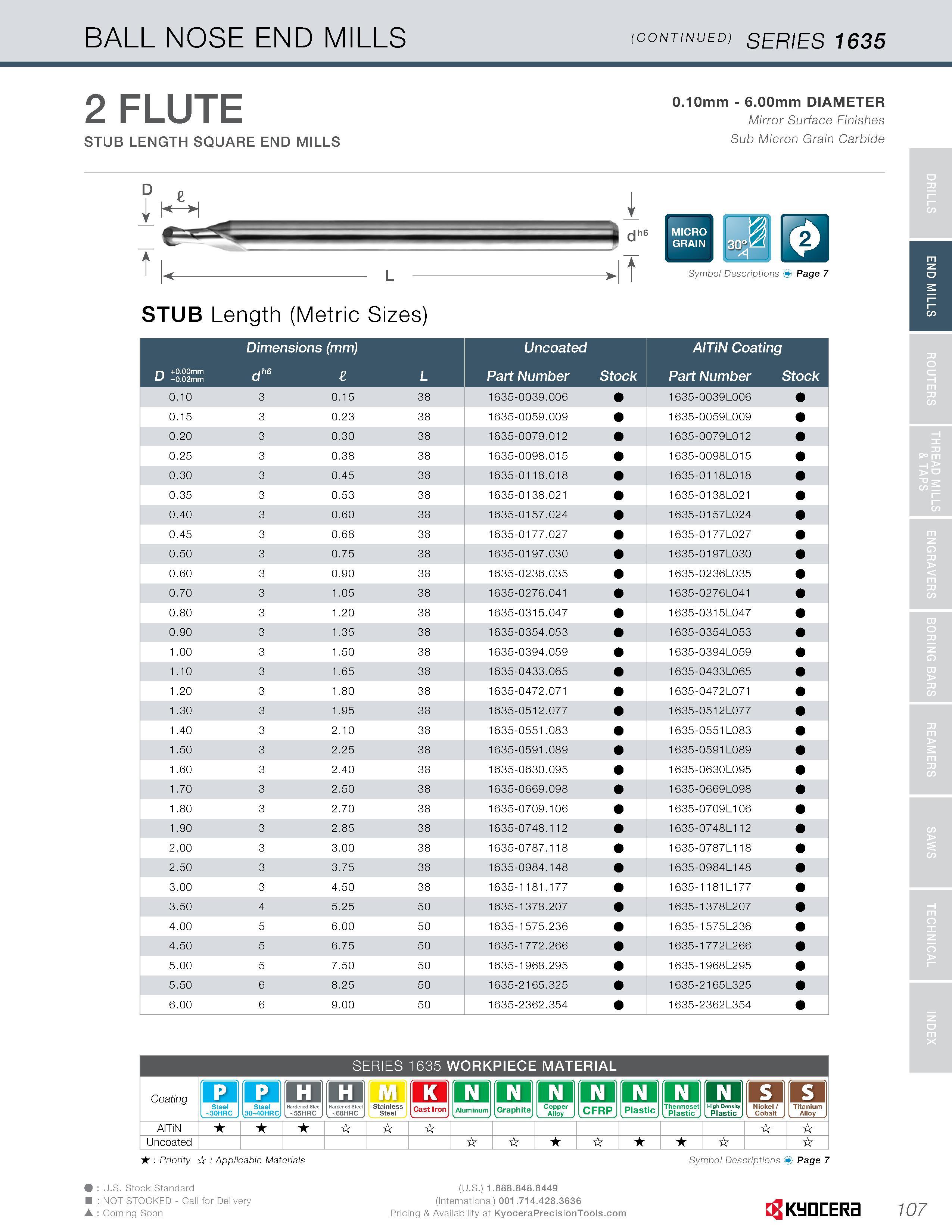

BALL NOSE END MILLS (CONTINUED) SERIES 1635 2 FLUTE STUB LENGTH SQUARE END MILLS 0.10mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide e= fl< J t Symbol Descriptions Page 7 STUB Length (Metric Sizes) Dimensions (mm) Uncoated AITiN Coating r 4-O.OOmm n j L/ -0.02mm U Z L. Part Number Stock Part Number Stock 0.10 3 0.15 38 1635-0039.006 1635-0039L006 0.15 3 0.23 38 1635-0059.009 1635-0059L009 0.20 3 0.30 38 1635-0079.012 1635-0079L012 0.25 3 0.38 38 1635-0098.015 1635-0098L015 0.30 3 0.45 38 1635-0118.018 1635-0118L018 0.35 3 0.53 38 1635-0138.021 1635-01 38L021 0.40 3 0.60 38 1635-0157.024 1635-01 57L024 0.45 3 0.68 38 1635-0177.027 1635-01 77L027 0.50 3 0.75 38 1635-0197.030 1635-01 97L030 0.60 3 0.90 38 1635-0236.035 1635-0236L035 0.70 3 1.05 38 1635-0276.041 1635-0276L041 0.80 3 1.20 38 1635-0315.047 1635-0315L047 0.90 3 1.35 38 1635-0354.053 1635-0354L053 1.00 3 1.50 38 1635-0394.059 1635-0394L059 1.10 3 1.65 38 1635-0433.065 1635-0433L065 1.20 3 1.80 38 1635-0472.071 1635-0472L071 1.30 3 1.95 38 1635-0512.077 1635-0512L077 1.40 3 2.10 38 1635-0551.083 1635-0551 L083 1.50 3 2.25 38 1635-0591.089 1635-0591 L089 1.60 3 2.40 38 1635-0630.095 1635-0630L095 1.70 3 2.50 38 1635-0669.098 1635-0669L098 1.80 3 2.70 38 1635-0709.106 1635-0709L106 1.90 3 2.85 38 1635-0748.112 1635-0748L112 2.00 3 3.00 38 1635-0787.118 1635-0787L118 2.50 3 3.75 38 1635-0984.148 1635-0984L1 48 3.00 3 4.50 38 1635-1181.177 1635-1181 L1 77 3.50 4 5.25 50 1635-1378.207 1635-1 378L207 4.00 5 6.00 50 1635-1575.236 1635-1 575L236 4.50 5 6.75 50 1635-1772.266 1 635-1 772L266 5.00 5 7.50 50 1635-1968.295 1635-1 968L295 5.50 6 8.25 50 1635-2165.325 1635-21 65L325 6.00 6 9.00 50 1635-2362.354 1635-2362L354 SERIES 1635 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC jjj Stainless Steel o Aluminuin o Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 107 END MILLS
