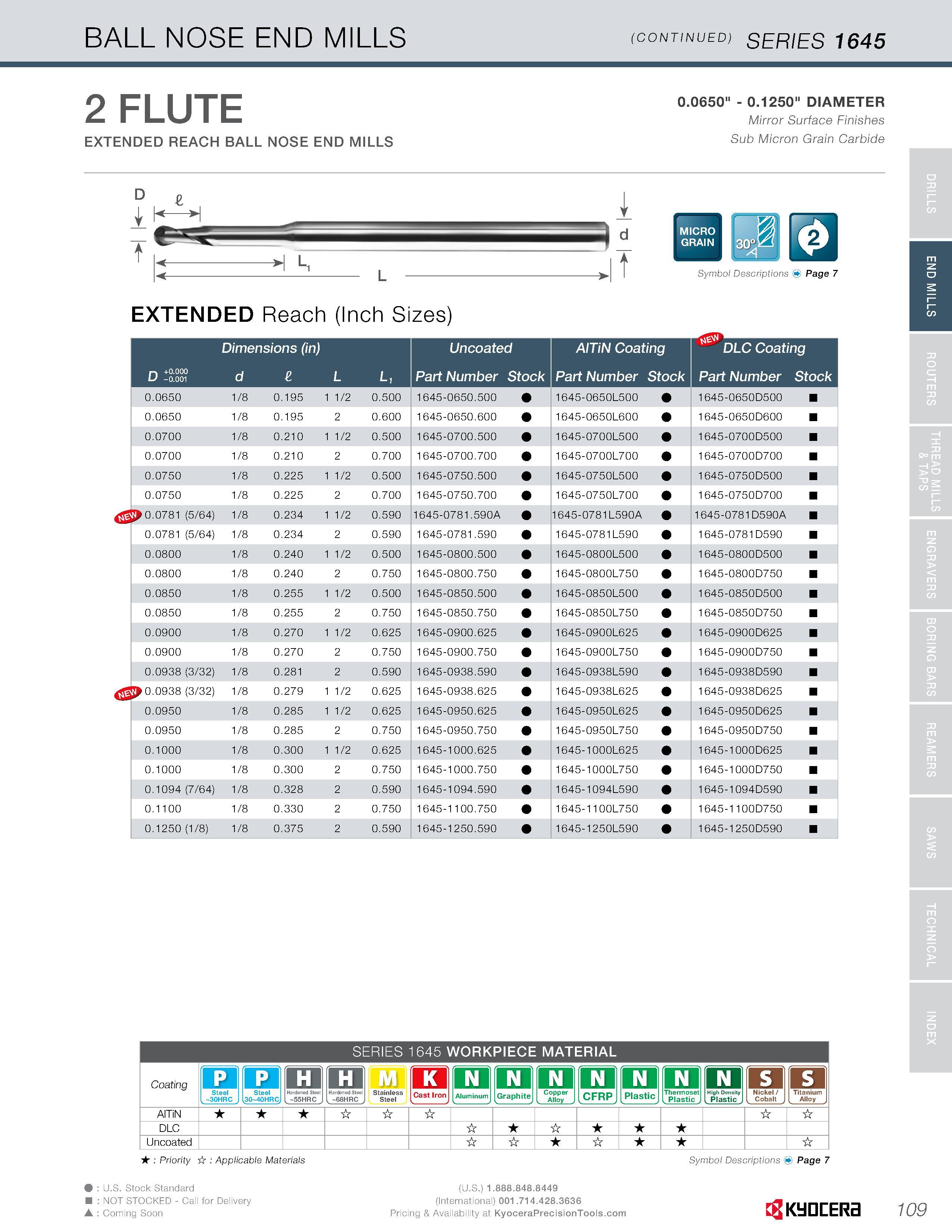

BALL NOSE END MILLS (CONTINUED) SERIES 1645 2 FLUTE EXTENDED REACH BALL NOSE END MILLS 0.0650" - 0.1250" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide i < > i f 5 k U i jt Symbol Descriptions Page 7 EXTENDED Reach (Inch Sizes) r-k +0.000 U -0.001 Dimensions (in) d L Li Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0650 1/8 0.195 1/2 0.500 1645-0650.500 1645-0650L500 1645-0650D500 0.0650 1/8 0.195 2 0.600 1645-0650.600 1645-0650L600 1645-0650D600 0.0700 1/8 0.210 1/2 0.500 1645-0700.500 1645-0700L500 1645-0700D500 0.0700 1/8 0.210 2 0.700 1645-0700.700 1645-0700L700 1645-0700D700 0.0750 1/8 0.225 1/2 0.500 1645-0750.500 1645-0750L500 1645-0750D500 0.0750 1/8 0.225 2 0.700 1645-0750.700 1645-0750L700 1645-0750D700 0.0781 (5/64) 1/8 0.234 1/2 0.590 1645-0781.590A 1645-0781 L590A 1 645-0781 D590A 0.0781 (5/64) 1/8 0.234 2 0.590 1645-0781.590 1645-0781L590 1 645-0781 D590 0.0800 1/8 0.240 1/2 0.500 1645-0800.500 1645-0800L500 1645-0800D500 0.0800 1/8 0.240 2 0.750 1645-0800.750 1645-0800L750 1645-0800D750 0.0850 1/8 0.255 1/2 0.500 1645-0850.500 1645-0850L500 1645-0850D500 0.0850 1/8 0.255 2 0.750 1645-0850.750 1645-0850L750 1645-0850D750 0.0900 1/8 0.270 1/2 0.625 1645-0900.625 1645-0900L625 1645-0900D625 0.0900 1/8 0.270 2 0.750 1645-0900.750 1645-0900L750 1645-0900D750 0.0938 (3/32) 1/8 0.281 2 0.590 1645-0938.590 1645-0938L590 1645-0938D590 0.0938 (3/32) 1/8 0.279 1/2 0.625 1645-0938.625 1645-0938L625 1645-0938D625 0.0950 1/8 0.285 1/2 0.625 1645-0950.625 1645-0950L625 1645-0950D625 0.0950 1/8 0.285 2 0.750 1645-0950.750 1645-0950L750 1645-0950D750 0.1000 1/8 0.300 1 1/2 0.625 1645-1000.625 1645-1000L625 1 645-1 000D625 0.1000 1/8 0.300 2 0.750 1645-1000.750 1645-1000L750 1 645-1 000D750 0.1094 (7/64) 1/8 0.328 2 0.590 1645-1094.590 1645-1094L590 1 645-1 094D590 0.1100 1/8 0.330 2 0.750 1645-1100.750 1645-11 00L750 1645-1100D750 0.1250 (1/8) 1/8 0.375 2 0.590 1645-1250.590 1645-1250L590 1 645-1 250D590 SERIES 1645 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 109 END MILLS
