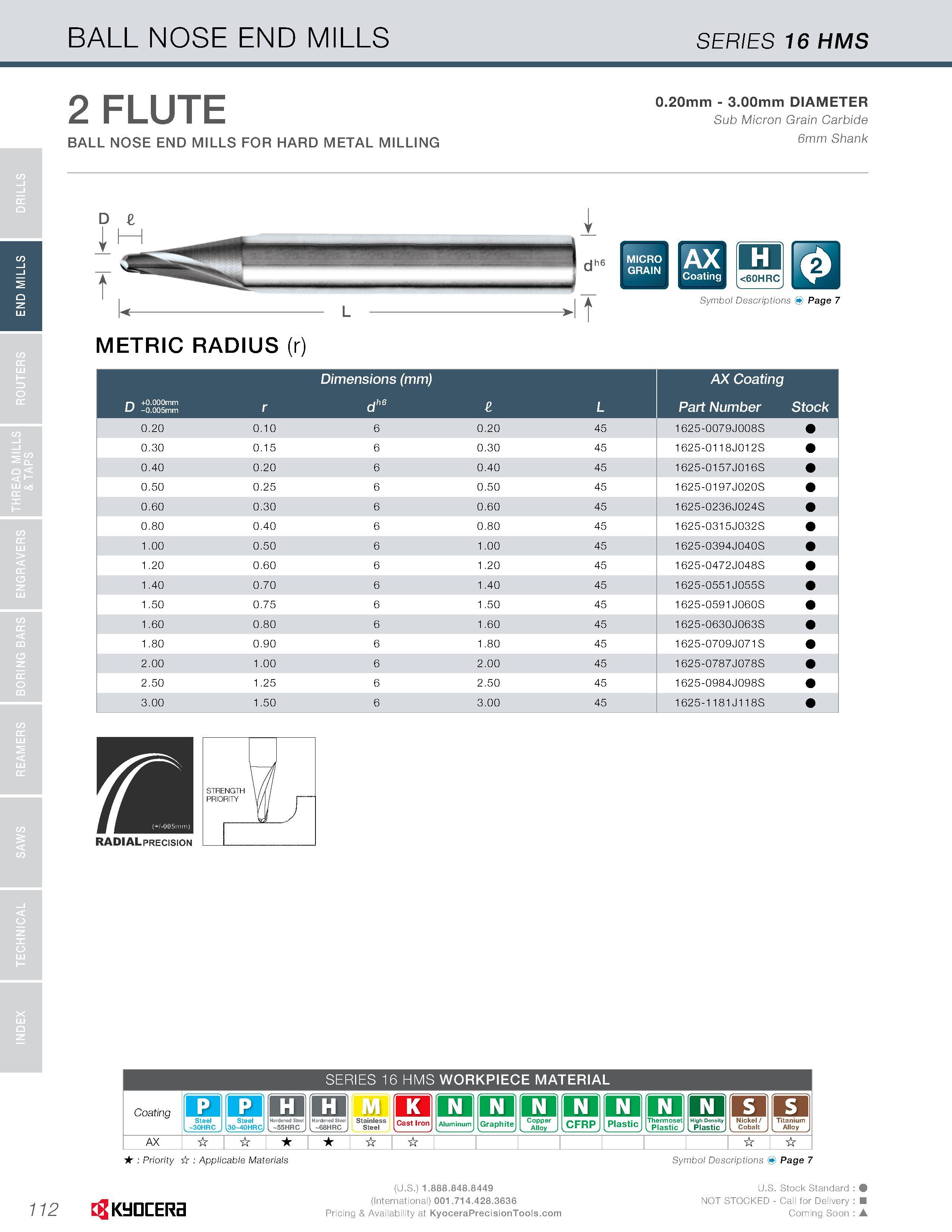

END MILLS BALL NOSE END MILLS SERIES 16 HMS 112 2 FLUTE BALL NOSE END MILLS FOR HARD METAL MILLING 0.20mm - 3.00mm DIAMETER Sub Micron Grain Carbide 6mm Shank MICRO I AY GRAIN I I. 1 >lt Symbol Descriptions Page 7 METRIC RADIUS (r) l_ >l I i- +0.000mm - -0.005mm r Dimensions (mm) dhB L AX Coating Part Number Stock 0.20 0.10 6 0.20 45 1625-0079J008S 0.30 0.15 6 0.30 45 1625-0118J012S 0.40 0.20 6 0.40 45 1 625-0157J01 6S 0.50 0.25 6 0.50 45 1625-0197J020S 0.60 0.30 6 0.60 45 1625-0236J024S 0.80 0.40 6 0.80 45 1625-031 5J032S 1.00 0.50 6 1.00 45 1625-0394J040S 1.20 0.60 6 1.20 45 1625-0472J048S 1.40 0.70 6 1.40 45 1625-0551J055S 1.50 0.75 6 1.50 45 1625-0591J060S 1.60 0.80 6 1.60 45 1625-0630J063S 1.80 0.90 6 1.80 45 1625-0709J071S 2.00 1.00 6 2.00 45 1625-0787J078S 2.50 1.25 6 2.50 45 1625-0984J098S 3.00 1.50 6 3.00 45 1 625-1181J118S RADIALprecision SERIES 16 HMS WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminuin Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset Plastic . o Plastic I s I s j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AX Priority Applicable Materials Symbol Descriptions ( CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
