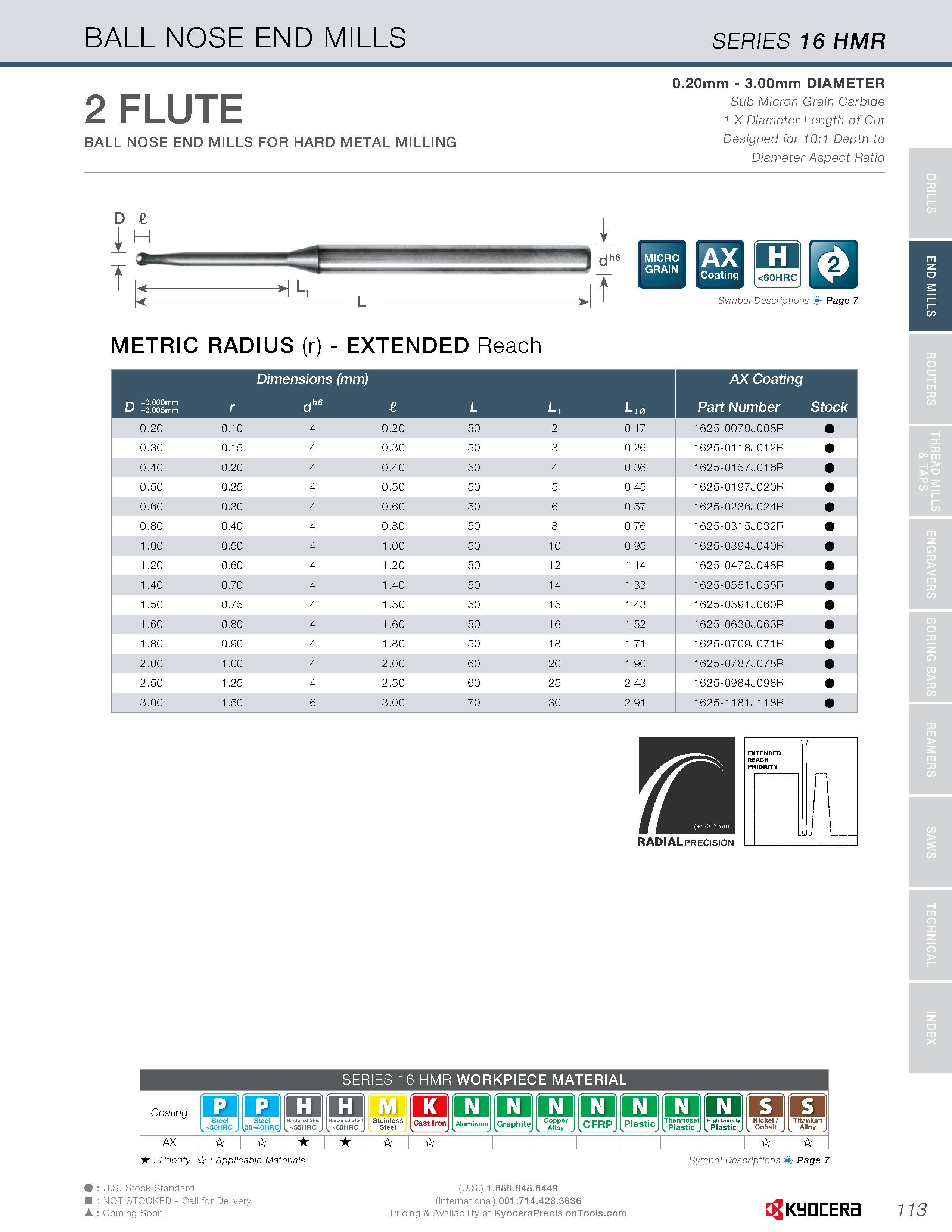

BALL NOSE END MILLS SERIES 16 HMR 2 FLUTE BALL NOSE END MILLS FOR HARD METAL MILLING 0.20mm - 3.00mm DIAMETER Sub Micron Grain Carbide 1 X Diameter Length of Cut Designed for 10:1 Depth to Diameter Aspect Ratio MICRO I AY GRAIN I r H 1 <60HRcJ Symbol Descriptions Page 7 METRIC RADIUS (r) - EXTENDED Reach Dimensions (mm) AX Coating pv +0.000mm -s -0.005mm r dh6 L L, I-10 Part Number Stock 0.20 0.10 4 0.20 50 2 0.17 1625-0079J008R 0.30 0.15 4 0.30 50 3 0.26 1625-0118J012R 0.40 0.20 4 0.40 50 4 0.36 1625-01 57J016R 0.50 0.25 4 0.50 50 5 0.45 1625-0197J020R 0.60 0.30 4 0.60 50 6 0.57 1625-0236J024R 0.80 0.40 4 0.80 50 8 0.76 1625-0315J032R 1.00 0.50 4 1.00 50 10 0.95 1625-0394J040R 1.20 0.60 4 1.20 50 12 1.14 1625-0472J048R 1.40 0.70 4 1.40 50 14 1.33 1625-0551J055R 1.50 0.75 4 1.50 50 15 1.43 1625-0591J060R 1.60 0.80 4 1.60 50 16 1.52 1625-0630J063R 1.80 0.90 4 1.80 50 18 1.71 1625-0709J071R 2.00 1.00 4 2.00 60 20 1.90 1625-0787J078R 2.50 1.25 4 2.50 60 25 2.43 1625-0984J098R 3.00 1.50 6 3.00 70 30 2.91 1625-11 81J11 8R RADIALprecision SERIES 16 HMR WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Ai Stainless Steel nn Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset . Plastic . o Plastic m m j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J AX Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 113 END MILLS
