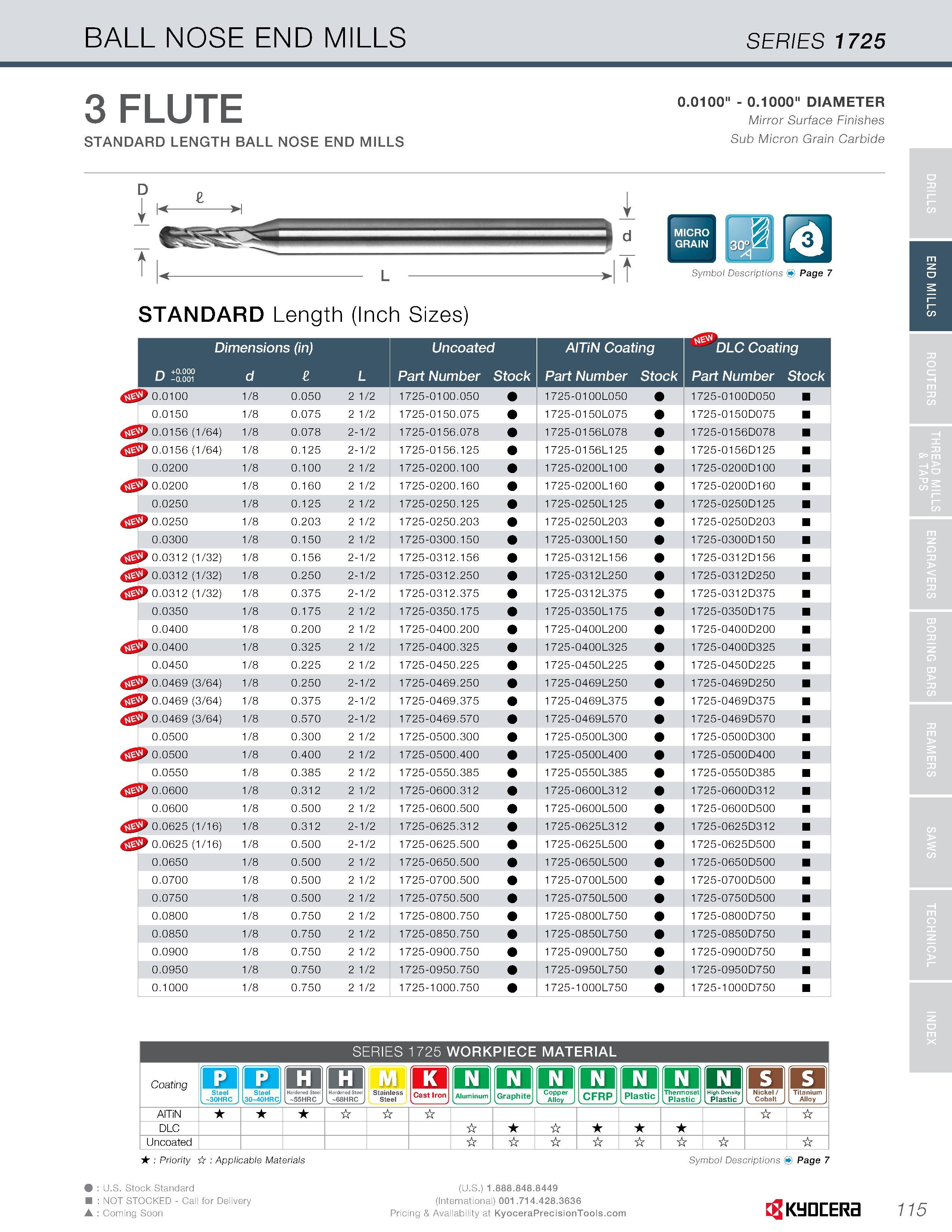

117 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.115

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 115 0117 ENG Lab2u

BALL NOSE END MILLS SERIES 1725 3 FLUTE STANDARD LENGTH BALL NOSE END MILLS 0.0100" - 0.1000" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide i 31 -It Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating +0.000 L/ -0.001 d L Part Number Stock Part Number Stock Part Number Stock 9 0.0100 1/8 0.050 2 1/2 1725-0100.050 1725-01 00L050 1 725-0100D050 0.0150 1/8 0.075 2 1/2 1725-0150.075 1725-01 50L075 1 725-0150D075 9 0.0156 (1/64) 1/8 0.078 2-1/2 1725-0156.078 1725-01 56L078 1 725-0156D078 9 0.0156 (1/64) 1/8 0.125 2-1/2 1725-0156.125 1 725-01 56L1 25 1 725-0156D1 25 0.0200 1/8 0.100 2 1/2 1725-0200.100 1 725-0200L1 00 1 725-0200D1 00 9 0.0200 1/8 0.160 2 1/2 1725-0200.160 1 725-0200L1 60 1 725-0200D1 60 0.0250 1/8 0.125 2 1/2 1725-0250.125 1 725-0250L1 25 1 725-0250D1 25 9 0.0250 1/8 0.203 2 1/2 1725-0250.203 1725-0250L203 1725-0250D203 0.0300 1/8 0.150 2 1/2 1725-0300.150 1 725-0300L1 50 1 725-0300D1 50 9 0.0312 (1/32) 1/8 0.156 2-1/2 1725-0312.156 1 725-0312L1 56 1 725-031 2D1 56 9 0.0312 (1/32) 1/8 0.250 2-1/2 1725-0312.250 1725-0312L250 1 725-031 2D250 9 0.0312 (1/32) 1/8 0.375 2-1/2 1725-0312.375 1725-0312L375 1 725-031 2D375 0.0350 1/8 0.175 2 1/2 1725-0350.175 1 725-0350L1 75 1 725-0350D1 75 0.0400 1/8 0.200 2 1/2 1725-0400.200 1725-0400L200 1725-0400D200 9 0.0400 1/8 0.325 2 1/2 1725-0400.325 1725-0400L325 1725-0400D325 0.0450 1/8 0.225 2 1/2 1725-0450.225 1725-0450L225 1725-0450D225 9 0.0469 (3/64) 1/8 0.250 2-1/2 1725-0469.250 1725-0469L250 1725-0469D250 9 0.0469 (3/64) 1/8 0.375 2-1/2 1725-0469.375 1725-0469L375 1725-0469D375 9 0.0469 (3/64) 1/8 0.570 2-1/2 1725-0469.570 1725-0469L570 1725-0469D570 0.0500 1/8 0.300 2 1/2 1725-0500.300 1725-0500L300 1725-0500D300 9 0.0500 1/8 0.400 2 1/2 1725-0500.400 1725-0500L400 1725-0500D400 0.0550 1/8 0.385 2 1/2 1725-0550.385 1725-0550L385 1725-0550D385 9 0.0600 1/8 0.312 2 1/2 1725-0600.312 1725-0600L312 1 725-0600D312 0.0600 1/8 0.500 2 1/2 1725-0600.500 1725-0600L500 1725-0600D500 9 0.0625 (1/16) 1/8 0.312 2-1/2 1725-0625.312 1725-0625L312 1 725-0625D312 9 0.0625 (1/16) 1/8 0.500 2-1/2 1725-0625.500 1725-0625L500 1725-0625D500 0.0650 1/8 0.500 2 1/2 1725-0650.500 1725-0650L500 1725-0650D500 0.0700 1/8 0.500 2 1/2 1725-0700.500 1725-0700L500 1725-0700D500 0.0750 1/8 0.500 2 1/2 1725-0750.500 1725-0750L500 1725-0750D500 0.0800 1/8 0.750 2 1/2 1725-0800.750 1725-0800L750 1725-0800D750 0.0850 1/8 0.750 2 1/2 1725-0850.750 1725-0850L750 1725-0850D750 0.0900 1/8 0.750 2 1/2 1725-0900.750 1725-0900L750 1725-0900D750 0.0950 1/8 0.750 2 1/2 1725-0950.750 1725-0950L750 1725-0950D750 0.1000 1/8 0.750 2 1/2 1725-1000.750 1 725-1 000L750 1 725-1 000D750 SERIES 1725 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated it: Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 115 END MILLS
