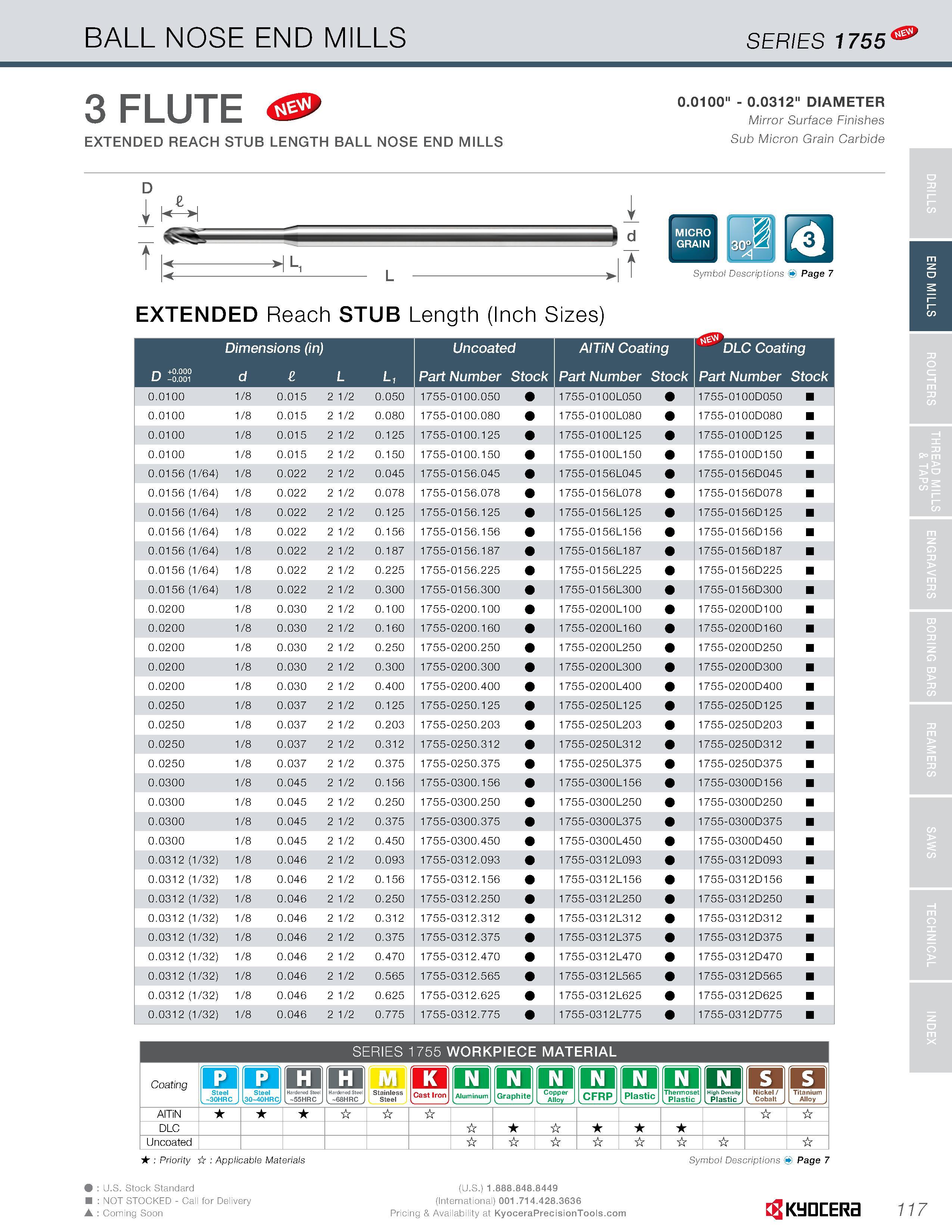

119 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.117

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 117 0119 ENG Lab2u

BALL NOSE END MILLS 0.0100" - 0.0312" DIAMETER Mirror Surface Finishes EXTENDED REACH STUB LENGTH BALL NOSE END MILLS Sub Micron Grain Carbide u -It Ji Symbol Descriptions Page 7 EXTENDED Reach STUB Length (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating ni +0.000 u -0.001 d L L, Part Number Stock Part Number Stock Part Number Stock 0.0100 1/8 0.015 2 1/2 0.050 1755-0100.050 1 755-01 00L050 1755-01 00D050 0.0100 1/8 0.015 2 1/2 0.080 1755-0100.080 1 755-01 00L080 1755-01 00D080 0.0100 1/8 0.015 2 1/2 0.125 1755-0100.125 1 755-01 00L125 1755-01 00D125 0.0100 1/8 0.015 2 1/2 0.150 1755-0100.150 1 755-01 00L150 1755-01 00D150 0.0156 (1/64) 1/8 0.022 2 1/2 0.045 1755-0156.045 1 755-01 56L045 1755-01 56D045 0.0156 (1/64) 1/8 0.022 2 1/2 0.078 1755-0156.078 1 755-01 56L078 1755-01 56D078 0.0156 (1/64) 1/8 0.022 2 1/2 0.125 1755-0156.125 1 755-01 56L125 1755-01 56D125 0.0156 (1/64) 1/8 0.022 2 1/2 0.156 1755-0156.156 1 755-01 56L156 1755-01 56D156 0.0156 (1/64) 1/8 0.022 2 1/2 0.187 1755-0156.187 1 755-01 56L187 1755-01 56D187 0.0156 (1/64) 1/8 0.022 2 1/2 0.225 1755-0156.225 1 755-01 56L225 1755-01 56D225 0.0156 (1/64) 1/8 0.022 2 1/2 0.300 1755-0156.300 1 755-01 56L300 1755-01 56D300 0.0200 1/8 0.030 2 1/2 0.100 1755-0200.100 1 755-0200L100 1755-0200D100 0.0200 1/8 0.030 2 1/2 0.160 1755-0200.160 1 755-0200L160 1755-0200D160 0.0200 1/8 0.030 2 1/2 0.250 1755-0200.250 1755-0200L250 1755-0200D250 0.0200 1/8 0.030 2 1/2 0.300 1755-0200.300 1755-0200L300 1755-0200D300 0.0200 1/8 0.030 2 1/2 0.400 1755-0200.400 1755-0200L400 1755-0200D400 0.0250 1/8 0.037 2 1/2 0.125 1755-0250.125 1 755-0250L125 1755-0250D125 0.0250 1/8 0.037 2 1/2 0.203 1755-0250.203 1755-0250L203 1755-0250D203 0.0250 1/8 0.037 2 1/2 0.312 1755-0250.312 1 755-0250L31 2 1755-0250D31 2 0.0250 1/8 0.037 2 1/2 0.375 1755-0250.375 1755-0250L375 1755-0250D375 0.0300 1/8 0.045 2 1/2 0.156 1755-0300.156 1 755-0300L156 1755-0300D156 0.0300 1/8 0.045 2 1/2 0.250 1755-0300.250 1755-0300L250 1755-0300D250 0.0300 1/8 0.045 2 1/2 0.375 1755-0300.375 1755-0300L375 1755-0300D375 0.0300 1/8 0.045 2 1/2 0.450 1755-0300.450 1755-0300L450 1755-0300D450 0.0312 (1/32) 1/8 0.046 2 1/2 0.093 1755-0312.093 1 755-031 2L093 1755-031 2D093 0.0312 (1/32) 1/8 0.046 2 1/2 0.156 1755-0312.156 1 755-031 2L156 1755-031 2D156 0.0312 (1/32) 1/8 0.046 2 1/2 0.250 1755-0312.250 1755-0312L250 1755-031 2D250 0.0312 (1/32) 1/8 0.046 2 1/2 0.312 1755-0312.312 1755-031 2L312 1755-031 2D31 2 0.0312 (1/32) 1/8 0.046 2 1/2 0.375 1755-0312.375 1 755-031 2L375 1755-031 2D375 0.0312 (1/32) 1/8 0.046 2 1/2 0.470 1755-0312.470 1 755-031 2L470 1755-031 2D470 0.0312 (1/32) 1/8 0.046 2 1/2 0.565 1755-0312.565 1 755-031 2L565 1755-031 2D565 0.0312 (1/32) 1/8 0.046 2 1/2 0.625 1755-0312.625 1755-0312L625 1755-031 2D625 0.0312 (1/32) 1/8 0.046 2 1/2 0.775 1755-0312.775 1755-031 2L775 1755-031 2D775 SERIES 1755 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . O . Plastic I s I 'I si j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Corning Soon (U.S.) (International) 001.714.428.3636 i un Pricing & Availability 117 END MILLS
