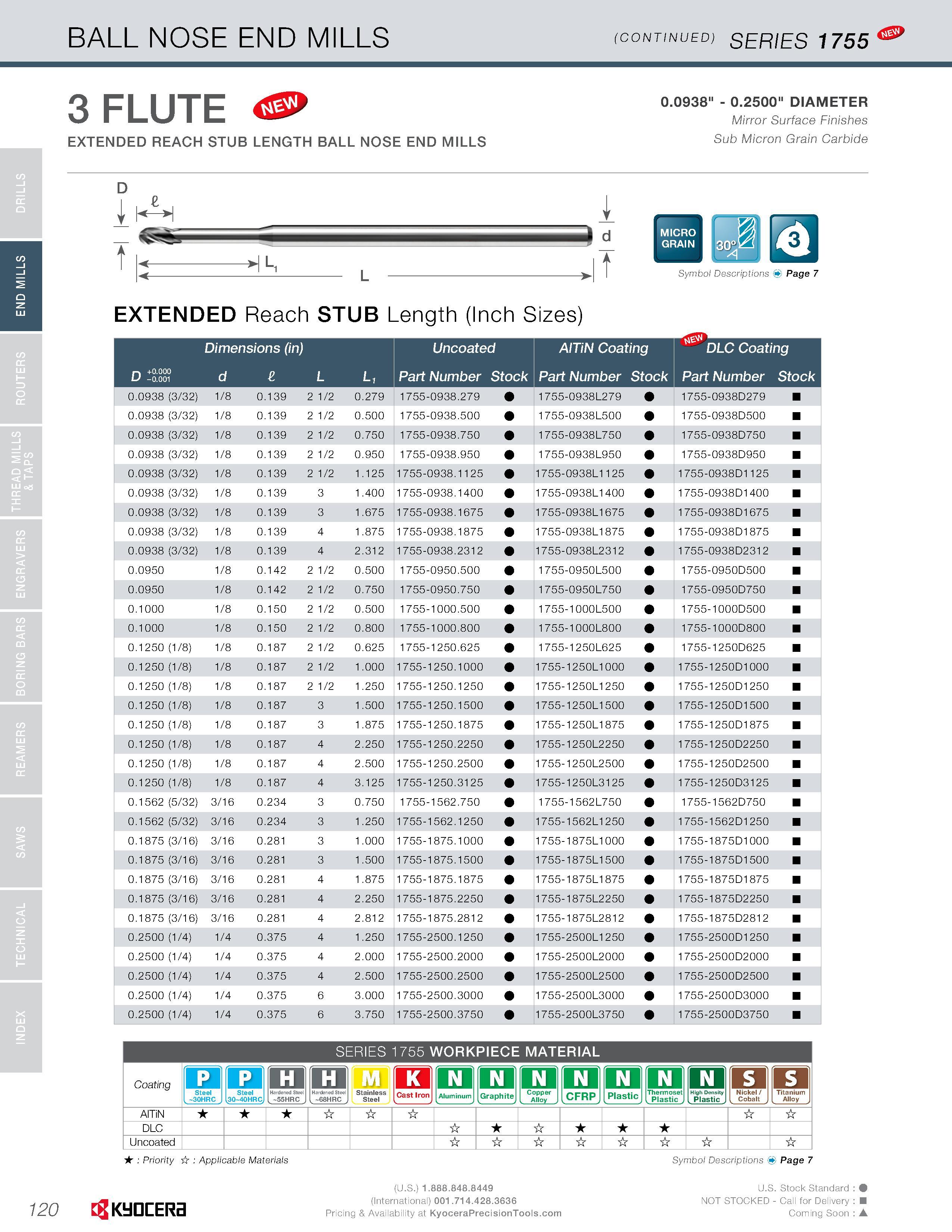

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1755 120 3 FLUTE 0.0938" - 0.2500" DIAMETER Mirror Surface Finishes EXTENDED REACH STUB LENGTH BALL NOSE END MILLS Sub Micron Grain Carbide t EXTENDED Reach STUB Length (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating r-k +0.000 u -0.001 d L L1 Part Number Stock Part Number Stock Part Number Stock Ji Jt Symbol Descriptions Page 7 0.0938 (3/32) 1/8 0.139 2 1/2 0.279 1755-0938.279 1755-0938L279 1755-0938D279 0.0938 (3/32) 1/8 0.139 2 1/2 0.500 1755-0938.500 1755-0938L500 1755-0938D500 0.0938 (3/32) 1/8 0.139 2 1/2 0.750 1755-0938.750 1755-0938L750 1755-0938D750 0.0938 (3/32) 1/8 0.139 2 1/2 0.950 1755-0938.950 1755-0938L950 1755-0938D950 0.0938 (3/32) 1/8 0.139 2 1/2 1.125 1755-0938.1125 1755-0938L1125 1 755-0938D1125 0.0938 (3/32) 1/8 0.139 3 1.400 1755-0938.1400 1755-0938L1400 1 755-0938D1 400 0.0938 (3/32) 1/8 0.139 3 1.675 1755-0938.1675 1755-0938L1675 1 755-0938D1 675 0.0938 (3/32) 1/8 0.139 4 1.875 1755-0938.1875 1755-0938L1875 1 755-0938D1 875 0.0938 (3/32) 1/8 0.139 4 2.312 1755-0938.2312 1755-0938L2312 1 755-0938D231 2 0.0950 1/8 0.142 2 1/2 0.500 1755-0950.500 1755-0950L500 1755-0950D500 0.0950 1/8 0.142 2 1/2 0.750 1755-0950.750 1755-0950L750 1755-0950D750 0.1000 1/8 0.150 2 1/2 0.500 1755-1000.500 1 755-1 000L500 1755-1000D500 0.1000 1/8 0.150 2 1/2 0.800 1755-1000.800 1 755-1 000L800 1755-1000D800 0.1250 (1/8) 1/8 0.187 2 1/2 0.625 1755-1250.625 1 755-1 250L625 1755-1250D625 0.1250 (1/8) 1/8 0.187 2 1/2 1.000 1755-1250.1000 1755-1250L1 000 1 755-1250D1 000 0.1250 (1/8) 1/8 0.187 2 1/2 1.250 1755-1250.1250 1755-1250L1250 1 755-1250D1 250 0.1250 (1/8) 1/8 0.187 3 1.500 1755-1250.1500 1755-1250L1500 1 755-1250D1 500 0.1250 (1/8) 1/8 0.187 3 1.875 1755-1250.1875 1755-1250L1875 1 755-1250D1 875 0.1250 (1/8) 1/8 0.187 4 2.250 1755-1250.2250 1755-1250L2250 1 755-1250D2250 0.1250 (1/8) 1/8 0.187 4 2.500 1755-1250.2500 1755-1250L2500 1 755-1250D2500 0.1250 (1/8) 1/8 0.187 4 3.125 1755-1250.3125 1755-1250L31 25 1 755-1250D3125 0.1562 (5/32) 3/16 0.234 3 0.750 1755-1562.750 1 755-1 562L750 1755-1562D750 0.1562 (5/32) 3/16 0.234 3 1.250 1755-1562.1250 1755-1562L1 250 1 755-1562D1 250 0.1875 (3/1 6) 3/16 0.281 3 1.000 1755-1875.1000 1755-1875L1000 1 755-1875D1 000 0.1875 3/1 6) 3/16 0.281 3 1.500 1755-1875.1500 1755-1875L1500 1 755-1875D1 500 0.1875 (3/1 6) 3/16 0.281 4 1.875 1755-1875.1875 1755-1875L1875 1 755-1875D1 875 0.1875 3/1 6) 3/16 0.281 4 2.250 1755-1875.2250 1755-1875L2250 1 755-1875D2250 0.1875 3/1 6) 3/16 0.281 4 2.812 1755-1875.2812 1755-1875L2812 1 755-1875D281 2 0.2500 (1/4) 1/4 0.375 4 1.250 1755-2500.1250 1755-2500L1250 1 755-2500D1 250 0.2500 (1/4) 1/4 0.375 4 2.000 1755-2500.2000 1755-2500L2000 1755-2500D2000 0.2500 (1/4) 1/4 0.375 4 2.500 1755-2500.2500 1755-2500L2500 1755-2500D2500 0.2500 (1/4) 1/4 0.375 6 3.000 1755-2500.3000 1755-2500L3000 1755-2500D3000 0.2500 (1/4) 1/4 0.375 6 3.750 1755-2500.3750 1755-2500L3750 1755-2500D3750 SERIES 1755 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . O . Plastic I s I 'Is I j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon (U.S.) wC.P l/Unrmi (International) 001.714.428.3636 l\.-jULtl\d Pricing & Availability at
