123 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.121

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 121 0123 ENG Lab2u

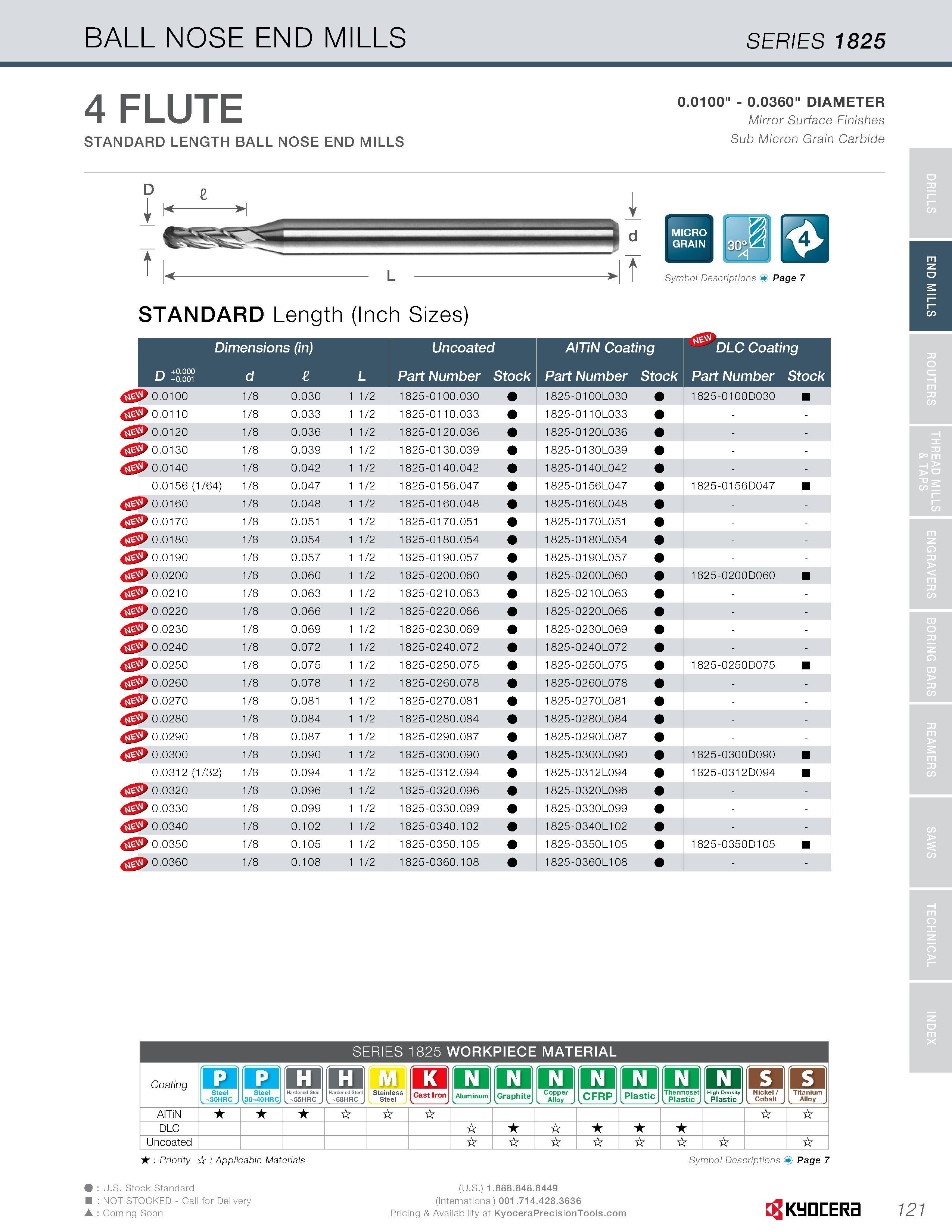

BALL NOSE END MILLS SERIES 1825 4 FLUTE STANDARD LENGTH BALL NOSE END MILLS 0.0100" - 0.0360" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide D I h H tu. i -It a Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) Dimensions (in) +0.000 _i n O -0.001 O L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock S> 0.0100 1/8 0.030 1 1/2 1825-0100.030 1825-01 00L030 1 825-0100D030 S> 0.0110 1/8 0.033 1 1/2 1825-0110.033 1825-0110L033 - S> 0.0120 1/8 0.036 1 1/2 1825-0120.036 1825-01 20L036 - S> 0.0130 1/8 0.039 1 1/2 1825-0130.039 1825-01 30L039 - S> 0.0140 1/8 0.042 1 1/2 1825-0140.042 1825-01 40L042 - 0.0156 (1/64) 1/8 0.047 1 1/2 1825-0156.047 1825-01 56L047 1 825-0156D047 S> 0.0160 1/8 0.048 1 1/2 1825-0160.048 1825-01 60L048 - S> 0.0170 1/8 0.051 1 1/2 1825-0170.051 1825-01 70L051 - S> 0.0180 1/8 0.054 1 1/2 1825-0180.054 1825-01 80L054 - S> 0.0190 1/8 0.057 1 1/2 1825-0190.057 1825-01 90L057 - S> 0.0200 1/8 0.060 1 1/2 1825-0200.060 1825-0200L060 1825-0200D060 S> 0.0210 1/8 0.063 1 1/2 1825-0210.063 1825-0210L063 - S> 0.0220 1/8 0.066 1 1/2 1825-0220.066 1825-0220L066 - S> 0.0230 1/8 0.069 1 1/2 1825-0230.069 1825-0230L069 - S> 0.0240 1/8 0.072 1 1/2 1825-0240.072 1825-0240L072 - S> 0.0250 1/8 0.075 1 1/2 1825-0250.075 1825-0250L075 1825-0250D075 S> 0.0260 1/8 0.078 1 1/2 1825-0260.078 1825-0260L078 - S> 0.0270 1/8 0.081 1 1/2 1825-0270.081 1825-0270L081 - S> 0.0280 1/8 0.084 1 1/2 1825-0280.084 1825-0280L084 - S> 0.0290 1/8 0.087 1 1/2 1825-0290.087 1825-0290L087 - S> 0.0300 1/8 0.090 1 1/2 1825-0300.090 1825-0300L090 1825-0300D090 0.0312 (1/32) 1/8 0.094 1 1/2 1825-0312.094 1825-0312L094 1 825-031 2D094 S> 0.0320 1/8 0.096 1 1/2 1825-0320.096 1825-0320L096 - S> 0.0330 1/8 0.099 1 1/2 1825-0330.099 1825-0330L099 - S> 0.0340 1/8 0.102 1 1/2 1825-0340.102 1 825-0340L1 02 - S> 0.0350 1/8 0.105 1 1/2 1825-0350.105 1 825-0350L1 05 1 825-0350D1 05 0.0360 1/8 0.108 1 1/2 1825-0360.108 1 825-0360L1 08 - SERIES 1825 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast IronJ Nickel/ t Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 121 END MILLS
