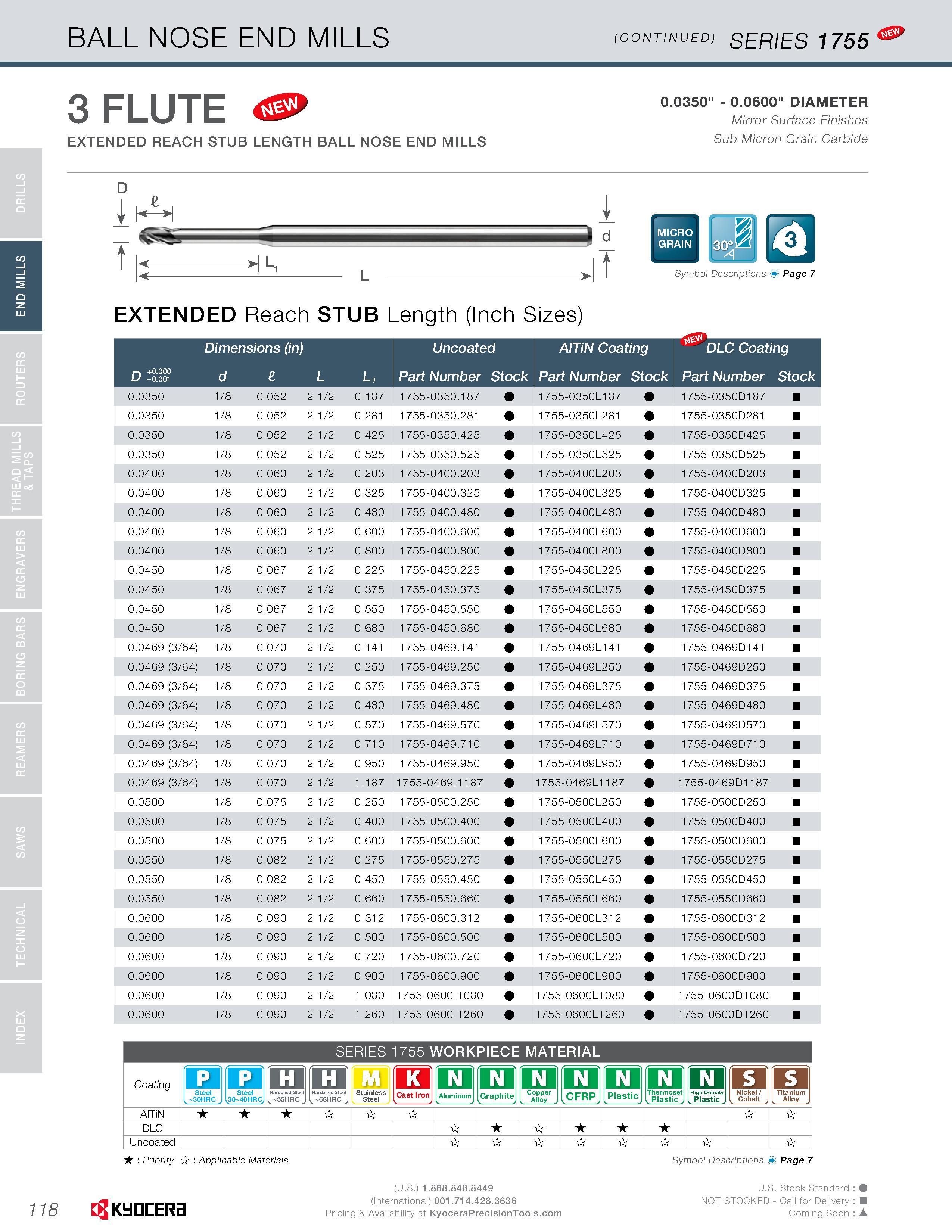

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1755 118 3 FLUTE 0.0350" - 0.0600" DIAMETER Mirror Surface Finishes EXTENDED REACH STUB LENGTH BALL NOSE END MILLS Sub Micron Grain Carbide D tl J -It Symbol Descriptions G EXTENDED Reach STUB Length (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating r-k +0.000 U -0.001 d L L1 Part Number Stock Part Number Stock Part Number Stock 0.0350 1/8 0.052 2 1/2 0.187 1755-0350.187 1 755-0350L1 87 1755-0350D187 0.0350 1/8 0.052 2 1/2 0.281 1755-0350.281 1755-0350L281 1755-0350D281 0.0350 1/8 0.052 2 1/2 0.425 1755-0350.425 1755-0350L425 1755-0350D425 0.0350 1/8 0.052 2 1/2 0.525 1755-0350.525 1755-0350L525 1755-0350D525 0.0400 1/8 0.060 2 1/2 0.203 1755-0400.203 1755-0400L203 1755-0400D203 0.0400 1/8 0.060 2 1/2 0.325 1755-0400.325 1755-0400L325 1755-0400D325 0.0400 1/8 0.060 2 1/2 0.480 1755-0400.480 1755-0400L480 1755-0400D480 0.0400 1/8 0.060 2 1/2 0.600 1755-0400.600 1755-0400L600 1755-0400D600 0.0400 1/8 0.060 2 1/2 0.800 1755-0400.800 1755-0400L800 1755-0400D800 0.0450 1/8 0.067 2 1/2 0.225 1755-0450.225 1755-0450L225 1755-0450D225 0.0450 1/8 0.067 2 1/2 0.375 1755-0450.375 1755-0450L375 1755-0450D375 0.0450 1/8 0.067 2 1/2 0.550 1755-0450.550 1755-0450L550 1755-0450D550 0.0450 1/8 0.067 2 1/2 0.680 1755-0450.680 1755-0450L680 1755-0450D680 0.0469 (3/64) 1/8 0.070 2 1/2 0.141 1755-0469.141 1 755-0469L1 41 1755-0469D141 0.0469 (3/64) 1/8 0.070 2 1/2 0.250 1755-0469.250 1755-0469L250 1755-0469D250 0.0469 (3/64) 1/8 0.070 2 1/2 0.375 1755-0469.375 1755-0469L375 1755-0469D375 0.0469 (3/64) 1/8 0.070 2 1/2 0.480 1755-0469.480 1755-0469L480 1755-0469D480 0.0469 (3/64) 1/8 0.070 2 1/2 0.570 1755-0469.570 1755-0469L570 1755-0469D570 0.0469 (3/64) 1/8 0.070 2 1/2 0.710 1755-0469.710 1 755-0469L71 0 1755-0469D71 0 0.0469 (3/64) 1/8 0.070 2 1/2 0.950 1755-0469.950 1755-0469L950 1755-0469D950 0.0469 (3/64) 1/8 0.070 2 1/2 1.187 1755-0469.1187 1755-0469L1187 1 755-0469D1187 0.0500 1/8 0.075 2 1/2 0.250 1755-0500.250 1755-0500L250 1755-0500D250 0.0500 1/8 0.075 2 1/2 0.400 1755-0500.400 1755-0500L400 1755-0500D400 0.0500 1/8 0.075 2 1/2 0.600 1755-0500.600 1755-0500L600 1755-0500D600 0.0550 1/8 0.082 2 1/2 0.275 1755-0550.275 1755-0550L275 1755-0550D275 0.0550 1/8 0.082 2 1/2 0.450 1755-0550.450 1755-0550L450 1755-0550D450 0.0550 1/8 0.082 2 1/2 0.660 1755-0550.660 1755-0550L660 1755-0550D660 0.0600 1/8 0.090 2 1/2 0.312 1755-0600.312 1 755-0600L31 2 1755-0600D31 2 0.0600 1/8 0.090 2 1/2 0.500 1755-0600.500 1755-0600L500 1755-0600D500 0.0600 1/8 0.090 2 1/2 0.720 1755-0600.720 1755-0600L720 1755-0600D720 0.0600 1/8 0.090 2 1/2 0.900 1755-0600.900 1755-0600L900 1755-0600D900 0.0600 1/8 0.090 2 1/2 1.080 1755-0600.1080 1755-0600L1 080 1 755-0600D1 080 0.0600 1/8 0.090 2 1/2 1.260 1755-0600.1260 1755-0600L1260 1 755-0600D1 260 SERIES 1755 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I 'Is I j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority tV Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon (U.S.) wC.P lAUnrrni (International) 001.714.428.3636 l\.-jULtl\d Pricing & Availability at
