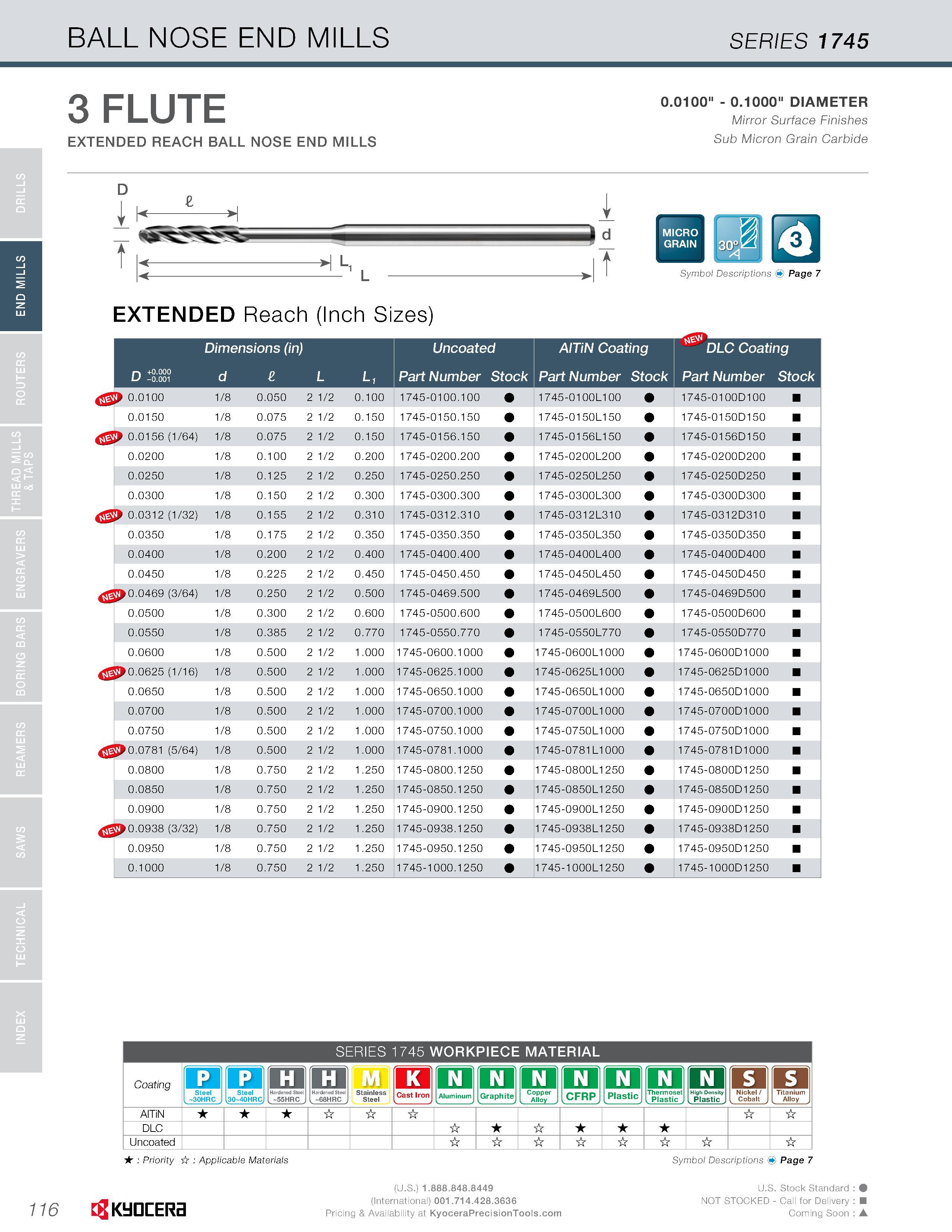

END MILLS BALL NOSE END MILLS SERIES 1745 116 3 FLUTE EXTENDED REACH BALL NOSE END MILLS 0.0100" - 0.1000" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide th i Jt Symbol Descriptions Page 7 EXTENDED Reach (Inch Sizes) +0.000 U -0.001 Dimensions (in) d e L L, Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock f 0.0100 1/8 0.050 2 1/2 0.100 1745-0100.100 1 745-01 00L1 00 1745-01 00D100 0.0150 1/8 0.075 2 1/2 0.150 1745-0150.150 1 745-01 50L1 50 1745-01 50D150 P 0.0156 (1/64) 1/8 0.075 2 1/2 0.150 1745-0156.150 1 745-01 56L1 50 1745-01 56D150 0.0200 1/8 0.100 2 1/2 0.200 1745-0200.200 1745-0200L200 1745-0200D200 0.0250 1/8 0.125 2 1/2 0.250 1745-0250.250 1745-0250L250 1745-0250D250 0.0300 1/8 0.150 2 1/2 0.300 1745-0300.300 1745-0300L300 1745-0300D300 f 0.0312 (1/32) 1/8 0.155 2 1/2 0.310 1745-0312.310 1745-0312L310 1745-0312D31 0 0.0350 1/8 0.175 2 1/2 0.350 1745-0350.350 1745-0350L350 1745-0350D350 0.0400 1/8 0.200 2 1/2 0.400 1745-0400.400 1745-0400L400 1745-0400D400 0.0450 1/8 0.225 2 1/2 0.450 1745-0450.450 1745-0450L450 1745-0450D450 j>0.0469 (3/64) 1/8 0.250 2 1/2 0.500 1745-0469.500 1745-0469L500 1745-0469D500 0.0500 1/8 0.300 2 1/2 0.600 1745-0500.600 1745-0500L600 1745-0500D600 0.0550 1/8 0.385 2 1/2 0.770 1745-0550.770 1745-0550L770 1745-0550D770 0.0600 1/8 0.500 2 1/2 1.000 1745-0600.1000 1 745-0600L1 000 1745-0600D1000 £>0.0625 (1/16) 1/8 0.500 2 1/2 1.000 1745-0625.1000 1 745-0625L1 000 1745-0625D1000 0.0650 1/8 0.500 2 1/2 1.000 1745-0650.1000 1 745-0650L1 000 1745-0650D1000 0.0700 1/8 0.500 2 1/2 1.000 1745-0700.1000 1 745-0700L1 000 1745-0700D1000 0.0750 1/8 0.500 2 1/2 1.000 1745-0750.1000 1 745-0750L1 000 1745-0750D1000 £>0.0781 (5/64) 1/8 0.500 2 1/2 1.000 1745-0781.1000 1 745-0781 L1 000 1745-0781 D1000 0.0800 1/8 0.750 2 1/2 1.250 1745-0800.1250 1 745-0800L1 250 1745-0800D1250 0.0850 1/8 0.750 2 1/2 1.250 1745-0850.1250 1 745-0850L1 250 1745-0850D1250 0.0900 1/8 0.750 2 1/2 1.250 1745-0900.1250 1 745-0900L1 250 1745-0900D1250 £>0.0938 (3/32) 1/8 0.750 2 1/2 1.250 1745-0938.1250 1 745-0938L1 250 1745-0938D1250 0.0950 1/8 0.750 2 1/2 1.250 1745-0950.1250 1 745-0950L1 250 1745-0950D1250 0.1000 1/8 0.750 2 1/2 1.250 1745-1000.1250 1 745-1 000L1 250 1745-1000D1250 SERIES 1745 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast IronJ Nickel/ t Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
