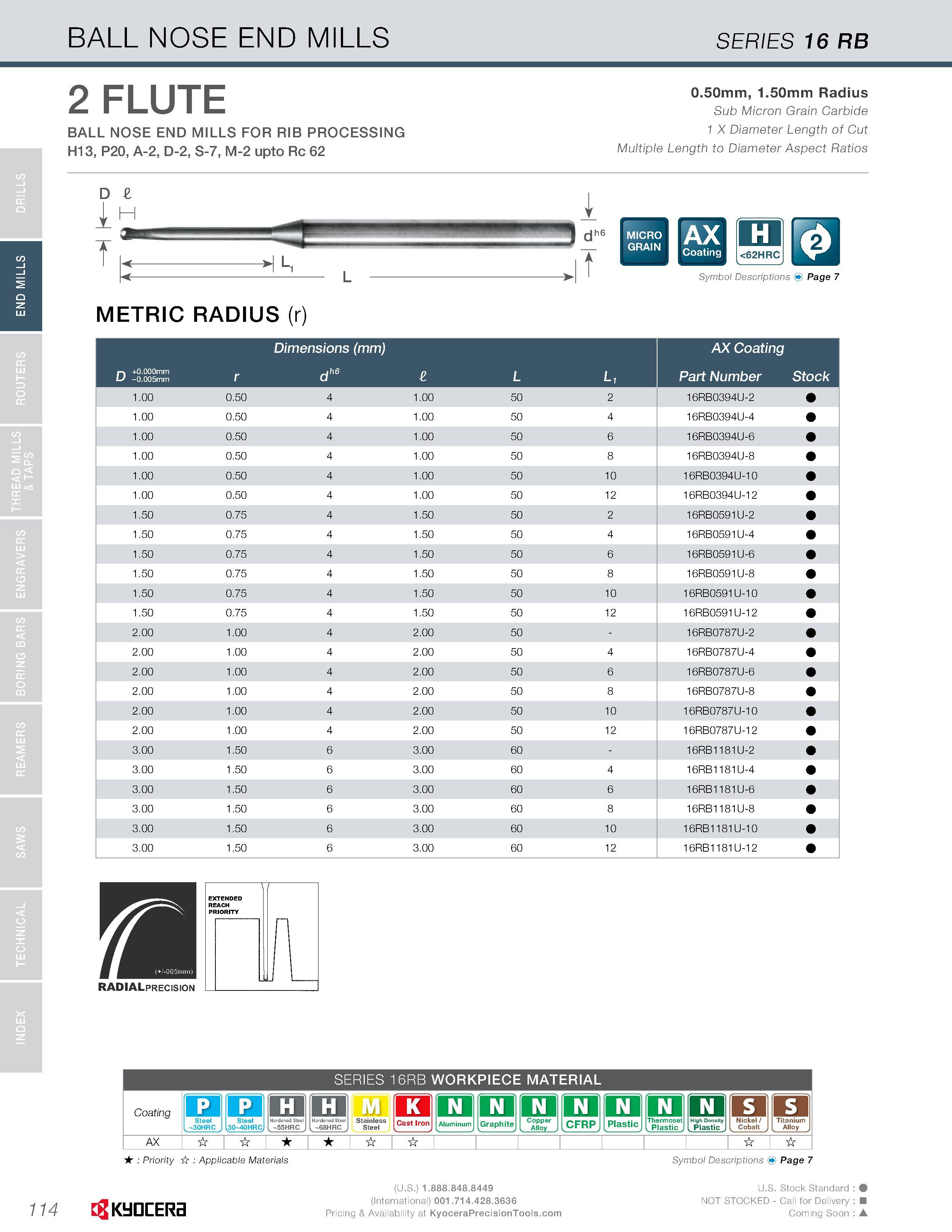

END MILLS BALL NOSE END MILLS SERIES 16 RB 114 2 FLUTE BALL NOSE END MILLS FOR RIB PROCESSING H13, P20, A-2, D-2, S-7, M-2 upto Rc 62 0.50mm, 1.50mm Radius Sub Micron Grain Carbide 1 X Diameter Length of Cut Multiple Length to Diameter Aspect Ratios D I I T i MICRO I AY GRAIN I L r H 1 <62HRCJ Symbol Descriptions Page 7 METRIC RADIUS (r) Dimensions (mm) AX Coating PI +0.000mm LJ -0.005mm r dhG L Li Part Number Stock 1.00 0.50 4 1.00 50 2 16RB0394U-2 1.00 0.50 4 1.00 50 4 16RB0394U-4 1.00 0.50 4 1.00 50 6 16RB0394U-6 1.00 0.50 4 1.00 50 8 16RB0394U-8 1.00 0.50 4 1.00 50 10 16RB0394U-10 1.00 0.50 4 1.00 50 12 16RB0394U-12 1.50 0.75 4 1.50 50 2 16RB0591U-2 1.50 0.75 4 1.50 50 4 16RB0591U-4 1.50 0.75 4 1.50 50 6 16RB0591U-6 1.50 0.75 4 1.50 50 8 16RB0591U-8 1.50 0.75 4 1.50 50 10 16RB0591U-10 1.50 0.75 4 1.50 50 12 16RB0591U-12 2.00 1.00 4 2.00 50 16RB0787U-2 2.00 1.00 4 2.00 50 4 16RB0787U-4 2.00 1.00 4 2.00 50 6 16RB0787U-6 2.00 1.00 4 2.00 50 8 16RB0787U-8 2.00 1.00 4 2.00 50 10 16RB0787U-10 2.00 1.00 4 2.00 50 12 16RB0787U-12 3.00 1.50 6 3.00 60 16RB1181 U-2 3.00 1.50 6 3.00 60 4 16RB1181 U-4 3.00 1.50 6 3.00 60 6 16RB1181 U-6 3.00 1.50 6 3.00 60 8 16RB1181 U-8 3.00 1.50 6 3.00 60 10 16RB1181 U-10 3.00 1.50 6 3.00 60 12 16RB1181 U-12 EXTENDED REACH PRIORITY RADIALprecision SERIES 16RB WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel nn Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset . Plastic . O Plastic m m j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J AX Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
