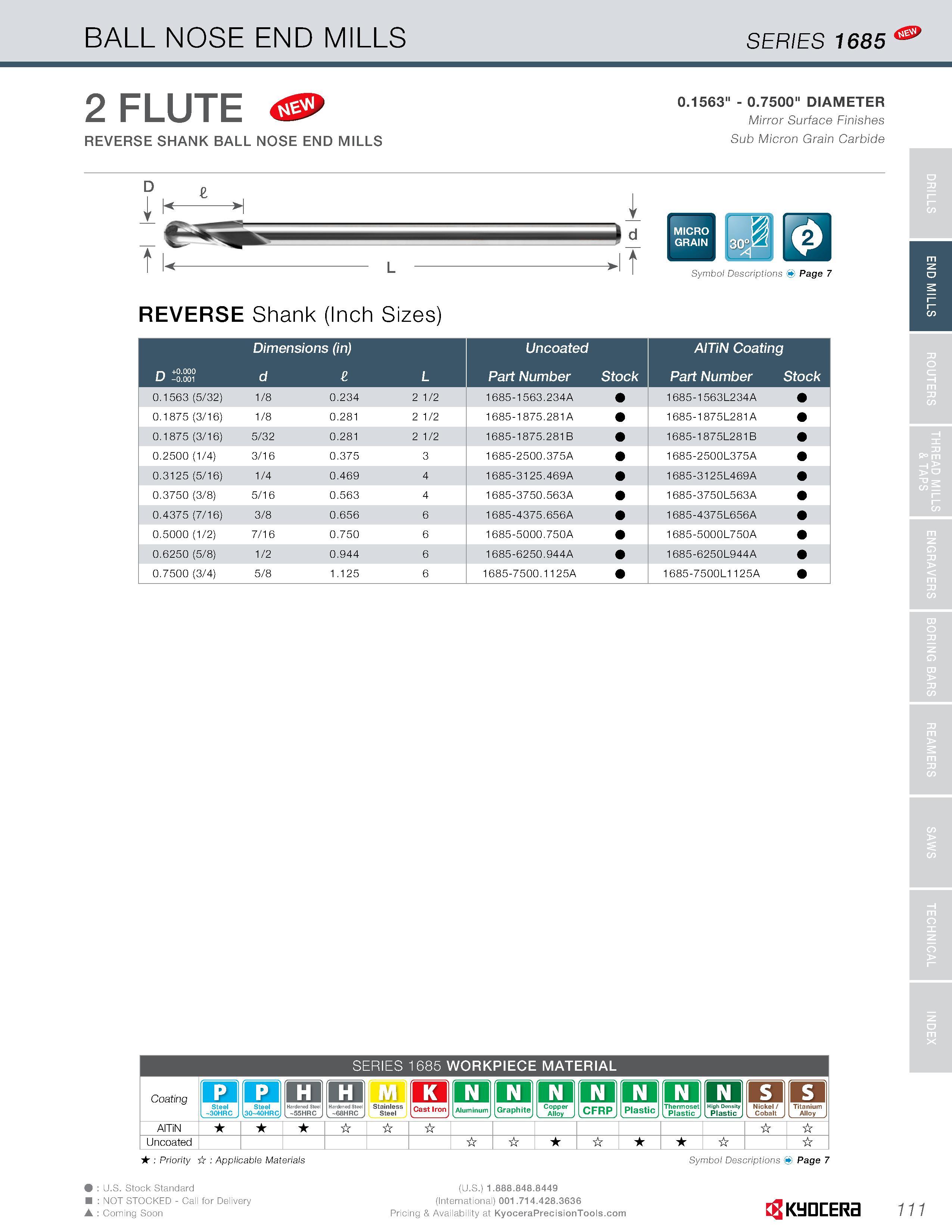

BALL NOSE END MILLS 2 FLUTE < > REVERSE SHANK BALL NOSE END MILLS 0.1563" - 0.7500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide D tk i -it J Symbol Descriptions Page 7 REVERSE Shank (Inch Sizes) Dimensions (in) Uncoated AITiN Coating r- +0.000 U -0.001 d L Part Number Stock Part Number Stock 0.1563 (5/32) 1/8 0.234 2 1/2 1685-1 563.234A 1 685-1 563L234A 0.1875 (3/16) 1/8 0.281 2 1/2 1685-1875.281A 1 685-1 875L281A 0.1875 (3/16) 5/32 0.281 2 1/2 1685-1875.281B 1685-1 875L281 B 0.2500 (1/4) 3/16 0.375 3 1 685-2500.375A 1685-2500L375A 0.3125 (5/16) 1/4 0.469 4 1685-31 25.469A 1 685-3125L469A 0.3750 (3/8) 5/16 0.563 4 1 685-3750.563A 1685-3750L563A 0.4375 (7/16) 3/8 0.656 6 1 685-4375.656A 1685-4375L656A 0.5000 (1/2) 7/16 0.750 6 1 685-5000.750A 1685-5000L750A 0.6250 (5/8) 1/2 0.944 6 1 685-6250.944A 1685-6250L944A 0.7500 (3/4) 5/8 1.125 6 1685-7500.1125A 1 685-7500 L1125A SERIES 1685 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 111 END MILLS
