112 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.110

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 110 0112 ENG Lab2u

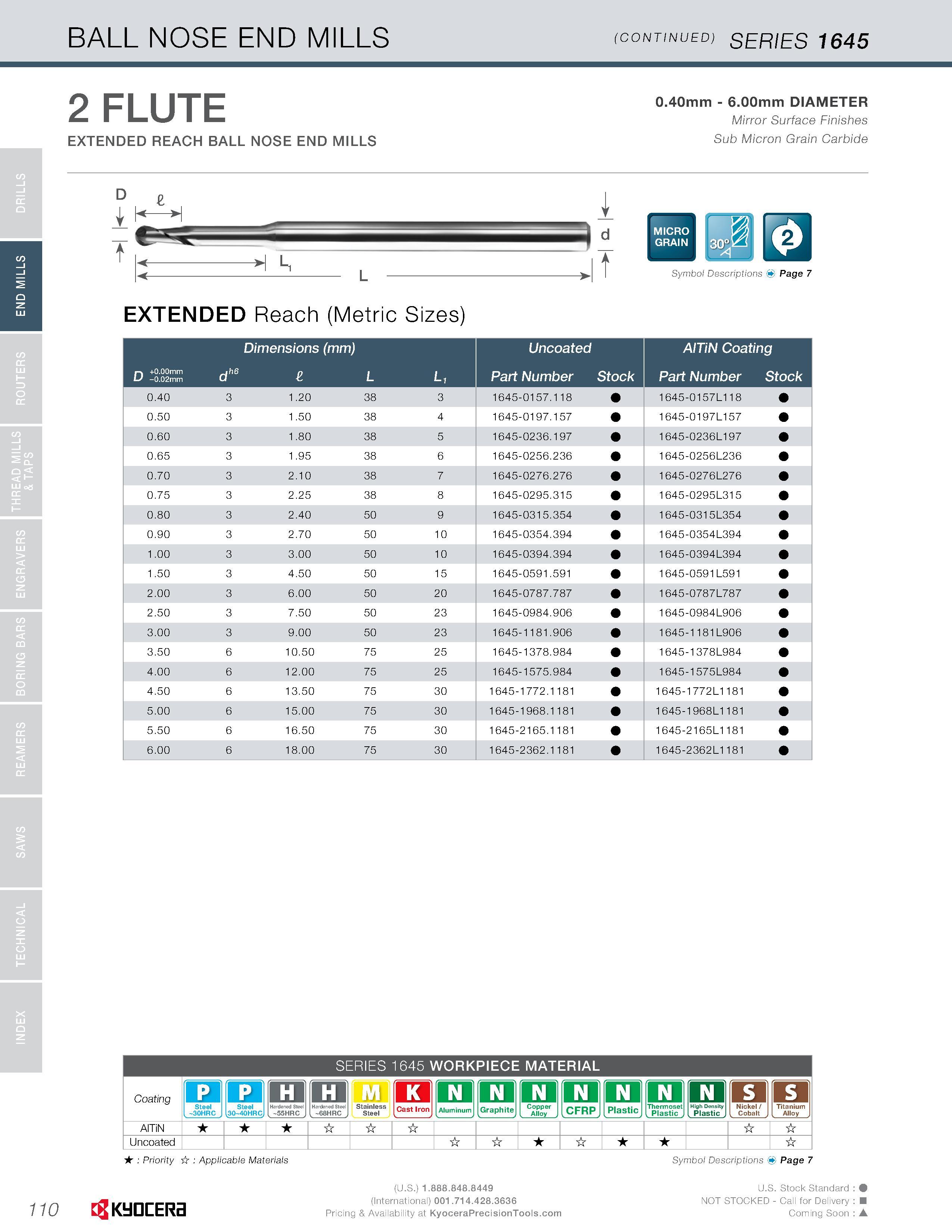

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1645 110 2 FLUTE EXTENDED REACH BALL NOSE END MILLS 0.40mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide L, Symbol Descriptions Page 7 EXTENDED Reach (Metric Sizes) PI +0.00mm LJ -0.02mm dhG Dimensions (mm) L Uncoated Part Number Stock AITiN Coating Part Number Stock 0.40 3 1.20 38 3 1645-0157.118 1645-0157L118 0.50 3 1.50 38 4 1645-0197.157 1645-0197L157 0.60 3 1.80 38 5 1645-0236.197 1645-0236L197 0.65 3 1.95 38 6 1645-0256.236 1645-0256L236 0.70 3 2.10 38 7 1645-0276.276 1645-0276L276 0.75 3 2.25 38 8 1645-0295.315 1645-0295L315 0.80 3 2.40 50 9 1645-0315.354 1645-031 5L354 0.90 3 2.70 50 10 1645-0354.394 1645-0354L394 1.00 3 3.00 50 10 1645-0394.394 1645-0394L394 1.50 3 4.50 50 15 1645-0591.591 1645-0591L591 2.00 3 6.00 50 20 1645-0787.787 1645-0787L787 2.50 3 7.50 50 23 1645-0984.906 1645-0984L906 3.00 3 9.00 50 23 1645-1181.906 1645-1181 L906 3.50 6 10.50 75 25 1645-1378.984 1645-1 378L984 4.00 6 12.00 75 25 1645-1575.984 1645-1 575L984 4.50 6 13.50 75 30 1645-1772.1181 1 645-1 772L1181 5.00 6 15.00 75 30 1645-1968.1181 1 645-1 968L1181 5.50 6 16.50 75 30 1645-2165.1181 1 645-2165L1181 6.00 6 18.00 75 30 1645-2362.1181 1645-2362L1181 SERIES 1645 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC 2A Stainless Steel Kl o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic O Plastic I s I 'IS I Cast IronJ Nickel/ Cobalt J Titanium Alloy J AITiN Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
