110 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.108

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 108 0110 ENG Lab2u

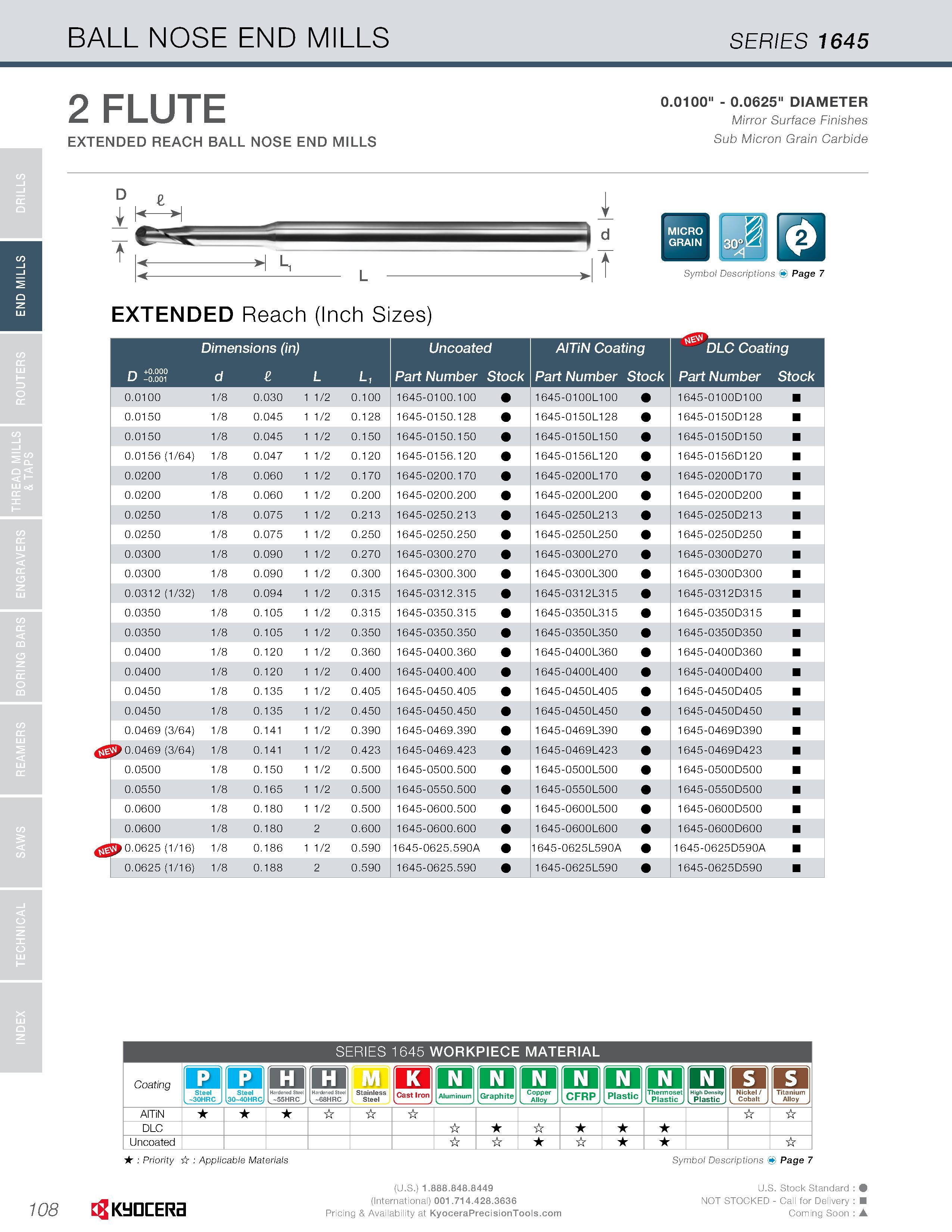

END MILLS BALL NOSE END MILLS SERIES 1645 108 2 FLUTE 0.0100" - 0.0625" DIAMETER Mirror Surface Finishes EXTENDED REACH BALL NOSE END MILLS Sub Micron Grain Carbide L, Symbol Descriptions Page 7 EXTENDED Reach (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating r-v +0.000 Lf -0.001 d L L, Part Number Stock Part Number Stock Part Number Stock 0.0100 1/8 0.030 1 1/2 0.100 1645-0100.100 1 645-0100L100 1 645-0100D1 00 0.0150 1/8 0.045 1 1/2 0.128 1645-0150.128 1 645-0150L128 1 645-0150D1 28 0.0150 1/8 0.045 1 1/2 0.150 1645-0150.150 1 645-0150L150 1 645-0150D1 50 0.0156 (1/64) 1/8 0.047 1 1/2 0.120 1645-0156.120 1 645-0156L120 1 645-0156D1 20 0.0200 1/8 0.060 1 1/2 0.170 1645-0200.170 1 645-0200L170 1 645-0200D1 70 0.0200 1/8 0.060 1 1/2 0.200 1645-0200.200 1645-0200L200 1645-0200D200 0.0250 1/8 0.075 1 1/2 0.213 1645-0250.213 1645-0250L213 1 645-0250D21 3 0.0250 1/8 0.075 1 1/2 0.250 1645-0250.250 1645-0250L250 1645-0250D250 0.0300 1/8 0.090 1 1/2 0.270 1645-0300.270 1645-0300L270 1645-0300D270 0.0300 1/8 0.090 1 1/2 0.300 1645-0300.300 1645-0300L300 1645-0300D300 0.0312 (1/32) 1/8 0.094 1 1/2 0.315 1645-0312.315 1 645-031 2L31 5 1 645-031 2D31 5 0.0350 1/8 0.105 1 1/2 0.315 1645-0350.315 1 645-0350L31 5 1 645-0350D31 5 0.0350 1/8 0.105 1 1/2 0.350 1645-0350.350 1645-0350L350 1645-0350D350 0.0400 1/8 0.120 1 1/2 0.360 1645-0400.360 1645-0400L360 1645-0400D360 0.0400 1/8 0.120 1 1/2 0.400 1645-0400.400 1645-0400L400 1645-0400D400 0.0450 1/8 0.135 1 1/2 0.405 1645-0450.405 1645-0450L405 1645-0450D405 0.0450 1/8 0.135 1 1/2 0.450 1645-0450.450 1645-0450L450 1645-0450D450 0.0469 (3/64) 1/8 0.141 1 1/2 0.390 1645-0469.390 1645-0469L390 1645-0469D390 0.0469 (3/64) 1/8 0.141 1 1/2 0.423 1645-0469.423 1645-0469L423 1645-0469D423 0.0500 1/8 0.150 1 1/2 0.500 1645-0500.500 1645-0500L500 1645-0500D500 0.0550 1/8 0.165 1 1/2 0.500 1645-0550.500 1645-0550L500 1645-0550D500 0.0600 1/8 0.180 1 1/2 0.500 1645-0600.500 1645-0600L500 1645-0600D500 0.0600 1/8 0.180 2 0.600 1645-0600.600 1645-0600L600 1645-0600D600 0.0625 (1/16) 1/8 0.186 1 1/2 0.590 1645-0625.590A 1645-0625L590A 1645-0625D590A 0.0625 (1/16) 1/8 0.188 2 0.590 1645-0625.590 1645-0625L590 1645-0625D590 SERIES 1645 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s s I j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
