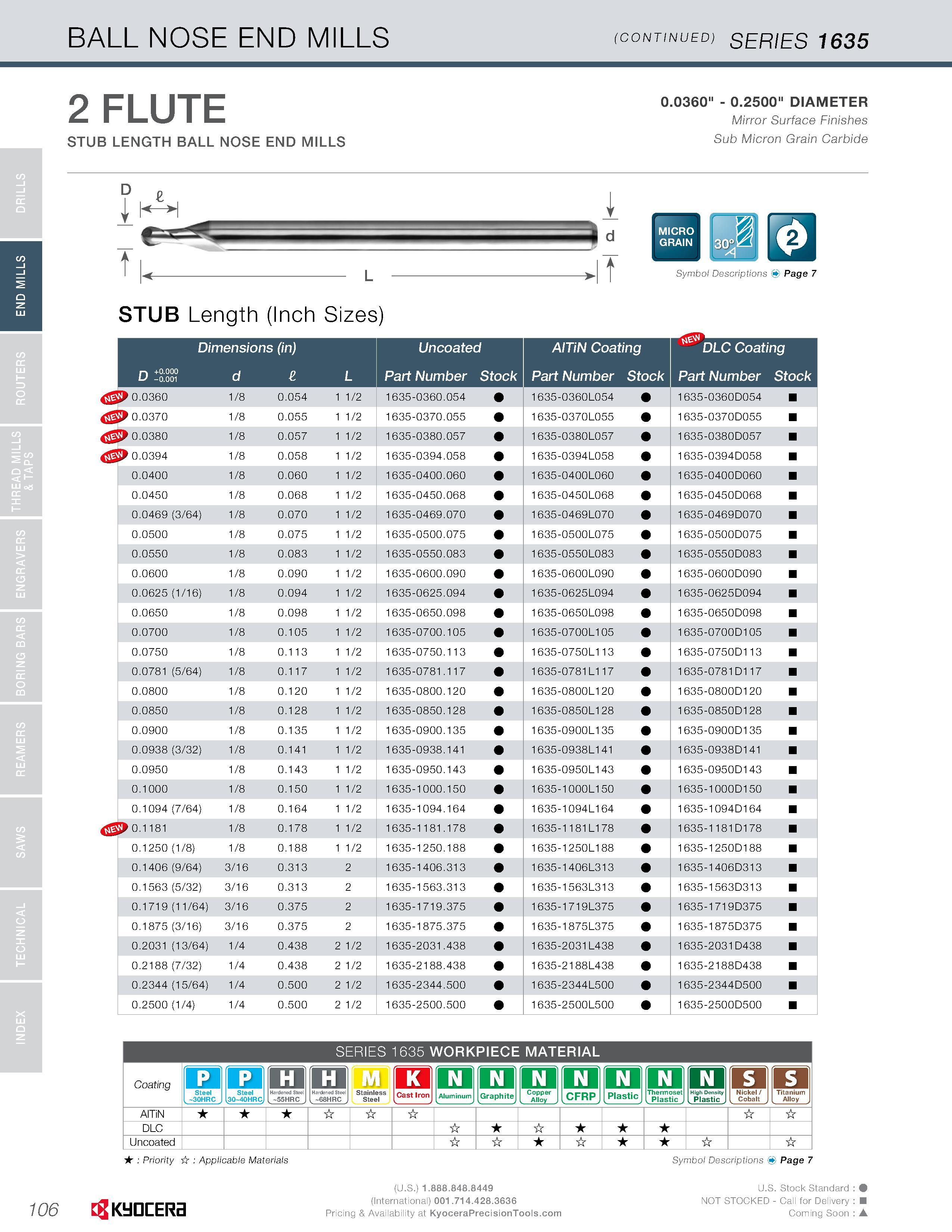

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1635 106 2 FLUTE STUB LENGTH BALL NOSE END MILLS 0.0360" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide i Id -IT Symbol Descriptions Page 7 STUB Length (Inch Sizes) Dimensions (in) +0.000 n lJ -0.001 Cl L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock IP 0.0360 1/8 0.054 1 1/2 1635-0360.054 1635-0360L054 1635-0360D054 JP 0.0370 1/8 0.055 1 1/2 1635-0370.055 1635-0370L055 1635-0370D055 JP 0.0380 1/8 0.057 1 1/2 1635-0380.057 1635-0380L057 1635-0380D057 0.0394 1/8 0.058 1 1/2 1635-0394.058 1635-0394L058 1635-0394D058 0.0400 1/8 0.060 1 1/2 1635-0400.060 1635-0400L060 1635-0400D060 0.0450 1/8 0.068 1 1/2 1635-0450.068 1635-0450L068 1635-0450D068 0.0469 (3/64) 1/8 0.070 1 1/2 1635-0469.070 1635-0469L070 1635-0469D070 0.0500 1/8 0.075 1 1/2 1635-0500.075 1635-0500L075 1635-0500D075 0.0550 1/8 0.083 1 1/2 1635-0550.083 1635-0550L083 1635-0550D083 0.0600 1/8 0.090 1 1/2 1635-0600.090 1635-0600L090 1635-0600D090 0.0625 (1/16) 1/8 0.094 1 1/2 1635-0625.094 1635-0625L094 1635-0625D094 0.0650 1/8 0.098 1 1/2 1635-0650.098 1635-0650L098 1635-0650D098 0.0700 1/8 0.105 1 1/2 1635-0700.105 1 635-0700L1 05 1 635-0700D1 05 0.0750 1/8 0.113 1 1/2 1635-0750.113 1 635-0750L113 1 635-0750D113 0.0781 (5/64) 1/8 0.117 1 1/2 1635-0781.117 1 635-0781 L117 1 635-0781 D117 0.0800 1/8 0.120 1 1/2 1635-0800.120 1 635-0800L1 20 1 635-0800D1 20 0.0850 1/8 0.128 1 1/2 1635-0850.128 1 635-0850L1 28 1 635-0850D1 28 0.0900 1/8 0.135 1 1/2 1635-0900.135 1 635-0900L1 35 1 635-0900D1 35 0.0938 (3/32) 1/8 0.141 1 1/2 1635-0938.141 1 635-0938L1 41 1 635-0938D1 41 0.0950 1/8 0.143 1 1/2 1635-0950.143 1 635-0950L1 43 1 635-0950D1 43 0.1000 1/8 0.150 1 1/2 1635-1000.150 1 635-1 000L1 50 1 635-1 000D1 50 0.1094 (7/64) 1/8 0.164 1 1/2 1635-1094.164 1 635-1 094L1 64 1 635-1 094D1 64 JP 0.1181 1/8 0.178 1 1/2 1635-1181.178 1 635-11 81 L1 78 1 635-1181 D1 78 0.1250 (1/8) 1/8 0.188 1 1/2 1635-1250.188 1 635-1 250L1 88 1 635-1 250D1 88 0.1406 (9/64) 3/16 0.313 2 1635-1406.313 1 635-1 406L313 1 635-1 406D313 0.1563 (5/32) 3/16 0.313 2 1635-1563.313 1 635-1 563L313 1 635-1 563D313 0.1719 (11/64) 3/16 0.375 2 1635-1719.375 1 635-1 719L375 1635-1 71 9D375 0.1875 (3/16) 3/16 0.375 2 1635-1875.375 1 635-1 875L375 1 635-1 875D375 0.2031 (13/64) 1/4 0.438 2 1/2 1635-2031.438 1635-2031 L438 1 635-2031 D438 0.2188 (7/32) 1/4 0.438 2 1/2 1635-2188.438 1635-21 88L438 1 635-2188D438 0.2344 (15/64) 1/4 0.500 2 1/2 1635-2344.500 1635-2344L500 1635-2344D500 0.2500 (1/4) 1/4 0.500 2 1/2 1635-2500.500 1635-2500L500 1635-2500D500 SERIES 1635 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . O . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
