106 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.104

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 104 0106 ENG Lab2u

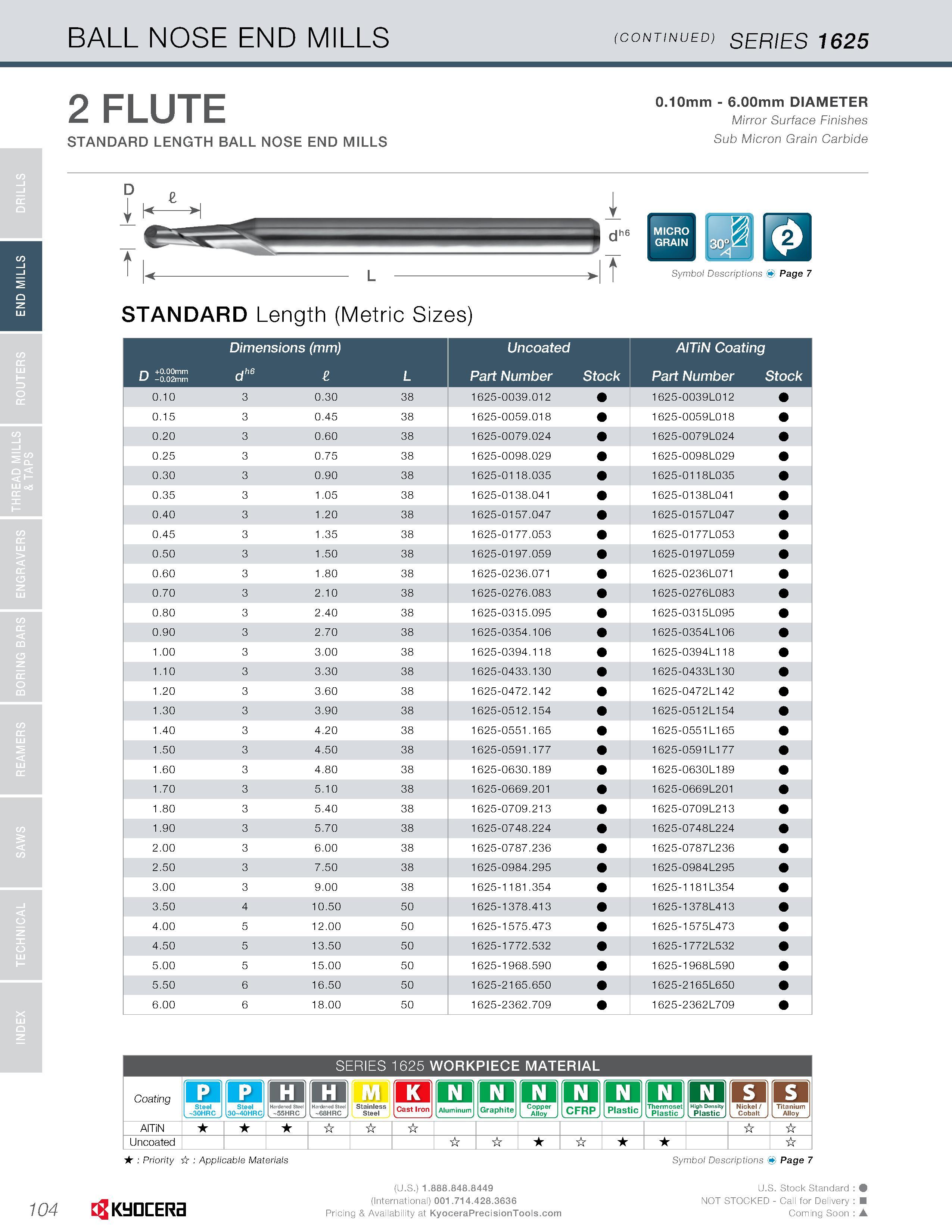

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1625 104 2 FLUTE STANDARD LENGTH BALL NOSE END MILLS 0.10mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Ji Symbol Descriptions Page 7 STANDARD Length (Metric Sizes) Dimensions (mm) Uncoated AITiN Coating r- -t-O.OQmm -0.02mm dh6 L Part Number Stock Part Number Stock 0.10 3 0.30 38 1625-0039.012 1625-0039L012 0.15 3 0.45 38 1625-0059.018 1625-0059L018 0.20 3 0.60 38 1625-0079.024 1625-0079L024 0.25 3 0.75 38 1625-0098.029 1625-0098L029 0.30 3 0.90 38 1625-0118.035 1625-0118L035 0.35 3 1.05 38 1625-0138.041 1625-0138L041 0.40 3 1.20 38 1625-0157.047 1625-0157L047 0.45 3 1.35 38 1625-0177.053 1625-0177L053 0.50 3 1.50 38 1625-0197.059 1625-0197L059 0.60 3 1.80 38 1625-0236.071 1625-0236L071 0.70 3 2.10 38 1625-0276.083 1625-0276L083 0.80 3 2.40 38 1625-0315.095 1625-031 5L095 0.90 3 2.70 38 1625-0354.106 1625-0354L106 1.00 3 3.00 38 1625-0394.118 1625-0394L118 1.10 3 3.30 38 1625-0433.130 1625-0433L130 1.20 3 3.60 38 1625-0472.142 1625-0472L142 1.30 3 3.90 38 1625-0512.154 1625-051 2L154 1.40 3 4.20 38 1625-0551.165 1625-0551L165 1.50 3 4.50 38 1625-0591.177 1625-0591L177 1.60 3 4.80 38 1625-0630.189 1625-0630L189 1.70 3 5.10 38 1625-0669.201 1625-0669L201 1.80 3 5.40 38 1625-0709.213 1625-0709L213 1.90 3 5.70 38 1625-0748.224 1625-0748L224 2.00 3 6.00 38 1625-0787.236 1625-0787L236 2.50 3 7.50 38 1625-0984.295 1625-0984L295 3.00 3 9.00 38 1625-1181.354 1625-1181 L354 3.50 4 10.50 50 1625-1378.413 1625-1 378L413 4.00 5 12.00 50 1625-1575.473 1625-1 575L473 4.50 5 13.50 50 1625-1772.532 1625-1 772L532 5.00 5 15.00 50 1625-1968.590 1625-1 968L590 5.50 6 16.50 50 1625-2165.650 1625-2165L650 6.00 6 18.00 50 1625-2362.709 1625-2362L709 SERIES 1625 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon (U.S.) wC.P l/Unrmi (International) 001.714.428.3636 l\.-jULtl\d Pricing & Availability at
