104 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.102

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 102 0104 ENG Lab2u

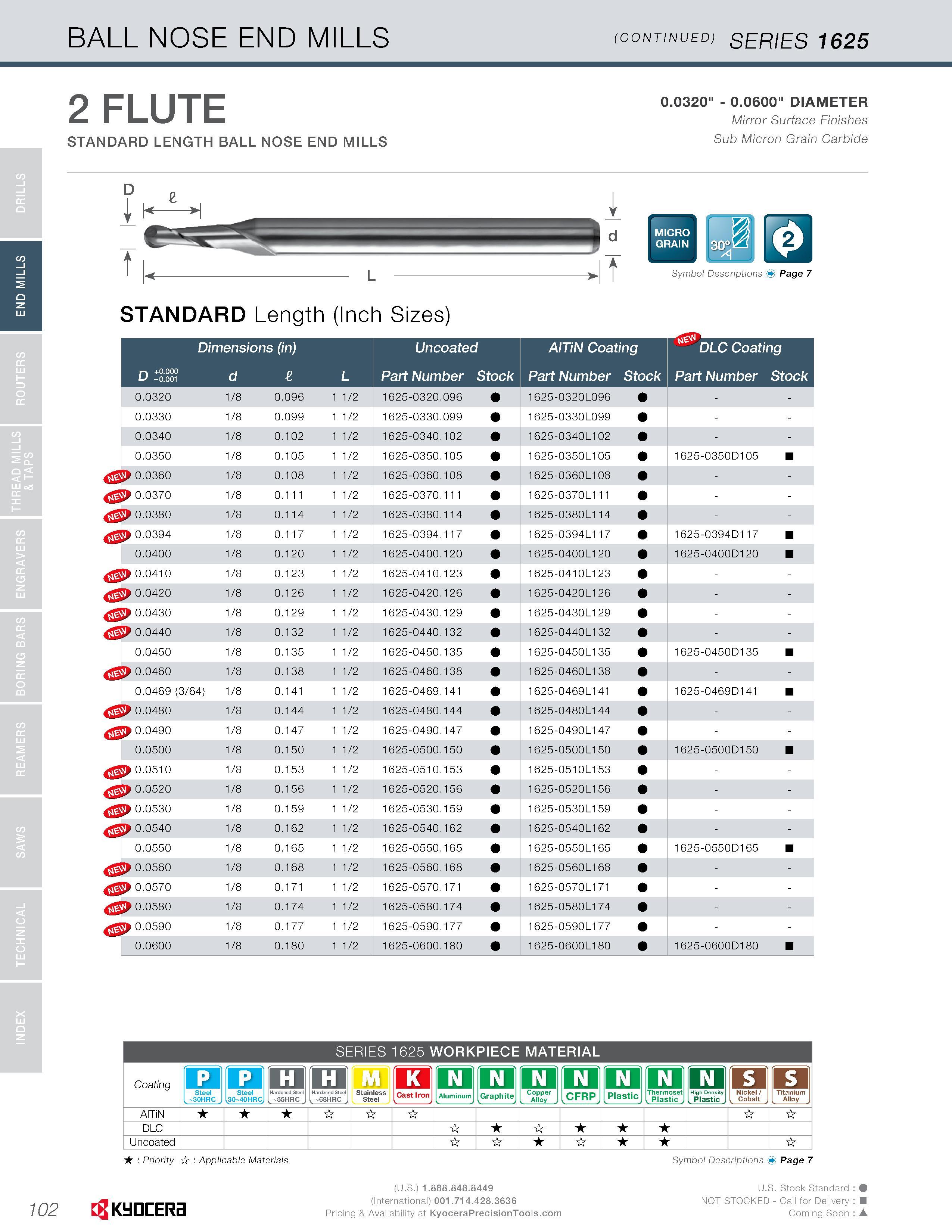

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1625 102 2 FLUTE STANDARD LENGTH BALL NOSE END MILLS 0.0320" - 0.0600" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) +0.000 Lz -0.001 Dimensions (in) d e L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0320 1/8 0.096 1 1/2 1625-0320.096 1625-0320L096 - 0.0330 1/8 0.099 1 1/2 1625-0330.099 1625-0330L099 - 0.0340 1/8 0.102 1 1/2 1625-0340.102 1 625-0340L1 02 0.0350 1/8 0.105 1 1/2 1625-0350.105 1 625-0350L1 05 1 625-0350D1 05 0.0360 1/8 0.108 1 1/2 1625-0360.108 1 625-0360L1 08 - 0.0370 1/8 0.111 1 1/2 1625-0370.111 1 625-0370L111 - J 0.0380 1/8 0.114 1 1/2 1625-0380.114 1625-0380L114 - 0.0394 1/8 0.117 1 1/2 1625-0394.117 1 625-0394L117 1 625-0394D117 0.0400 1/8 0.120 1 1/2 1625-0400.120 1 625-0400L1 20 1 625-0400D1 20 0.0410 1/8 0.123 1 1/2 1625-0410.123 1 625-0410L1 23 - 0.0420 1/8 0.126 1 1/2 1625-0420.126 1 625-0420L1 26 - 0.0430 1/8 0.129 1 1/2 1625-0430.129 1 625-0430L1 29 - 0.0440 1/8 0.132 1 1/2 1625-0440.132 1 625-0440L1 32 - 0.0450 1/8 0.135 1 1/2 1625-0450.135 1 625-0450L1 35 1 625-0450D1 35 0.0460 1/8 0.138 1 1/2 1625-0460.138 1 625-0460L1 38 - 0.0469 (3/64) 1/8 0.141 1 1/2 1625-0469.141 1 625-0469L1 41 1 625-0469D1 41 0.0480 1/8 0.144 1 1/2 1625-0480.144 1 625-0480L1 44 - 0.0490 1/8 0.147 1 1/2 1625-0490.147 1 625-0490L1 47 - 0.0500 1/8 0.150 1 1/2 1625-0500.150 1 625-0500L1 50 1 625-0500D1 50 TO 0.0510 1/8 0.153 1 1/2 1625-0510.153 1 625-0510L1 53 - 0.0520 1/8 0.156 1 1/2 1625-0520.156 1 625-0520L1 56 W 0.0530 1/8 0.159 1 1/2 1625-0530.159 1 625-0530L1 59 - W 0.0540 1/8 0.162 1 1/2 1625-0540.162 1 625-0540L1 62 - 0.0550 1/8 0.165 1 1/2 1625-0550.165 1 625-0550L1 65 1 625-0550D1 65 0.0560 1/8 0.168 1 1/2 1625-0560.168 1 625-0560L1 68 - 0.0570 1/8 0.171 1 1/2 1625-0570.171 1 625-0570L1 71 - 0.0580 1/8 0.174 1 1/2 1625-0580.174 1 625-0580L1 74 - 0.0590 1/8 0.177 1 1/2 1625-0590.177 1 625-0590L1 77 - 0.0600 1/8 0.180 1 1/2 1625-0600.180 1 625-0600L1 80 1 625-0600D1 80 SERIES 1625 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon :
