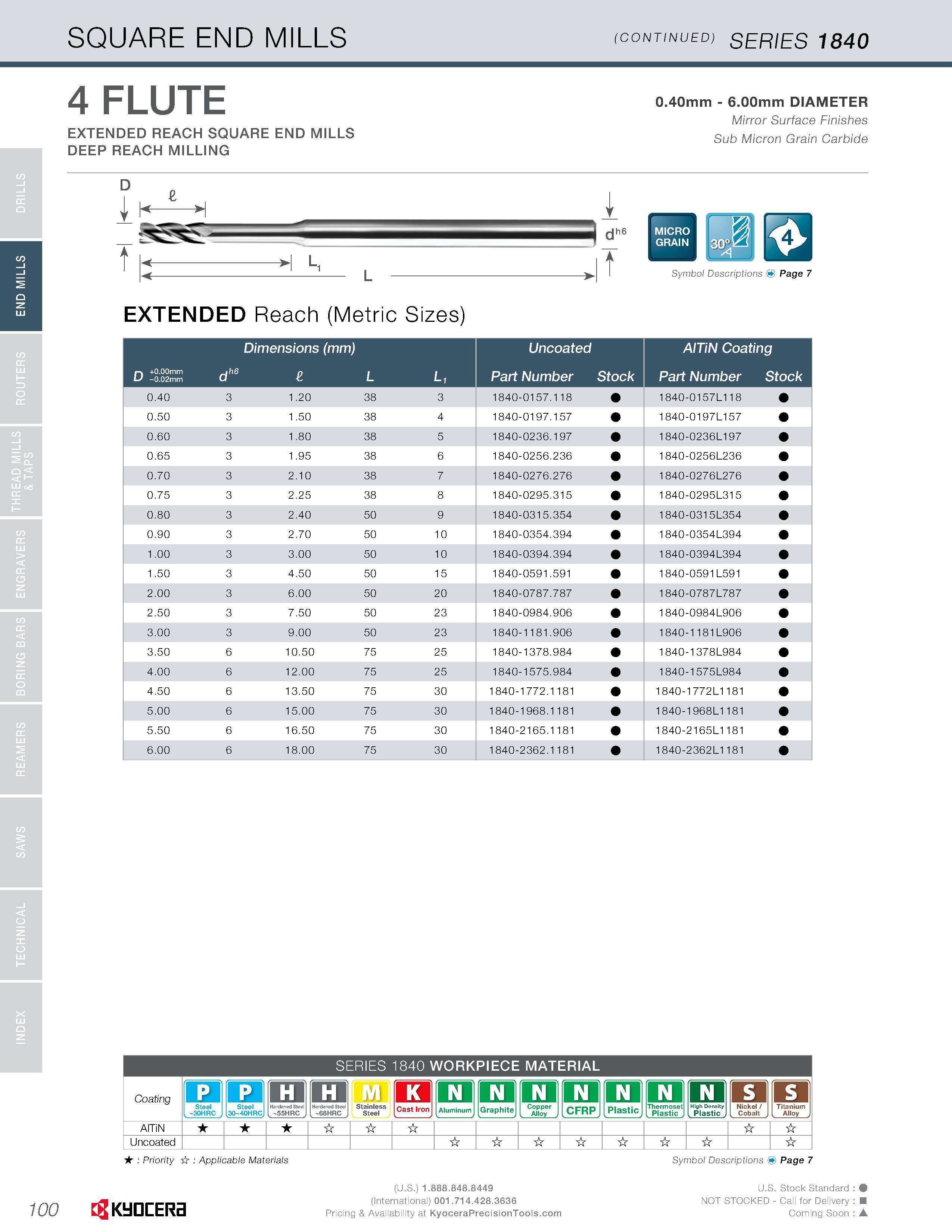

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1840 4 FLUTE EXTENDED REACH SQUARE END MILLS DEEP REACH MILLING 0.40mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Ji I 11 h Li J T Symbol Descriptions Page 7 i i- EXTENDED Reach (Metric Sizes) Dimensions (mm) Uncoated AITiN Coating +0.00mm Oil Lf -0.02mm U <, L L1 Part Number Stock Part Number Stock 0.40 3 1.20 38 3 1840-0157.118 1840-0157L118 0.50 3 1.50 38 4 1840-0197.157 1840-0197L157 0.60 3 1.80 38 5 1840-0236.197 1840-0236L197 0.65 3 1.95 38 6 1840-0256.236 1840-0256L236 0.70 3 2.10 38 7 1840-0276.276 1840-0276L276 0.75 3 2.25 38 8 1840-0295.315 1840-0295L315 0.80 3 2.40 50 9 1840-0315.354 1840-031 5L354 0.90 3 2.70 50 10 1840-0354.394 1840-0354L394 1.00 3 3.00 50 10 1840-0394.394 1840-0394L394 1.50 3 4.50 50 15 1840-0591.591 1840-0591L591 2.00 3 6.00 50 20 1840-0787.787 1840-0787L787 2.50 3 7.50 50 23 1840-0984.906 1840-0984L906 3.00 3 9.00 50 23 1840-1181.906 1840-1181 L906 3.50 6 10.50 75 25 1840-1378.984 1840-1 378L984 4.00 6 12.00 75 25 1840-1575.984 1840-1 575L984 4.50 6 13.50 75 30 1840-1772.1181 1 840-1 772L1181 5.00 6 15.00 75 30 1840-1968.1181 1 840-1 968L1181 5.50 6 16.50 75 30 1840-2165.1181 1 840-2165L1181 6.00 6 18.00 75 30 1840-2362.1181 1840-2362L1181 SERIES 1840 WORKPIECE MATERIAL Coating D Steel -30HRC D Steel 30-40HRC Cl Hardened Steel -55HRC Hi A1 Stainless Steel K o Aluminuin o Graphite o Copper Alloy o CFRP o Plastic o Thermoset Plastic O Plastic SI I si Hardened Steel -68HRC J Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 100 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
