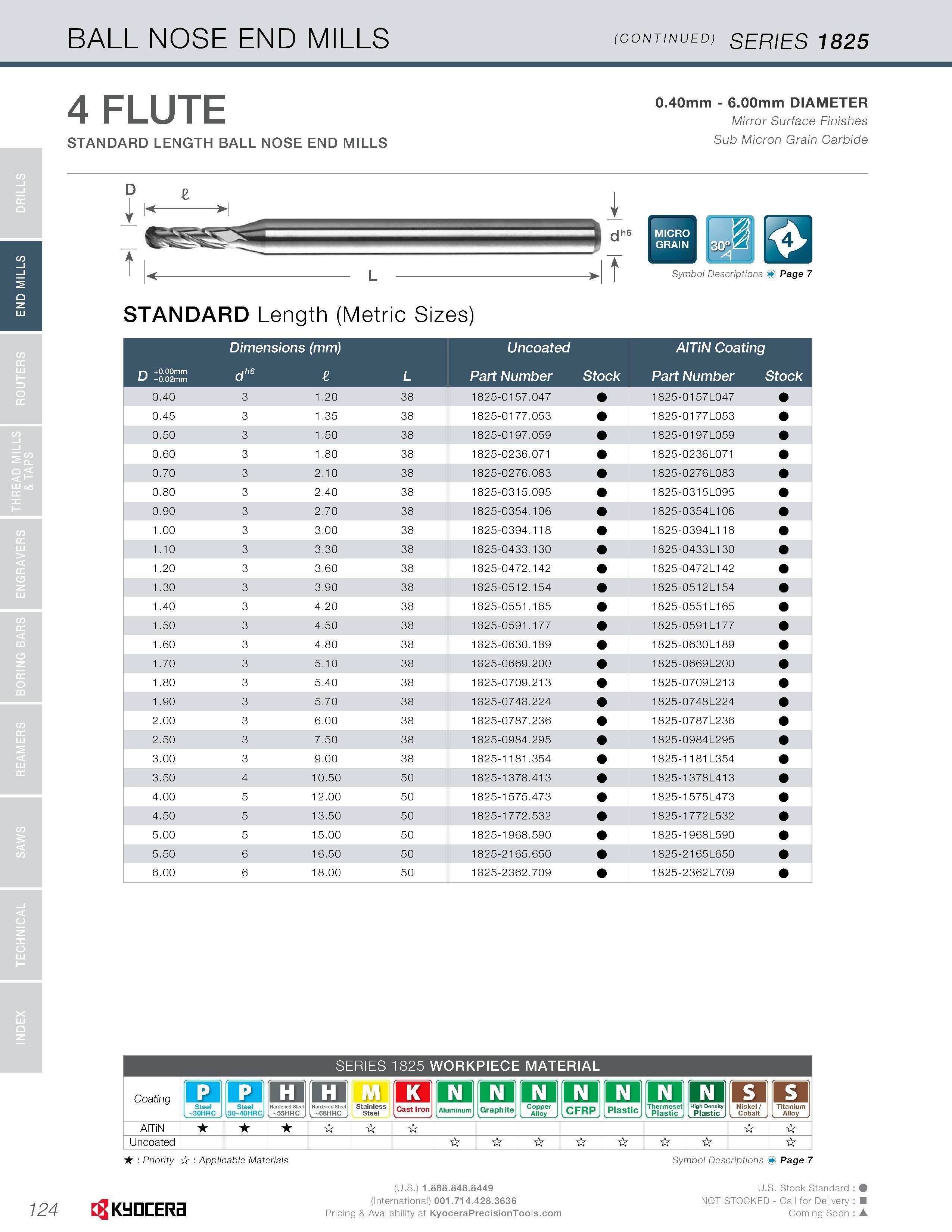

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1825 124 4 FLUTE STANDARD LENGTH BALL NOSE END MILLS 0.40mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide tL STANDARD Length (Metric Sizes) i J dh ” -it m Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating i-j +0.00mm -0.02mm dh6 L Part Number Stock Part Number Stock 0.40 3 1.20 38 1825-0157.047 1825-01 57L047 0.45 3 1.35 38 1825-0177.053 1825-01 77L053 0.50 3 1.50 38 1825-0197.059 1825-01 97L059 0.60 3 1.80 38 1825-0236.071 1825-0236L071 0.70 3 2.10 38 1825-0276.083 1825-0276L083 0.80 3 2.40 38 1825-0315.095 1825-0315L095 0.90 3 2.70 38 1825-0354.106 1825-0354L106 1.00 3 3.00 38 1825-0394.118 1825-0394L118 1.10 3 3.30 38 1825-0433.130 1825-0433L130 1.20 3 3.60 38 1825-0472.142 1825-0472L142 1.30 3 3.90 38 1825-0512.154 1825-0512L154 1.40 3 4.20 38 1825-0551.165 1825-0551L165 1.50 3 4.50 38 1825-0591.177 1825-0591L177 1.60 3 4.80 38 1825-0630.189 1825-0630L1 89 1.70 3 5.10 38 1825-0669.200 1825-0669L200 1.80 3 5.40 38 1825-0709.213 1825-0709L213 1.90 3 5.70 38 1825-0748.224 1825-0748L224 2.00 3 6.00 38 1825-0787.236 1825-0787L236 2.50 3 7.50 38 1825-0984.295 1825-0984L295 3.00 3 9.00 38 1825-1181.354 1825-1181 L354 3.50 4 10.50 50 1825-1378.413 1825-1 378L413 4.00 5 12.00 50 1825-1575.473 1825-1 575L473 4.50 5 13.50 50 1825-1772.532 1825-1 772L532 5.00 5 15.00 50 1825-1968.590 1825-1 968L590 5.50 6 16.50 50 1825-2165.650 1825-21 65L650 6.00 6 18.00 50 1825-2362.709 1825-2362L709 SERIES 1825 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC j'jl Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority tV Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon (U.S.) wC.P lAUnrrni (International) 001.714.428.3636 l\.-jULtl\d Pricing & Availability at
