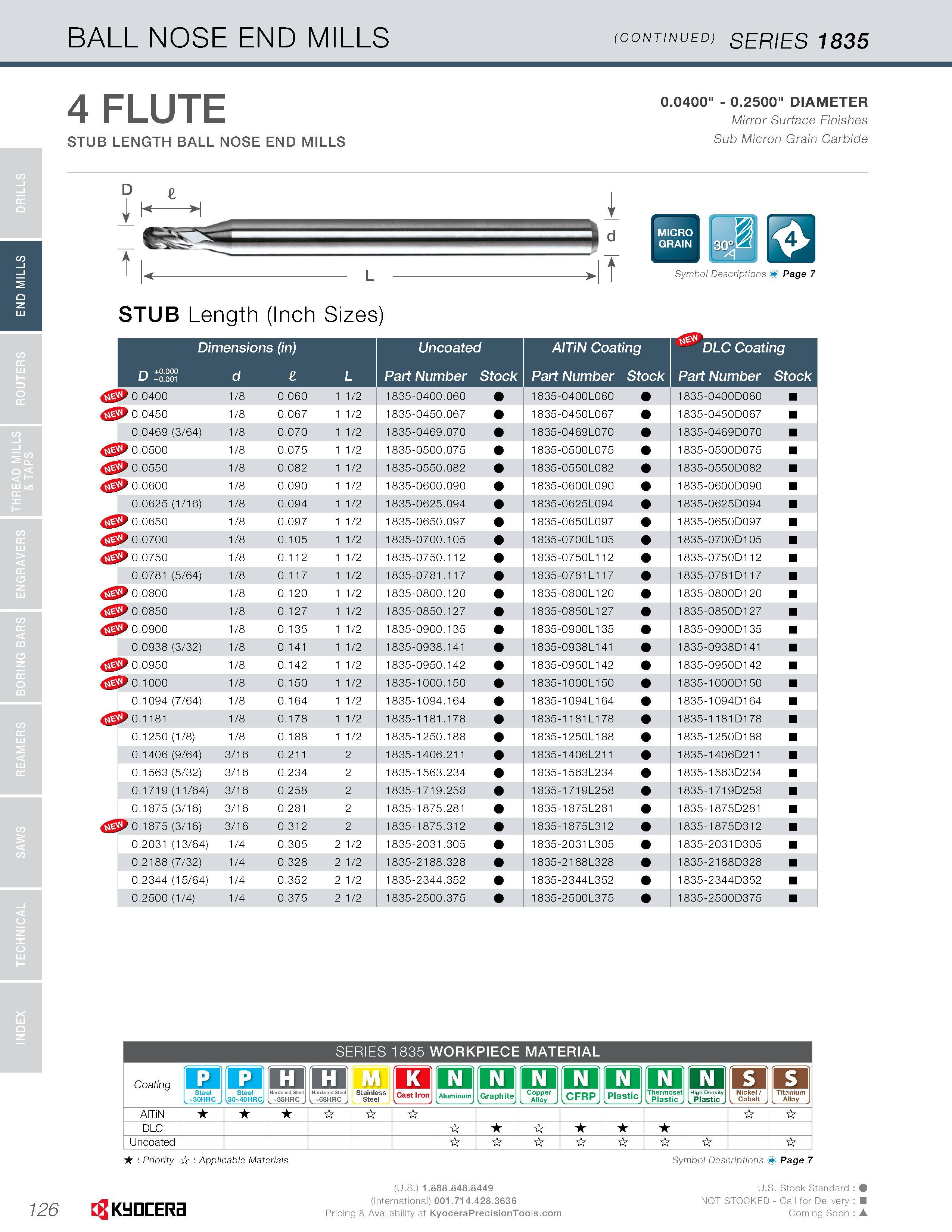

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1835 126 4 FLUTE STUB LENGTH BALL NOSE END MILLS 0.0400" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide J Symbol Descriptions Page 7 STUB Length (Inch Sizes) Dimensions (in) +0.000 n lJ -0.001 Cl L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0400 1/8 0.060 1 1/2 1835-0400.060 1835-0400L060 1835-0400D060 0.0450 1/8 0.067 1 1/2 1835-0450.067 1835-0450L067 1835-0450D067 0.0469 (3/64) 1/8 0.070 1 1/2 1835-0469.070 1835-0469L070 1835-0469D070 0.0500 1/8 0.075 1 1/2 1835-0500.075 1835-0500L075 1835-0500D075 0.0550 1/8 0.082 1 1/2 1835-0550.082 1835-0550L082 1835-0550D082 0.0600 1/8 0.090 1 1/2 1835-0600.090 1835-0600L090 1835-0600D090 0.0625 (1/16) 1/8 0.094 1 1/2 1835-0625.094 1835-0625L094 1835-0625D094 0.0650 1/8 0.097 1 1/2 1835-0650.097 1835-0650L097 1835-0650D097 0.0700 1/8 0.105 1 1/2 1835-0700.105 1 835-0700L1 05 1 835-0700D1 05 0.0750 1/8 0.112 1 1/2 1835-0750.112 1 835-0750L112 1 835-0750D112 0.0781 (5/64) 1/8 0.117 1 1/2 1835-0781.117 1 835-0781 L117 1 835-0781 D117 0.0800 1/8 0.120 1 1/2 1835-0800.120 1 835-0800L1 20 1 835-0800D1 20 9 0.0850 1/8 0.127 1 1/2 1835-0850.127 1 835-0850L1 27 1 835-0850D1 27 9 0.0900 1/8 0.135 1 1/2 1835-0900.135 1 835-0900L1 35 1 835-0900D1 35 0.0938 (3/32) 1/8 0.141 1 1/2 1835-0938.141 1 835-0938L1 41 1 835-0938D1 41 0.0950 1/8 0.142 1 1/2 1835-0950.142 1 835-0950L1 42 1 835-0950D1 42 9 0.1000 1/8 0.150 1 1/2 1835-1000.150 1 835-1 000L1 50 1 835-1 000D1 50 0.1094 (7/64) 1/8 0.164 1 1/2 1835-1094.164 1 835-1 094L1 64 1 835-1 094D1 64 0.1181 1/8 0.178 1 1/2 1835-1181.178 1 835-11 81 L1 78 1 835-1181 D1 78 0.1250 (1/8) 1/8 0.188 1 1/2 1835-1250.188 1 835-1 250L1 88 1 835-1 250D1 88 0.1406 (9/64) 3/16 0.211 2 1835-1406.211 1 835-1 406L211 1 835-1 406D211 0.1563 (5/32) 3/16 0.234 2 1835-1563.234 1 835-1 563L234 1 835-1 563D234 0.1719 (11/64) 3/16 0.258 2 1835-1719.258 1 835-1 719L258 1835-1 71 9D258 0.1875 (3/16) 3/16 0.281 2 1835-1875.281 1 835-1 875L281 1 835-1 875D281 0.1875 (3/16) 3/16 0.312 2 1835-1875.312 1 835-1 875L312 1 835-1 875D312 0.2031 (13/64) 1/4 0.305 2 1/2 1835-2031.305 1835-2031 L305 1 835-2031 D305 0.2188 (7/32) 1/4 0.328 2 1/2 1835-2188.328 1835-21 88L328 1 835-2188D328 0.2344 (15/64) 1/4 0.352 2 1/2 1835-2344.352 1835-2344L352 1835-2344D352 0.2500 (1/4) 1/4 0.375 2 1/2 1835-2500.375 1835-2500L375 1835-2500D375 SERIES 1835 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . O . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
