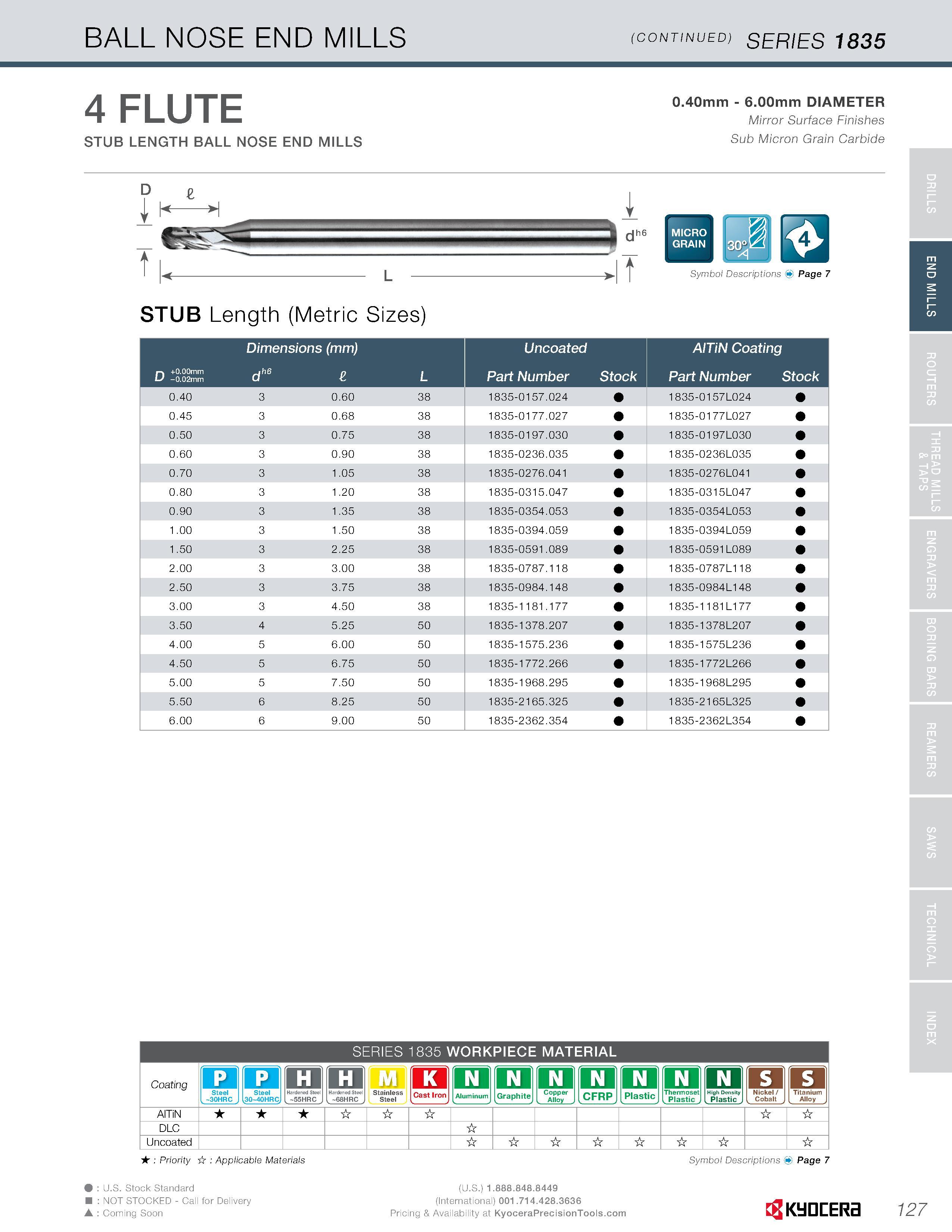

BALL NOSE END MILLS (CONTINUED) SERIES 1835 4 FLUTE 0.40mm - 6.00mm DIAMETER Mirror Surface Finishes STUB LENGTH BALL NOSE END MILLS Sub Micron Grain Carbide STUB Length (Metric Sizes) Dimensions (mm) Uncoated AITiN Coating PI +0.00mm LJ -0.02mm dhG L Part Number Stock Part Number Stock 0.40 3 0.60 38 1835-0157.024 1835-01 57L024 0.45 3 0.68 38 1835-0177.027 1835-01 77L027 0.50 3 0.75 38 1835-0197.030 1835-01 97L030 0.60 3 0.90 38 1835-0236.035 1835-0236L035 0.70 3 1.05 38 1835-0276.041 1835-0276L041 0.80 3 1.20 38 1835-0315.047 1835-0315L047 0.90 3 1.35 38 1835-0354.053 1835-0354L053 1.00 3 1.50 38 1835-0394.059 1835-0394L059 1.50 3 2.25 38 1835-0591.089 1835-0591 L089 2.00 3 3.00 38 1835-0787.118 1835-0787L118 2.50 3 3.75 38 1835-0984.148 1835-0984L148 3.00 3 4.50 38 1835-1181.177 1835-1181 L1 77 3.50 4 5.25 50 1835-1378.207 1835-1 378L207 4.00 5 6.00 50 1835-1575.236 1835-1 575L236 4.50 5 6.75 50 1835-1772.266 1 835-1 772L266 5.00 5 7.50 50 1835-1968.295 1835-1 968L295 5.50 6 8.25 50 1835-2165.325 1835-21 65L325 6.00 6 9.00 50 1835-2362.354 1835-2362L354 SERIES 1835 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic o Thermoset Plastic . o . Plastic I s I 'Is I j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera END MILLS
