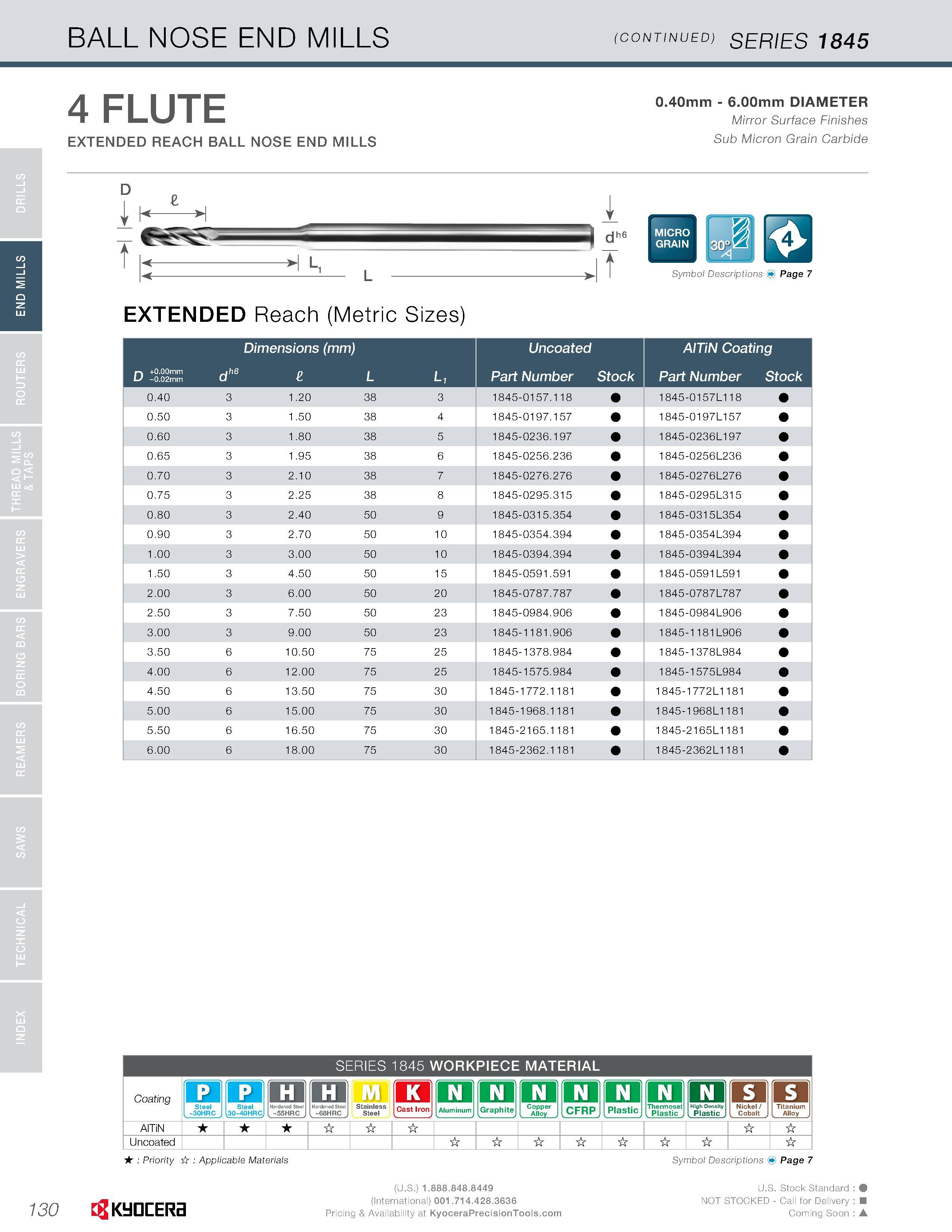

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1845 4 FLUTE 0.40mm - 6.00mm DIAMETER Mirror Surface Finishes EXTENDED REACH BALL NOSE END MILLS Sub Micron Grain Carbide k - jt Ji Symbol Descriptions Page 7 EXTENDED Reach (Metric Sizes) Dimensions (mm) Uncoated AITiN Coating f-k +0.00mm LJ -0.02mm dhe L Part Number Stock Part Number Stock 0.40 3 1.20 38 3 1845-0157.118 1845-0157L118 0.50 3 1.50 38 4 1845-0197.157 1845-0197L157 0.60 3 1.80 38 5 1845-0236.197 1845-0236L197 0.65 3 1.95 38 6 1845-0256.236 1845-0256L236 0.70 3 2.10 38 7 1845-0276.276 1845-0276L276 0.75 3 2.25 38 8 1845-0295.315 1845-0295L315 0.80 3 2.40 50 9 1845-0315.354 1845-031 5L354 0.90 3 2.70 50 10 1845-0354.394 1845-0354L394 1.00 3 3.00 50 10 1845-0394.394 1845-0394L394 1.50 3 4.50 50 15 1845-0591.591 1845-0591L591 2.00 3 6.00 50 20 1845-0787.787 1845-0787L787 2.50 3 7.50 50 23 1845-0984.906 1845-0984L906 3.00 3 9.00 50 23 1845-1181.906 1845-1181 L906 3.50 6 10.50 75 25 1845-1378.984 1845-1 378L984 4.00 6 12.00 75 25 1845-1575.984 1845-1 575L984 4.50 6 13.50 75 30 1845-1772.1181 1 845-1 772L1181 5.00 6 15.00 75 30 1845-1968.1181 1 845-1 968L1181 5.50 6 16.50 75 30 1845-2165.1181 1 845-2165L1181 6.00 6 18.00 75 30 1845-2362.1181 1845-2362L1181 SERIES 1845 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC j'jl Stainless Steel o Aluminuin o Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic O Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 130 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
