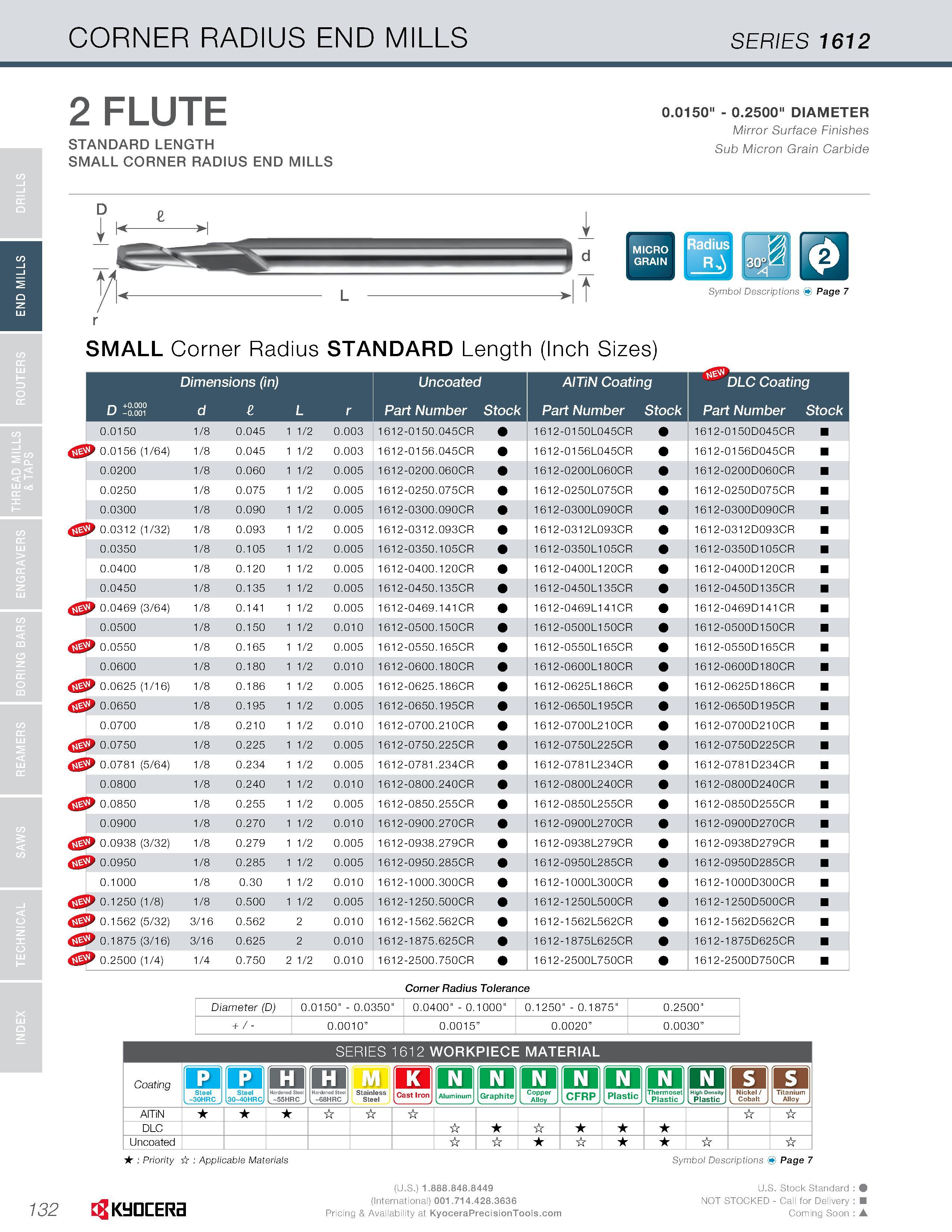

END MILLS CORNER RADIUS END MILLS SERIES 1612 132 2 FLUTE STANDARD LENGTH SMALL CORNER RADIUS END MILLS 0.0150" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide I => d It Radius Symbol Descriptions Page 7 SMALL Corner Radius STANDARD Length (Inch Sizes) +0.000 U -0.001 Dimensions (in) d e L r Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0150 1/8 0.045 1 1/2 0.003 1612-0150.045CR 1 612-01 50L045CR 1612-01 50 D045CR 9 0.0156 (1/64) 1/8 0.045 1 1/2 0.003 1612-0156.045CR 1 612-01 56L045CR 1612-01 56 D045CR 0.0200 1/8 0.060 1 1/2 0.005 1612-0200.060CR 1 612-0200L060CR 1612-0200D060CR 0.0250 1/8 0.075 1 1/2 0.005 1612-0250.075CR 1 612-0250L075CR 1612-0250D075CR 0.0300 1/8 0.090 1 1/2 0.005 1612-0300.090CR 1 612-0300 L090CR 1612-0300D090CR 9 0.0312 (1/32) 1/8 0.093 1 1/2 0.005 1612-0312.093CR 1612-0312L093CR 161 2-0312D093CR 0.0350 1/8 0.105 1 1/2 0.005 1612-0350.105CR 1612-0350L105CR 1612-0350D105CR 0.0400 1/8 0.120 1 1/2 0.005 1612-0400.120CR 1612-0400L120CR 1612-0400D120CR 0.0450 1/8 0.135 1 1/2 0.005 1612-0450.135CR 1612-0450L135CR 1612-0450D135CR 0.0469 (3/64) 1/8 0.141 1 1/2 0.005 1612-0469.141CR 1 612-0469L1 41CR 1612-0469D141CR 0.0500 1/8 0.150 1 1/2 0.010 1612-0500.150CR 1612-0500L150CR 1612-0500D150CR > 0.0550 1/8 0.165 1 1/2 0.005 1612-0550.165CR 1612-0550L165CR 1612-0550D165CR 0.0600 1/8 0.180 1 1/2 0.010 1612-0600.180CR 1612-0600L180CR 1612-0600D180CR 9 0.0625 (1/16) 1/8 0.186 1 1/2 0.005 1612-0625.186CR 1612-0625L186CR 1612-0625D186CR 0.0650 1/8 0.195 1 1/2 0.005 1612-0650.195CR 1612-0650L195CR 1612-0650D195CR 0.0700 1/8 0.210 1 1/2 0.010 1612-0700.210CR 1 612-0700 L21 OCR 1612-0700D210CR 0.0750 1/8 0.225 1 1/2 0.005 1612-0750.225CR 1 612-0750L225CR 1612-0750D225CR 0.0781 (5/64) 1/8 0.234 1 1/2 0.005 1612-0781.234CR 1612-0781L234CR 161 2-0781 D234CR 0.0800 1/8 0.240 1 1/2 0.010 1612-0800.240CR 1 612-0800 L240CR 1612-0800D240CR 0.0850 1/8 0.255 1 1/2 0.005 1612-0850.255CR 1 612-0850 L255CR 1612-0850D255CR 0.0900 1/8 0.270 1 1/2 0.010 1612-0900.270CR 1 612-0900 L270CR 1612-0900D270CR 0.0938 (3/32) 1/8 0.279 1 1/2 0.005 1612-0938.279CR 1 612-0938 L279CR 1612-0938D279CR 9 0.0950 1/8 0.285 1 1/2 0.005 1612-0950.285CR 1 612-0950 L285CR 1612-0950D285CR 0.1000 1/8 0.30 1 1/2 0.010 1612-1000.300CR 1 612-1 000L300CR 1612-1000D300CR 0.1250 (1/8) 1/8 0.500 1 1/2 0.005 1612-1250.500CR 1 612-1 250L500CR 1612-12 50 D500CR 0.1562 (5/32) 3/16 0.562 2 0.010 1612-1562.562CR 1612-1562L562CR 1612-1562D562CR P 0.1875 (3/16) 3/16 0.625 2 0.010 1612-1875.625CR 1612-1875L625CR 1612-1875D625CR P 0.2500 (1/4) 1/4 0.750 2 1/2 0.010 1612-2500.750CR 1 612-2500L750CR 1612-2500D750CR Corner Radius Tolerance Diameter (D) 0.0150" - 0.0350" 0.0400" - 0.1000" 0.1250" - 0.1875" 0.2500" + / - 0.0010” 0.0015” 0.0020” 0.0030” SERIES 1612 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated it Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
