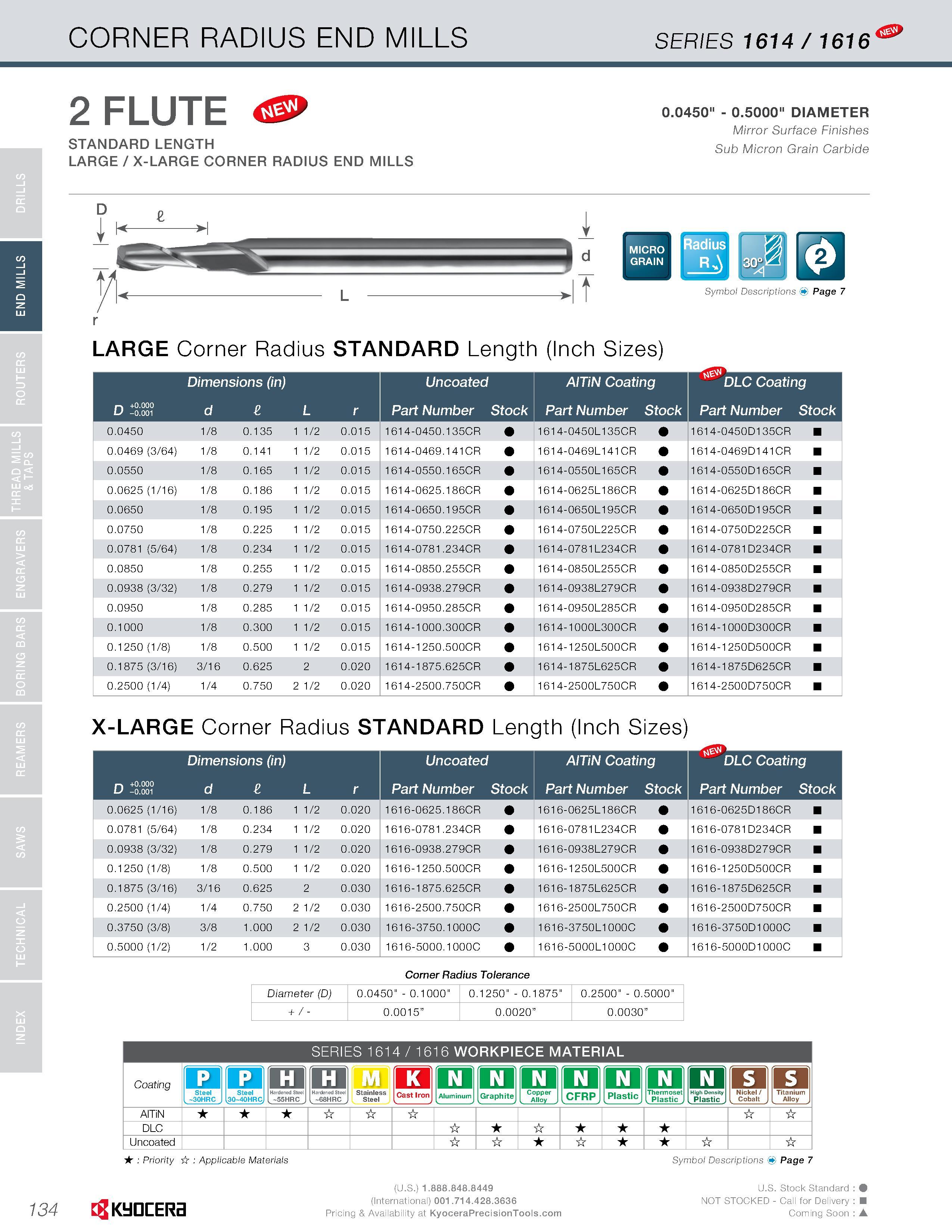

END MILLS 134 CORNER RADIUS END MILLS SERIES 1614/1616 2 FLUTE < > STANDARD LENGTH LARGE / X-LARGE CORNER RADIUS END MILLS 0.0450" - 0.5000" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide I d It Radius M Symbol Descriptions Page 7 LARGE Corner Radius STANDARD Length (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating ni +0.000 Lf -0.001 d L r Part Number Stock Part Number Stock Part Number Stock 0.0450 1/8 0.135 1 1/2 0.015 1614-0450.135CR 1614-0450L135CR 1 61 4-0450D1 35CR 0.0469 (3/64) 1/8 0.141 1 1/2 0.015 1614-0469.141CR 161 4-0469L141 CR 1614-0469D141CR 0.0550 1/8 0.165 1 1/2 0.015 1614-0550.165CR 1614-0550L165CR 1 61 4-0550D1 65CR 0.0625 (1/16) 1/8 0.186 1 1/2 0.015 1614-0625.186CR 1614-0625L186CR 1 61 4-0625D1 86CR 0.0650 1/8 0.195 1 1/2 0.015 1614-0650.195CR 1614-0650L195CR 1 61 4-0650D1 95CR 0.0750 1/8 0.225 1 1/2 0.015 161 4-0750.225CR 1614-0750L225CR 1 61 4-0750D225CR 0.0781 (5/64) 1/8 0.234 1 1/2 0.015 1614-0781.234CR 1614-0781 L234CR 161 4-0781 D234CR 0.0850 1/8 0.255 1 1/2 0.015 161 4-0850.255CR 1614-0850L255CR 1 61 4-0850D255CR 0.0938 (3/32) 1/8 0.279 1 1/2 0.015 161 4-0938.279CR 1614-0938L279CR 1 61 4-0938D279CR 0.0950 1/8 0.285 1 1/2 0.015 161 4-0950.285CR 1614-0950L285CR 1 61 4-0950D285CR 0.1000 1/8 0.300 1 1/2 0.015 1614-1000.300CR 161 4-1000L300CR 1614-1000D300CR 0.1250 (1/8) 1/8 0.500 1 1/2 0.015 1614-1250.500CR 161 4-1250L500CR 1614-1250D500CR 0.1875 (3/16) 3/16 0.625 2 0.020 1614-1875.625CR 161 4-1875L625CR 1 61 4-1 875D625CR 0.2500 (1/4) 1/4 0.750 2 1/2 0.020 161 4-2500.750CR 1614-2500L750CR 1 61 4-2500D750CR X-LARGE Corner Radius STANDARD Length (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating ni +0.000 Lf -0.001 d L r Part Number Stock Part Number Stock Part Number Stock 0.0625 (1/16) 1/8 0.186 1 1/2 0.020 1616-0625.186CR 1616-0625L186CR 1 61 6-0625D1 86CR 0.0781 (5/64) 1/8 0.234 1 1/2 0.020 1616-0781.234CR 1616-0781 L234CR 161 6-0781 D234CR 0.0938 (3/32) 1/8 0.279 1 1/2 0.020 161 6-0938.279CR 1616-0938L279CR 1 61 6-0938D279CR 0.1250 (1/8) 1/8 0.500 1 1/2 0.020 1616-1250.500CR 161 6-1250L500CR 1616-1250D500CR 0.1875 (3/16) 3/16 0.625 2 0.030 1616-1875.625CR 161 6-1875L625CR 1 61 6-1 875D625CR 0.2500 (1/4) 1/4 0.750 2 1/2 0.030 161 6-2500.750CR 1616-2500L750CR 1 61 6-2500D750CR 0.3750 (3/8) 3/8 1.000 2 1/2 0.030 1616-3750.1000C 1616-3750L1000C 1616-3750D1000C 0.5000 (1/2) 1/2 1.000 3 0.030 1616-5000.1000C 1616-5000L1000C 1616-5000D1000C Corner Radius Tolerance Diameter (D) 0.0450" - 0.1000" 0.1250" - 0.1875" 0.2500" - 0.5000" + / - 0.0015” 0.0020” 0.0030” SERIES 1614/1616 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset . Plastic . o . Plastic I s I 'Is I j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
