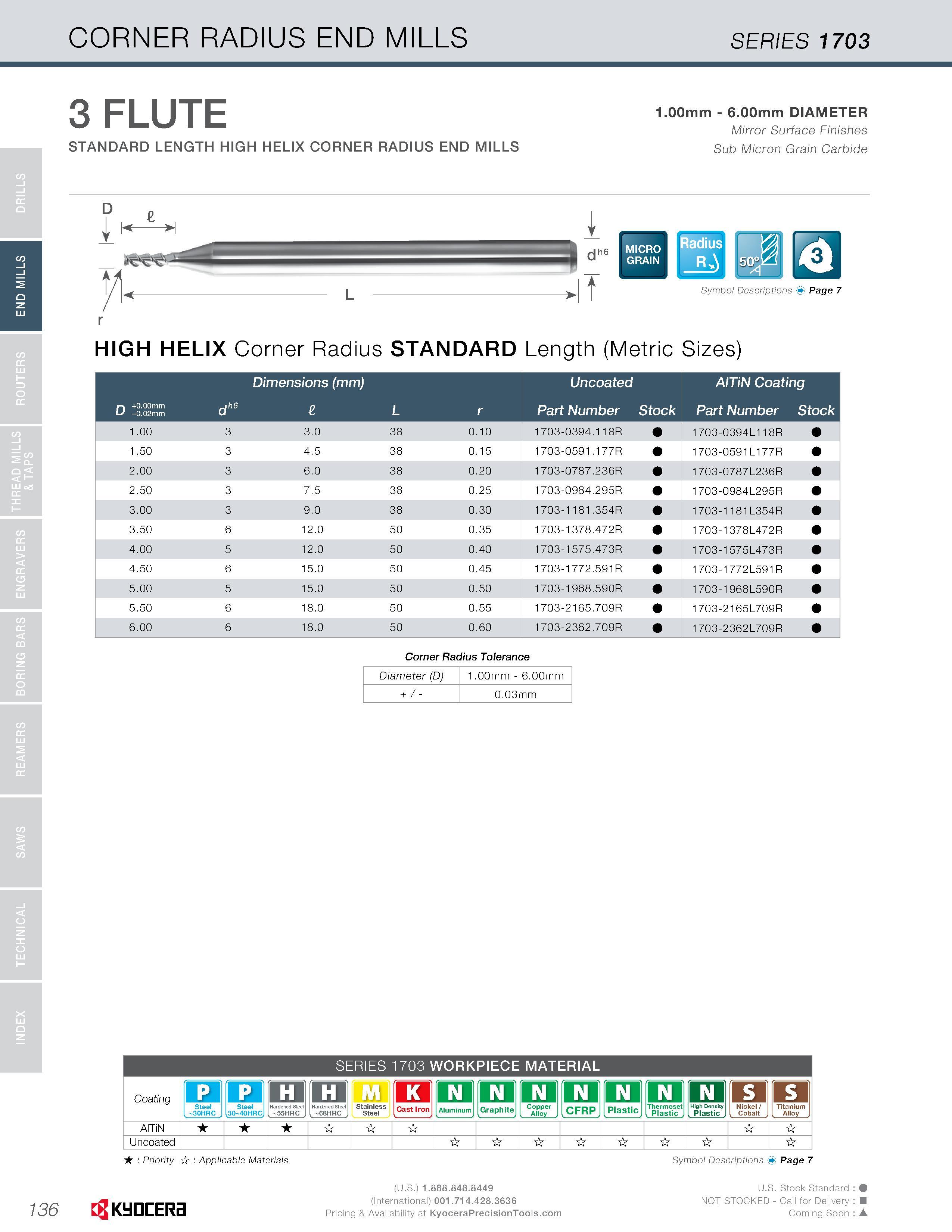

END MILLS CORNER RADIUS END MILLS SERIES 1703 136 3 FLUTE STANDARD LENGTH HIGH HELIX CORNER RADIUS END MILLS 1.00mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide micro I Radius GRAIN J Symbol Descriptions Page 7 HIGH HELIX Corner Radius STANDARD Length (Metric Sizes) Dimensions (mm) Uncoated AITiN Coating r-j +0.00mm -0.02mm dhG L r Part Number Stock Part Number Stock 1.00 3 3.0 38 0.10 1703-0394.118R 1 703-0394L11 8R 1.50 3 4.5 38 0.15 1703-0591.177R 1 703-0591 L177R 2.00 3 6.0 38 0.20 1 703-0787.236R 1703-0787L236R 2.50 3 7.5 38 0.25 1 703-0984.295R 1703-0984L295R 3.00 3 9.0 38 0.30 1703-1181.354R 1703-1181 L354R 3.50 6 12.0 50 0.35 1703-1 378.472R 1 703-1 378L472R 4.00 5 12.0 50 0.40 1703-1 575.473R 1 703-1 575L473R 4.50 6 15.0 50 0.45 1703-1 772.591 R 1 703-1 772L591R 5.00 5 15.0 50 0.50 1703-1 968.590R 1 703-1 968L590R 5.50 6 18.0 50 0.55 1703-2165.709R 1 703-2165L709R 6.00 6 18.0 50 0.60 1 703-2362.709R 1703-2362L709R Corner Radius Tolerance Diameter (D) 1.00mm - 6.00mm + /- 0.03mm SERIES 1703 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic O Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon (U.S.) wC.P l/Unrmi (International) 001.714.428.3636 l\.-jULtl\d Pricing & Availability at
