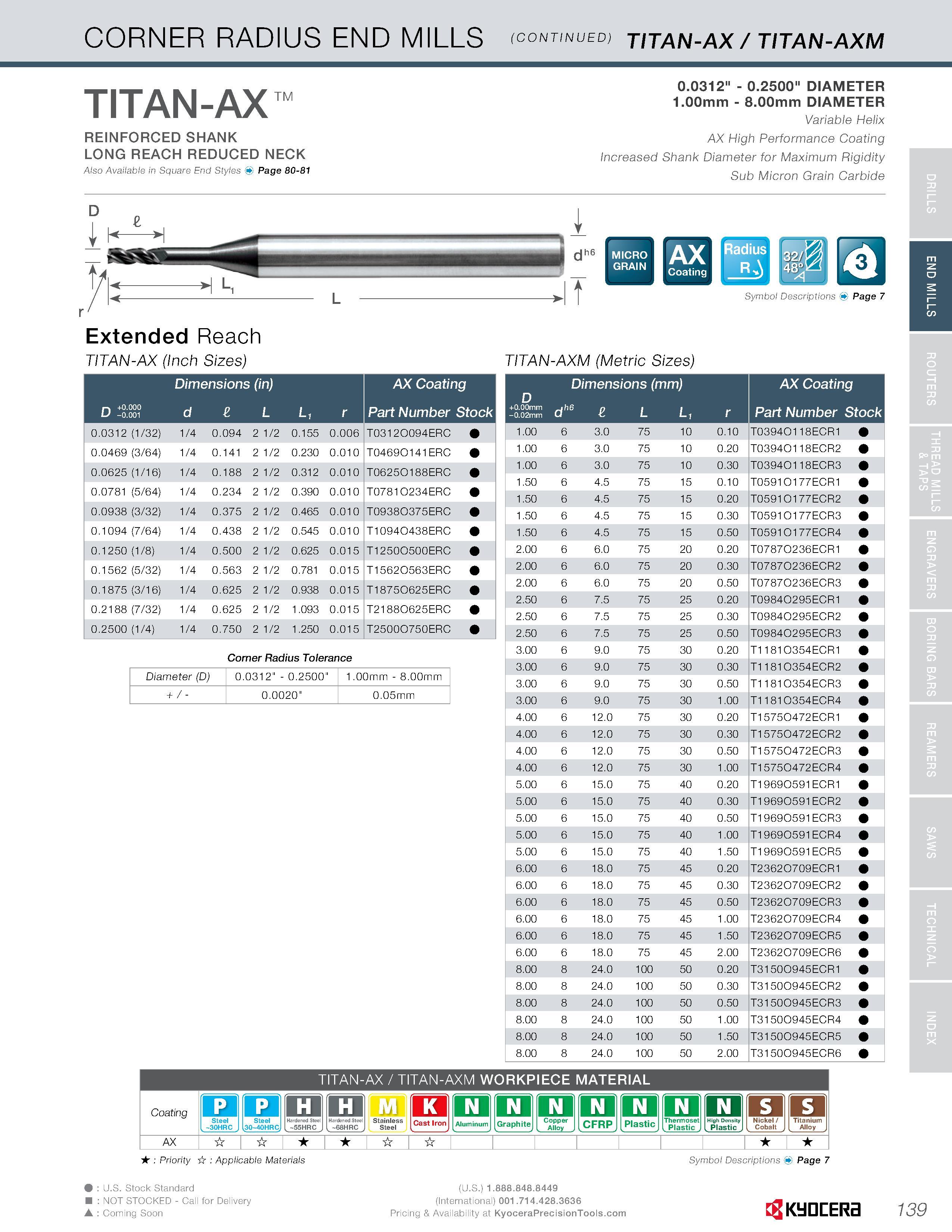

CORNER RADIUS END MILLS (continued) titan-ax/ titan-axm TITAN-AX TM REINFORCED SHANK LONG REACH REDUCED NECK Also Available in Square End Styles Page 80-81 0.0312" - 0.2500" DIAMETER 1.00mm - 8.00mm DIAMETER Variable Helix AX High Performance Coating Increased Shank Diameter for Maximum Rigidity Sub Micron Grain Carbide Extended Reach TITAN-AX (Inch Sizes) r- +0.000 U -0.001 Dimensions (in) d L L, r AX Coating Part Number Stock 0.0312 (1/32) 1/4 0.094 2 1/2 0.155 0.006 T03120094ERC 0.0469 (3/64) 1/4 0.141 2 1/2 0.230 0.010 T04690141 ERC 0.0625 (1/16) 1/4 0.188 2 1/2 0.312 0.010 T06250188ERC 0.0781 (5/64) 1/4 0.234 2 1/2 0.390 0.010 T07810234ERC 0.0938 (3/32) 1/4 0.375 2 1/2 0.465 0.010 T09380375ERC 0.1094 (7/64) 1/4 0.438 2 1/2 0.545 0.010 T10940438ERC 0.1250 (1/8) 1/4 0.500 2 1/2 0.625 0.015 T12500500ERC 0.1562 (5/32) 1/4 0.563 2 1/2 0.781 0.015 T15620563ERC 0.1875 (3/16) 1/4 0.625 2 1/2 0.938 0.015 T18750625ERC 0.2188 (7/32) 1/4 0.625 2 1/2 1.093 0.015 T21880625ERC 0.2500 (1/4) 1/4 0.750 2 1/2 1.250 0.015 T25000750ERC Corner Radius Tolerance Diameter (D) 0.0312" - 0.2500" 1.00mm - 8.00mm + /- 0.0020" 0.05mm AX Coating TITAN-AXM (Metric Sizes) Radius Symbol Descriptions Page 7 D +0.00mm -0.02mm Dimensions (mm) dh6 ILL, r AX Coating Part Number Stock 1.00 6 3.0 75 10 0.10 T03940118ECR1 1.00 6 3.0 75 10 0.20 T03940118ECR2 1.00 6 3.0 75 10 0.30 T03940118ECR3 1.50 6 4.5 75 15 0.10 T05910177ECR1 1.50 6 4.5 75 15 0.20 T05910177ECR2 1.50 6 4.5 75 15 0.30 T05910177ECR3 1.50 6 4.5 75 15 0.50 T05910177ECR4 2.00 6 6.0 75 20 0.20 T07870236ECR1 2.00 6 6.0 75 20 0.30 T07870236ECR2 2.00 6 6.0 75 20 0.50 T07870236ECR3 2.50 6 7.5 75 25 0.20 T09840295ECR1 2.50 6 7.5 75 25 0.30 T09840295ECR2 2.50 6 7.5 75 25 0.50 T09840295ECR3 3.00 6 9.0 75 30 0.20 T11810354ECR1 3.00 6 9.0 75 30 0.30 T11810354ECR2 3.00 6 9.0 75 30 0.50 T11810354ECR3 3.00 6 9.0 75 30 1.00 T11810354ECR4 4.00 6 12.0 75 30 0.20 T15750472ECR1 4.00 6 12.0 75 30 0.30 T15750472 ECR2 4.00 6 12.0 75 30 0.50 T15750472ECR3 4.00 6 12.0 75 30 1.00 T15750472 ECR4 5.00 6 15.0 75 40 0.20 T19690591 ECR1 5.00 6 15.0 75 40 0.30 T19690591 ECR2 5.00 6 15.0 75 40 0.50 T19690591 ECR3 5.00 6 15.0 75 40 1.00 T19690591 ECR4 5.00 6 15.0 75 40 1.50 T19690591 ECR5 6.00 6 18.0 75 45 0.20 T23620709ECR1 6.00 6 18.0 75 45 0.30 T23620709ECR2 6.00 6 18.0 75 45 0.50 T23620709ECR3 6.00 6 18.0 75 45 1.00 T23620709ECR4 6.00 6 18.0 75 45 1.50 T23620709ECR5 6.00 6 18.0 75 45 2.00 T23620709ECR6 8.00 8 24.0 100 50 0.20 T31500945ECR1 8.00 8 24.0 100 50 0.30 T31500945ECR2 8.00 8 24.0 100 50 0.50 T31500945ECR3 8.00 8 24.0 100 50 1.00 T31500945ECR4 8.00 8 24.0 100 50 1.50 T31500945ECR5 8.00 8 24.0 100 50 2.00 T31500945ECR6 TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC i'jJ Stainless Steel K Aluminum Q Graphite Q Copper Alloy o CFRP o Plastic o Thermoset . Plastic . o Plastic I s I s j Cast IronJ Nickel/ t Cobalt J Titanium I Alloy J AX it: Priority Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 139 END MILLS
