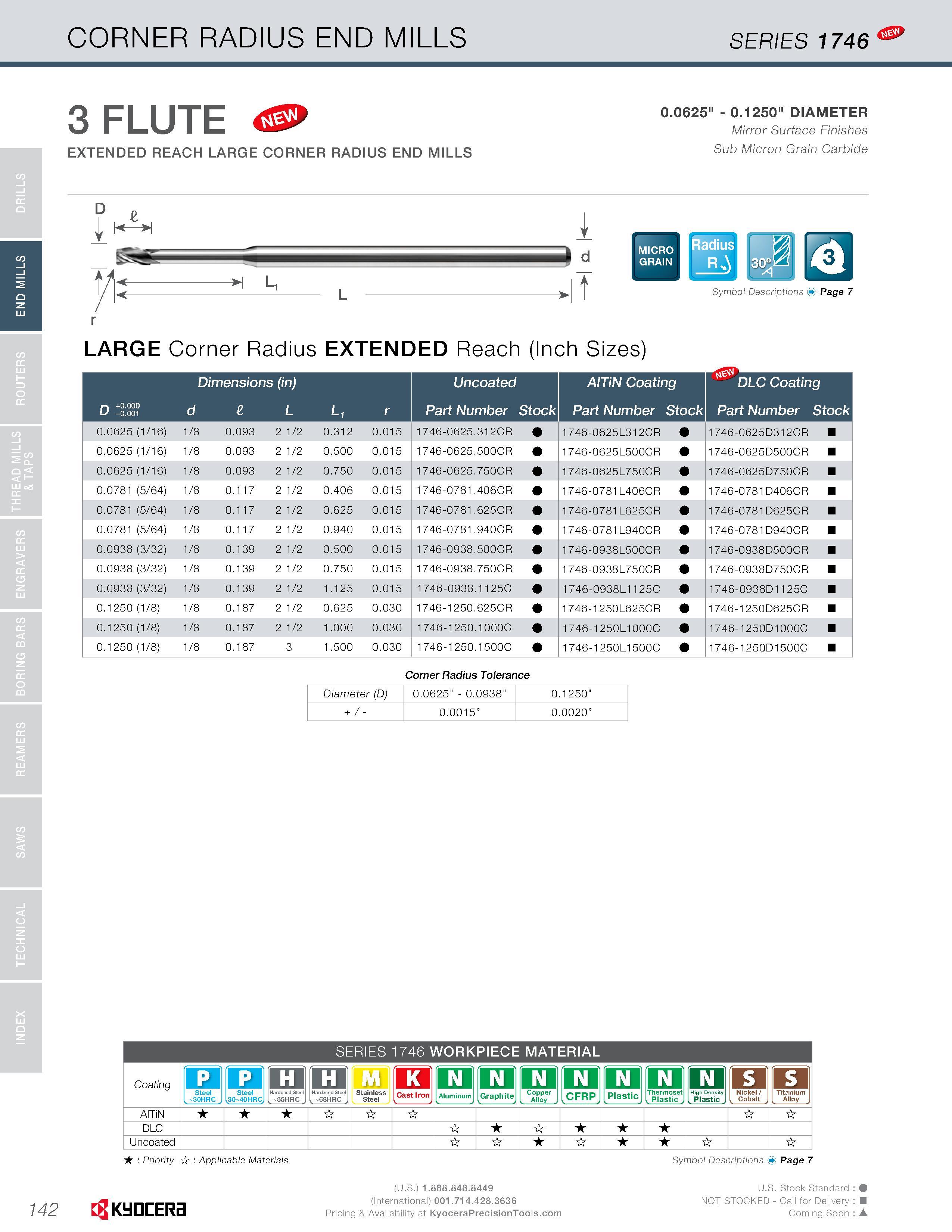

END MILLS CORNER RADIUS END MILLS 142 3 FLUTE 0.0625" - 0.1250" DIAMETER Mirror Surface Finishes EXTENDED REACH LARGE CORNER RADIUS END MILLS Sub Micron Grain Carbide t/e -H Li i -It Radius m Symbol Descriptions Page 7 LARGE Corner Radius EXTENDED Reach (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating r +0.000 V -0.001 d L L, r Part Number Stock Part Number Stock Part Number Stock 0.0625 (1/16) 1/8 0.093 2 1/2 0.312 0.015 1746-0625.312CR 1 746-0625L31 2CR 1746-0625D312CR 0.0625 (1/16) 1/8 0.093 2 1/2 0.500 0.015 1 746-0625.500CR 1746-0625L500CR 1746-0625D500CR 0.0625 (1/16) 1/8 0.093 2 1/2 0.750 0.015 1 746-0625.750CR 1746-0625L750CR 1746-0625D750CR 0.0781 (5/64) 1/8 0.117 2 1/2 0.406 0.015 1746-0781.406CR 1 746-0781 L406CR 1 746-0781 D406CR 0.0781 (5/64) 1/8 0.117 2 1/2 0.625 0.015 1746-0781.625CR 1 746-0781 L625CR 1 746-0781 D625CR 0.0781 (5/64) 1/8 0.117 2 1/2 0.940 0.015 1746-0781.940CR 1 746-0781 L940CR 1 746-0781 D940CR 0.0938 (3/32) 1/8 0.139 2 1/2 0.500 0.015 1 746-0938.500CR 1746-0938L500CR 1746-0938D500CR 0.0938 (3/32) 1/8 0.139 2 1/2 0.750 0.015 1 746-0938.750CR 1746-0938L750CR 1746-0938D750CR 0.0938 (3/32) 1/8 0.139 2 1/2 1.125 0.015 1746-0938.1125C 1 746-0938L11 25C 1746-0938D1125C 0.1250 (1/8) 1/8 0.187 2 1/2 0.625 0.030 1746-1250.625CR 1 746-1 250L625CR 1 746-1 250D625CR 0.1250 (1/8) 1/8 0.187 2 1/2 1.000 0.030 1746-1250.1000C 1 746-1 250L1000C 1746-1250D1000C 0.1250 (1/8) 1/8 0.187 3 1.500 0.030 1746-1250.1500C 1 746-1 250L1500C 1746-1250D1500C Corner Radius Tolerance Diameter (D) 0.0625" - 0.0938" 0.1250" + / - 0.0015” 0.0020” SERIES 1746 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset . Plastic . o . Plastic I s I 'I si j Cast IronJ Nickel/ t Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon (U.S.) wC.P l/Unrmi (International) 001.714.428.3636 l\.-jULtl\d Pricing & Availability at
