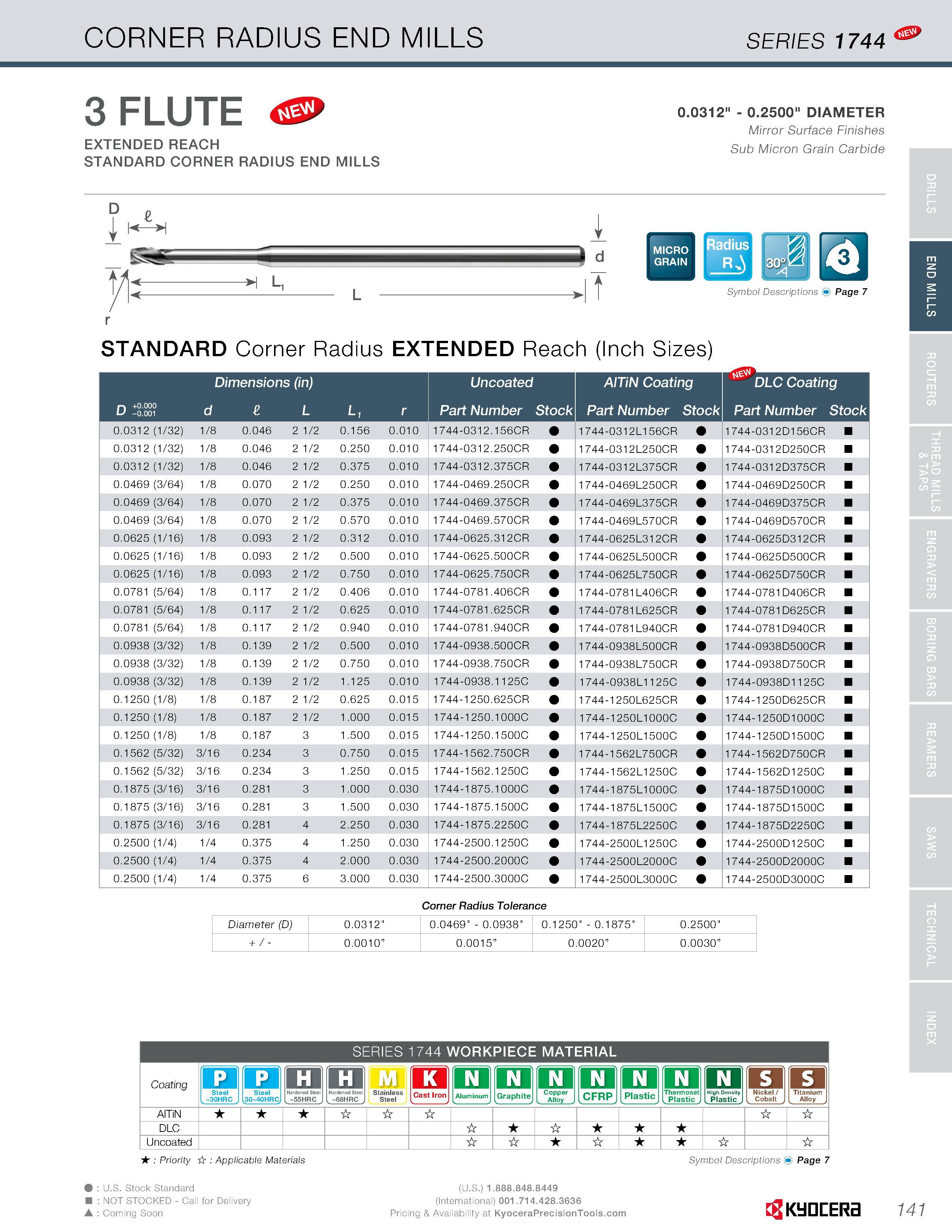

143 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.141

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 141 0143 ENG Lab2u

CORNER RADIUS END MILLS 3 FLUTE <5S> EXTENDED REACH STANDARD CORNER RADIUS END MILLS 0.0312" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide D j I- “H Li lt Radius Symbol Descriptions Page 7 STANDARD Corner Radius EXTENDED Reach (Inch Sizes) +0.000 L/ -0.001 Dimensions (in) d L L, r Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0312 (1/32) 1/8 0.046 2 1/2 0.156 0.010 1744-0312.156CR 1744-0312L156CR 1 744-031 2D156CR 0.0312 (1/32) 1/8 0.046 2 1/2 0.250 0.010 1744-0312.250CR 1 744-0312 L250CR 1 744-031 2D250CR 0.0312 (1/32) 1/8 0.046 2 1/2 0.375 0.010 1744-0312.375CR 1 744-0312 L375CR 1 744-031 2D375CR 0.0469 (3/64) 1/8 0.070 2 1/2 0.250 0.010 1 744-0469.250CR 1744-0469L250CR 1744-0469D250CR 0.0469 (3/64) 1/8 0.070 2 1/2 0.375 0.010 1 744-0469.375CR 1744-0469L375CR 1744-0469D375CR 0.0469 (3/64) 1/8 0.070 2 1/2 0.570 0.010 1 744-0469.570CR 1744-0469L570CR 1744-0469D570CR 0.0625 (1/16) 1/8 0.093 2 1/2 0.312 0.010 1744-0625.312CR 1 744-0625L31 2CR 1744-0625D312CR 0.0625 (1/16) 1/8 0.093 2 1/2 0.500 0.010 1 744-0625.500CR 1744-0625L500CR 1744-0625D500CR 0.0625 (1/16) 1/8 0.093 2 1/2 0.750 0.010 1 744-0625.750CR 1744-0625L750CR 1744-0625D750CR 0.0781 (5/64) 1/8 0.117 2 1/2 0.406 0.010 1744-0781.406CR 1 744-0781 L406CR 1 744-0781 D406CR 0.0781 (5/64) 1/8 0.117 2 1/2 0.625 0.010 1744-0781.625CR 1 744-0781 L625CR 1 744-0781 D625CR 0.0781 (5/64) 1/8 0.117 2 1/2 0.940 0.010 1744-0781.940CR 1 744-0781 L940CR 1 744-0781 D940CR 0.0938 (3/32) 1/8 0.139 2 1/2 0.500 0.010 1 744-0938.500CR 1744-0938L500CR 1744-0938D500CR 0.0938 (3/32) 1/8 0.139 2 1/2 0.750 0.010 1 744-0938.750CR 1744-0938L750CR 1744-0938D750CR 0.0938 (3/32) 1/8 0.139 2 1/2 1.125 0.010 1744-0938.1125C 1 744-0938L11 25C 1744-0938D1125C 0.1250 (1/8) 1/8 0.187 2 1/2 0.625 0.015 1744-1250.625CR 1 744-1 250L625CR 1 744-1 250D625CR 0.1250 (1/8) 1/8 0.187 2 1/2 1.000 0.015 1744-1250.1000C 1 744-1 250L1000C 1744-1250D1000C 0.1250 (1/8) 1/8 0.187 3 1.500 0.015 1744-1250.1500C 1 744-1 250L1500C 1744-1250D1500C 0.1562 (5/32) 3/16 0.234 3 0.750 0.015 1744-1 562.750CR 1 744-1 562L750CR 1 744-1 562D750CR 0.1562 (5/32) 3/16 0.234 3 1.250 0.015 1744-1562.1250C 1 744-1 562L1250C 1744-1562D1250C 0.1875 (3/16) 3/16 0.281 3 1.000 0.030 1744-1 875.1 000C 1 744-1 875L1000C 1744-1875D1000C 0.1875 (3/16) 3/16 0.281 3 1.500 0.030 1744-1 875.1 500C 1 744-1 875L1500C 1744-1875D1500C 0.1875 (3/16) 3/16 0.281 4 2.250 0.030 1744-1 875.2250C 1 744-1 875L2250C 1744-1875D2250C 0.2500 (1/4) 1/4 0.375 4 1.250 0.030 1 744-2500.1 250C 1 744-2 500L1250C 1744-2500D1250C 0.2500 (1/4) 1/4 0.375 4 2.000 0.030 1 744-2500.2000C 1744-2500L2000C 1744-2500D2000C 0.2500 (1/4) 1/4 0.375 6 3.000 0.030 1 744-2500.3000C 1744-2500L3000C 1744-2500D3000C Corner Radius Tolerance Diameter (D) 0.0312" 0.0469" - 0.0938" 0.1250" - 0.1875" 0.2500" + / - 0.0010” 0.0015” 0.0020” 0.0030” SERIES 1744 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . Q . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated it: Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 141 END MILLS
