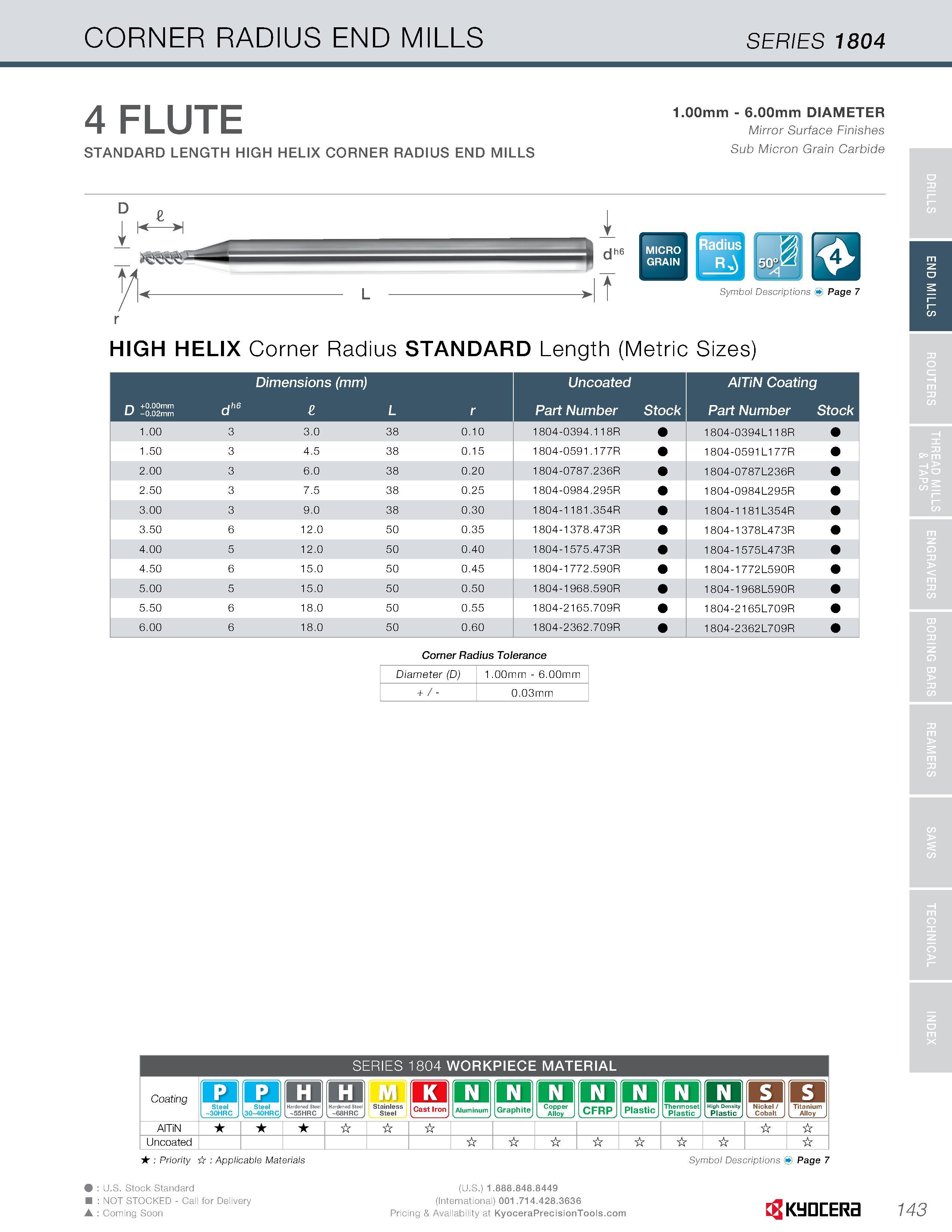

CORNER RADIUS END MILLS SERIES 1804 1.00mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide r HIGH HELIX Corner Radius STANDARD Length (Metric Sizes) Uncoated AITiN Coating Part Number Stock Part Number Stock Dimensions (mm) D +0.00mm -0.02mm 4 FLUTE STANDARD LENGTH HIGH HELIX CORNER RADIUS END MILLS 1.00 3 3.0 38 0.10 1804-0394.118R 1 804-0394L11 8R 1.50 3 4.5 38 0.15 1804-0591.177R 1 804-0591 L177R 2.00 3 6.0 38 0.20 1 804-0787.236R 1804-0787L236R 2.50 3 7.5 38 0.25 1 804-0984.295R 1804-0984L295R 3.00 3 9.0 38 0.30 1804-1181.354R 1804-1181 L354R 3.50 6 12.0 50 0.35 1804-1 378.473R 1804-1 378L473R 4.00 5 12.0 50 0.40 1804-1 575.473R 1804-1 575L473R 4.50 6 15.0 50 0.45 1804-1 772.590R 1804-1 772L590R 5.00 5 15.0 50 0.50 1804-1 968.590R 1804-1 968L590R 5.50 6 18.0 50 0.55 1804-2165.709R 1 804-21 65L709R 6.00 6 18.0 50 0.60 1 804-2362.709R 1804-2362L709R Corner Radius Tolerance Diameter (D) 1.00mm - 6.00mm + / - 0.03mm SERIES 1804 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC A1 Stainless Steel o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Hr Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Corning Soon (U.S.) (International) 001.714.428.3636 i un Pricing & Availability 143 END MILLS
