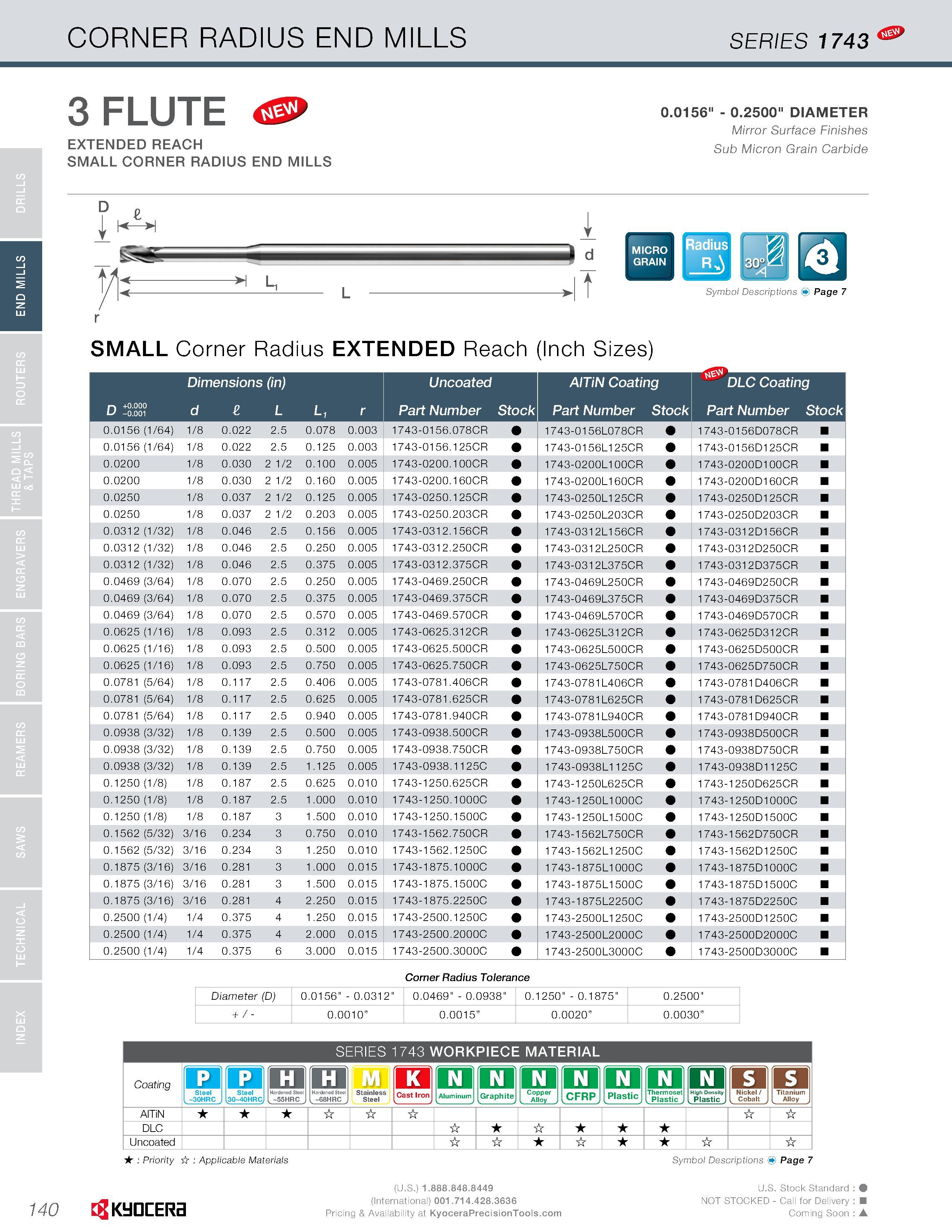

END MILLS CORNER RADIUS END MILLS 3 FLUTE 0.0156" - 0.2500" DIAMETER Mirror Surface Finishes EXTENDED REACH Sub Micron Grain Carbide SMALL CORNER RADIUS END MILLS t/fe -H L, Radius Symbol Descriptions ( SMALL Corner Radius EXTENDED Reach (Inch Sizes) Dimensions (in) Uncoated AITiN Coating D d L L, r Part Number Stock Part Number Stock i DLC Coating 0.0156 (1/64) 1/8 0.022 2.5 0.078 0.003 1743-0156.078CR 1743-01 56L078CR 1 743-0156 D078CR 0.0156 (1/64) 1/8 0.022 2.5 0.125 0.003 1743-0156.125CR 1743-01 56L1 2 5CR 1 743-0156D125CR 0.0200 1/8 0.030 2 1/2 0.100 0.005 1743-0200.100CR 1743-0200L100CR 1 743-0200D1 00CR 0.0200 1/8 0.030 2 1/2 0.160 0.005 1743-0200.160CR 1743-0200L160CR 1 743-0200D1 60CR 0.0250 1/8 0.037 2 1/2 0.125 0.005 1743-0250.125CR 1743-0250L125CR 1 743-0250D1 25CR 0.0250 1/8 0.037 2 1/2 0.203 0.005 1743-0250.203CR 1743-0250L203CR 1743-0250D203CR 0.0312 (1/32) 1/8 0.046 2.5 0.156 0.005 1743-0312.156CR 1743-031 2L156CR 1 743-031 2D156CR 0.0312 (1/32) 1/8 0.046 2.5 0.250 0.005 1743-0312.250CR 1743-031 2 L250CR 1 743-031 2D250CR 0.0312 (1/32) 1/8 0.046 2.5 0.375 0.005 1743-0312.375CR 1743-031 2 L375CR 1 743-031 2D375CR 0.0469 (3/64) 1/8 0.070 2.5 0.250 0.005 1743-0469.250CR 1743-0469L250CR 1743-0469D250CR 0.0469 (3/64) 1/8 0.070 2.5 0.375 0.005 1743-0469.375CR 1743-0469L375CR 1743-0469D375CR 0.0469 (3/64) 1/8 0.070 2.5 0.570 0.005 1743-0469.570CR 1743-0469L570CR 1743-0469D570CR 0.0625 (1/16) 1/8 0.093 2.5 0.312 0.005 1743-0625.312CR 1743-0625L312CR 1743-0625D312CR 0.0625 (1/16) 1/8 0.093 2.5 0.500 0.005 1743-0625.500CR 1743-0625L500CR 1743-0625D500CR 0.0625 (1/16) 1/8 0.093 2.5 0.750 0.005 1743-0625.750CR 1743-0625L750CR 1743-0625D750CR 0.0781 (5/64) 1/8 0.117 2.5 0.406 0.005 1743-0781.406CR 1743-0781 L406CR 1 743-0781 D406CR 0.0781 (5/64) 1/8 0.117 2.5 0.625 0.005 1743-0781.625CR 1743-0781 L625CR 1 743-0781 D625CR 0.0781 (5/64) 1/8 0.117 2.5 0.940 0.005 1743-0781.940CR 1743-0781 L940CR 1 743-0781 D940CR 0.0938 (3/32) 1/8 0.139 2.5 0.500 0.005 1743-0938.500CR 1743-0938L500CR 1743-0938D500CR 0.0938 (3/32) 1/8 0.139 2.5 0.750 0.005 1743-0938.750CR 1743-0938L750CR 1743-0938D750CR 0.0938 (3/32) 1/8 0.139 2.5 1.125 0.005 1743-0938.1125C 1743-0938L1125C 1 743-0938D11 25C 0.1250 (1/8) 1/8 0.187 2.5 0.625 0.010 1743-1250.625CR 1743-1 250L625CR 1 743-1 250D625CR 0.1250 (1/8) 1/8 0.187 2.5 1.000 0.010 1743-1250.1000C 1 743-1 250L1000C 1743-1250D1000C 0.1250 (1/8) 1/8 0.187 3 1.500 0.010 1743-1250.1500C 1 743-1 250L1500C 1743-1250D1500C 0.1562 (5/32) 3/16 0.234 3 0.750 0.010 1743-1562.750CR 1743-1 562 L750CR 1 743-1 562D750CR 0.1562 (5/32) 3/16 0.234 3 1.250 0.010 1743-1562.1250C 1 743-1 562L1250C 1743-1562D1250C 0.1875 (3/16) 3/16 0.281 3 1.000 0.015 1743-1875.1000C 1 743-1 875L1000C 1 743-1 875D1000C 0.1875 (3/16) 3/16 0.281 3 1.500 0.015 1743-1875.1500C 1 743-1 875L1500C 1 743-1 875D1500C 0.1875 (3/16) 3/16 0.281 4 2.250 0.015 1743-1 875.2250C 1 743-1 875L2250C 1 743-1 875D2250C 0.2500 (1/4) 1/4 0.375 4 1.250 0.015 1743-2500.1250C 1 743-2500L1 250C 1743-2500D1250C 0.2500 (1/4) 1/4 0.375 4 2.000 0.015 1 743-2500.2000C 1743-2500L2000C 1743-2500D2000C 0.2500 (1/4) 1/4 0.375 6 3.000 0.015 1 743-2500.3000C 1743-2500L3000C 1743-2500D3000C Corner Radius Tolerance Diameter (D) 0.0156" - 0.0312" 0.0469" - 0.0938" 0.1250" - 0.1875" 0.2500" + / - 0.0010” 0.0015” 0.0020” 0.0030” SERIES 1743 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I 'Is I j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Hr Applicable Materials Symbol Descriptions Page 7 140 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
