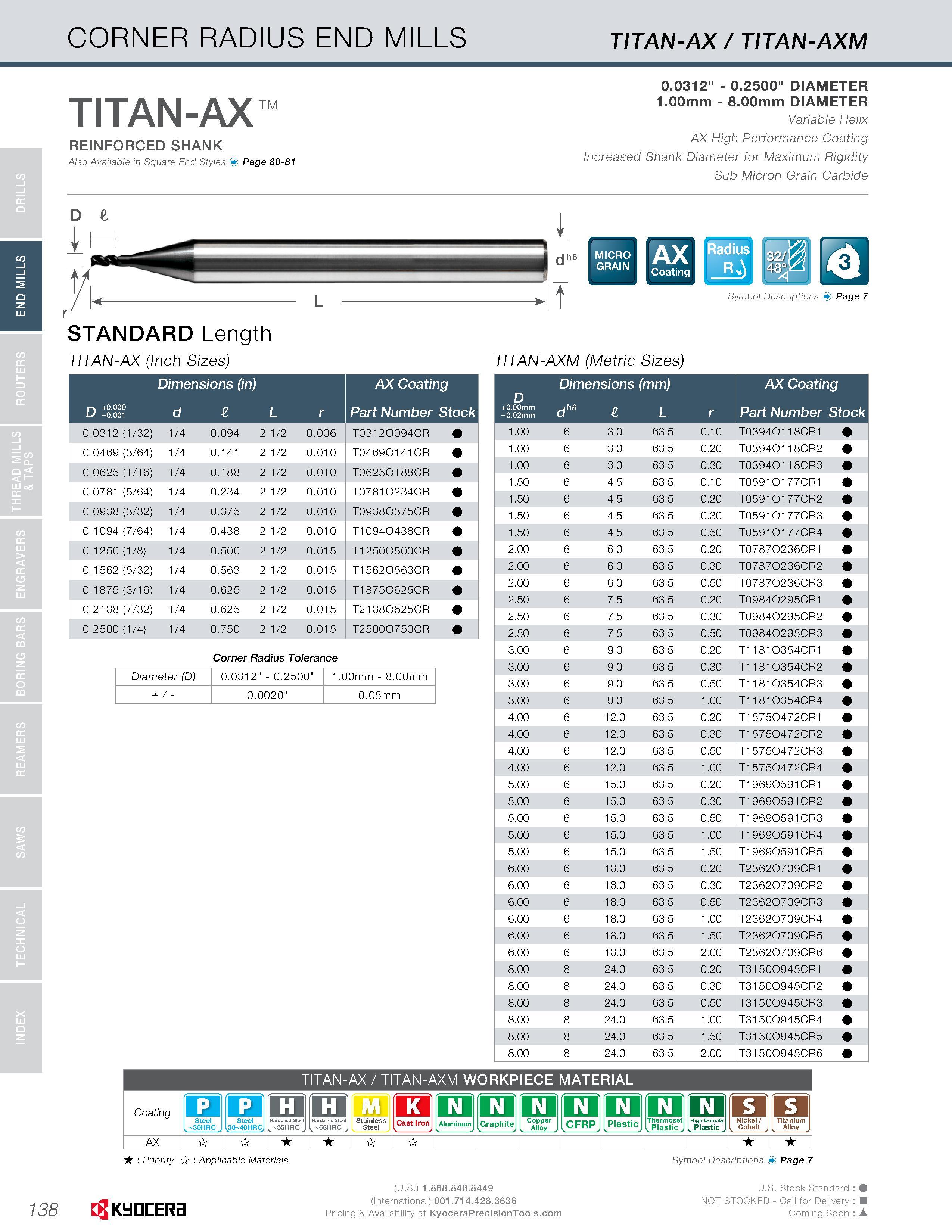

END MILLS CORNER RADIUS END MILLS TITAN-AX / TITAN-AXM TITAN-AX TM REINFORCED SHANK Also Available in Square End Styles Page 80-81 0.0312" - 0.2500" DIAMETER 1.00mm - 8.00mm DIAMETER Variable Helix AX High Performance Coating Increased Shank Diameter for Maximum Rigidity Sub Micron Grain Carbide D Symbol Descriptions Page 7 STANDARD Length TITAN-AX (Inch Sizes) TITAN-AXM (Metric Sizes) Dimensions (in) AX Coating r-k +0.000 U -0.001 d L r Part Number Stock Dimensions (mm) AX Coating D +0.00mm -0.02mm dh6 L r Part Number Stock 0.0312 (1/32) 1/4 0.094 2 1/2 0.006 T03120094CR 0.0469 (3/64) 1/4 0.141 2 1/2 0.010 T046901 41 CR 0.0625 (1/16) 1/4 0.188 2 1/2 0.010 T06250188CR 0.0781 (5/64) 1/4 0.234 2 1/2 0.010 T07810234CR 0.0938 (3/32) 1/4 0.375 2 1/2 0.010 T09380375CR 0.1094 (7/64) 1/4 0.438 2 1/2 0.010 T1 0940438CR 0.1250 (1/8) 1/4 0.500 2 1/2 0.015 T1 2500500CR 0.1562 (5/32) 1/4 0.563 2 1/2 0.015 T1 5620563CR 0.1875 (3/16) 1/4 0.625 2 1/2 0.015 T1 8750625CR 0.2188 (7/32) 1/4 0.625 2 1/2 0.015 T21880625CR 0.2500 (1/4) 1/4 0.750 2 1/2 0.015 T25000750CR Corner Radius Tolerance Diameter (D) 0.0312" - 0.2500" 1.00mm - 8.00mm + / - 0.0020" 0.05mm 1.00 6 3.0 63.5 0.10 T03940118CR1 1.00 6 3.0 63.5 0.20 T03940118CR2 1.00 6 3.0 63.5 0.30 T03940118CR3 1.50 6 4.5 63.5 0.10 T05910177CR1 1.50 6 4.5 63.5 0.20 T05910177CR2 1.50 6 4.5 63.5 0.30 T05910177CR3 1.50 6 4.5 63.5 0.50 T05910177CR4 2.00 6 6.0 63.5 0.20 T07870236CR1 2.00 6 6.0 63.5 0.30 T07870236CR2 2.00 6 6.0 63.5 0.50 T07870236CR3 2.50 6 7.5 63.5 0.20 T09840295CR1 2.50 6 7.5 63.5 0.30 T09840295CR2 2.50 6 7.5 63.5 0.50 T09840295CR3 3.00 6 9.0 63.5 0.20 T11810354CR1 3.00 6 9.0 63.5 0.30 T11 810354CR2 3.00 6 9.0 63.5 0.50 T11810354CR3 3.00 6 9.0 63.5 1.00 T11 810354CR4 4.00 6 12.0 63.5 0.20 T15750472CR1 4.00 6 12.0 63.5 0.30 T15750472CR2 4.00 6 12.0 63.5 0.50 T15750472CR3 4.00 6 12.0 63.5 1.00 T15750472CR4 5.00 6 15.0 63.5 0.20 T19690591CR1 5.00 6 15.0 63.5 0.30 T19690591CR2 5.00 6 15.0 63.5 0.50 T19690591CR3 5.00 6 15.0 63.5 1.00 T19690591CR4 5.00 6 15.0 63.5 1.50 T19690591CR5 6.00 6 18.0 63.5 0.20 T23620709CR1 6.00 6 18.0 63.5 0.30 T23620709CR2 6.00 6 18.0 63.5 0.50 T23620709CR3 6.00 6 18.0 63.5 1.00 T23620709CR4 6.00 6 18.0 63.5 1.50 T23620709CR5 6.00 6 18.0 63.5 2.00 T23620709CR6 8.00 8 24.0 63.5 0.20 T31500945CR1 8.00 8 24.0 63.5 0.30 T31500945CR2 8.00 8 24.0 63.5 0.50 T31500945CR3 8.00 8 24.0 63.5 1.00 T31500945CR4 8.00 8 24.0 63.5 1.50 T31500945CR5 8.00 8 24.0 63.5 2.00 T31500945CR6 TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminuin o Graphite Q Copper Alloy o CFRP o Plastic o Thermoset Plastic . O Plastic s s j Cast Ironj Nickel/ t Cobalt J Titanium I Alloy J AX Priority Or Applicable Materials Symbol Descriptions Page 7 138 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
