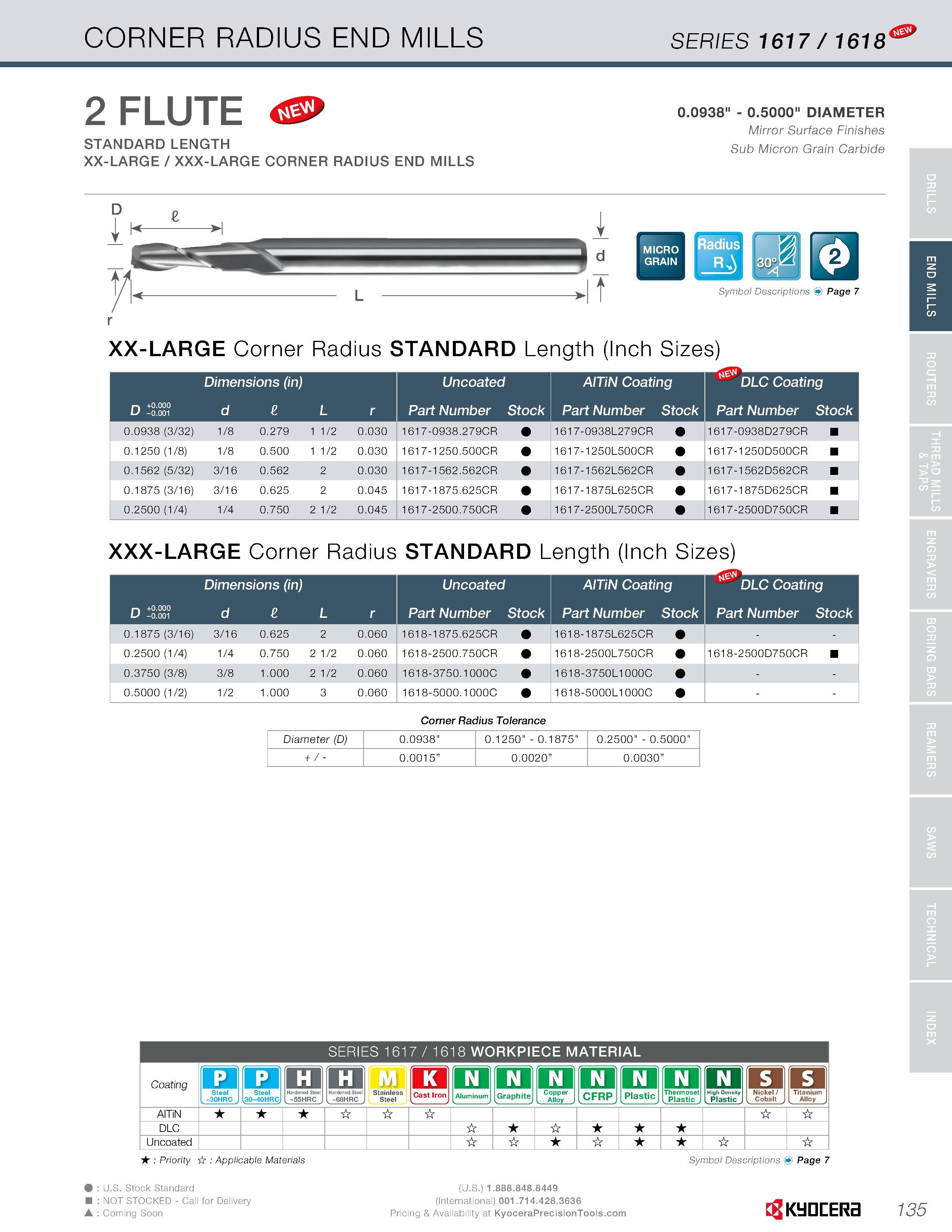

CORNER RADIUS END MILLS SERIES 1617 / 1618 2 FLUTE STANDARD LENGTH XX-LARGE / XXX-LARGE CORNER RADIUS END MILLS 0.0938" - 0.5000" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide I 91 -It Radius Symbol Descriptions Page 7 XX-LARGE Corner Radius STANDARD Length (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating ni +0.000 U -0.001 d L r Part Number Stock Part Number Stock Part Number Stock 0.0938 (3/32) 1/8 0.279 1 1/2 0.030 161 7-0938.279CR 1617-0938L279CR 1 61 7-0938D279CR 0.1250 (1/8) 1/8 0.500 1 1/2 0.030 1617-1250.500CR 161 7-1250L500CR 1617-1250D500CR 0.1562 (5/32) 3/16 0.562 2 0.030 1617-1562.562CR 161 7-1562L562CR 1617-1562D562CR 0.1875 (3/16) 3/16 0.625 2 0.045 1617-1875.625CR 161 7-1875L625CR 1 61 7-1 875D625CR 0.2500 (1/4) 1/4 0.750 2 1/2 0.045 161 7-2500.750CR 1617-2500L750CR 1 61 7-2500D750CR XXX-LARGE Corner Radius STANDARD Length (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating ni +0.000 U -0.001 d L r Part Number Stock Part Number Stock Part Number Stock 0.1875 (3/16) 3/16 0.625 2 0.060 1618-1875.625CR 161 8-1875L625CR - 0.2500 (1/4) 1/4 0.750 2 1/2 0.060 161 8-2500.750CR 1618-2500L750CR 1 61 8-2500D750CR 0.3750 (3/8) 3/8 1.000 2 1/2 0.060 1618-3750.1000C 1618-3750L1000C - 0.5000 (1/2) 1/2 1.000 3 0.060 1618-5000.1000C 1618-5000L1000C - Corner Radius Tolerance Diameter (D) 0.0938" 0.1250" - 0.1875" 0.2500" - 0.5000" + /- 0.0015” 0.0020” 0.0030” SERIES 1617/1618 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast IronJ Nickel/ t Cobalt J Titanium Alloy J AITiN DLC Uncoated it: Priority Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 135 END MILLS
