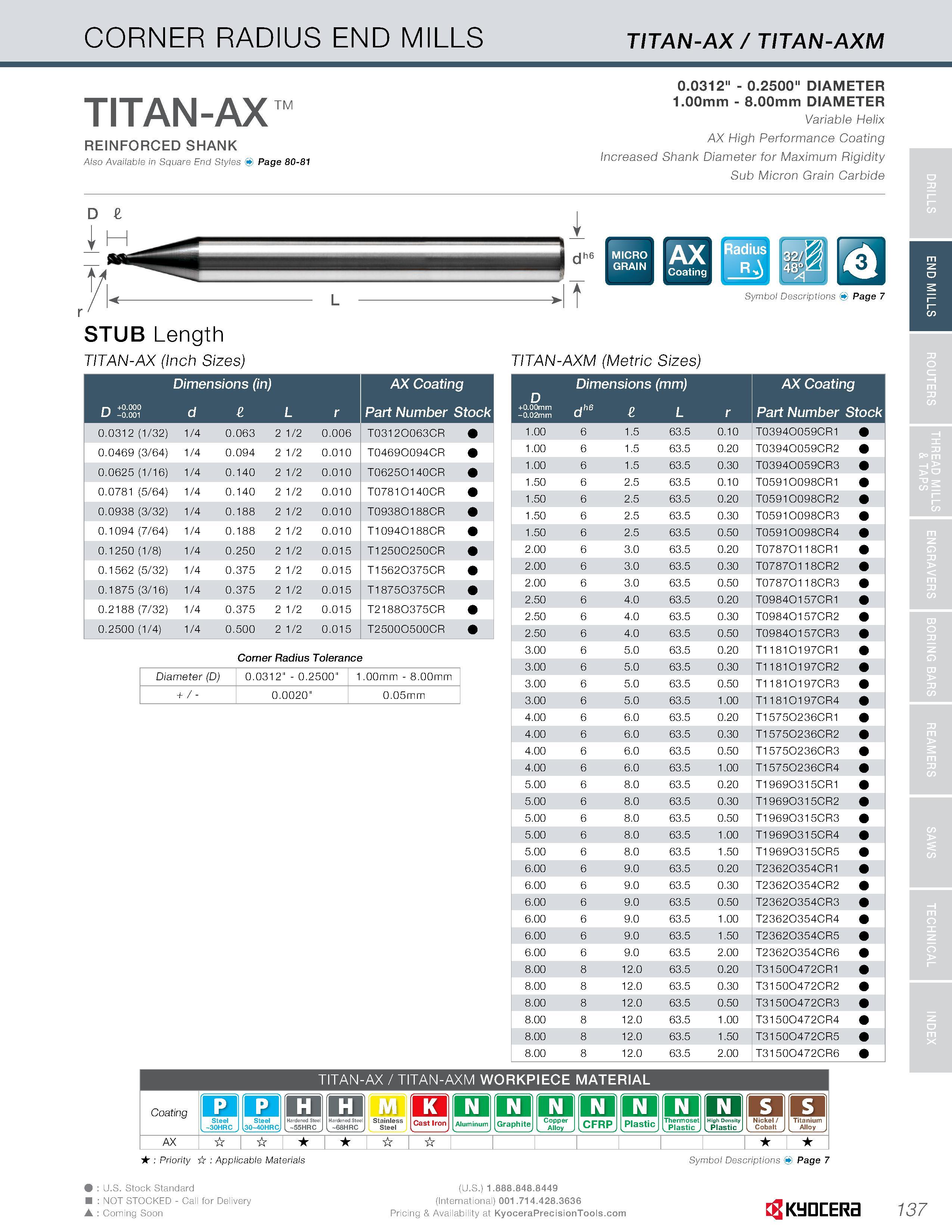

CORNER RADIUS END MILLS TITAN-AX / TITAN-AXM TITAN-AX TM REINFORCED SHANK Also Available in Square End Styles Page 80-81 0.0312" - 0.2500" DIAMETER 1.00mm - 8.00mm DIAMETER Variable Helix AX High Performance Coating Increased Shank Diameter for Maximum Rigidity Sub Micron Grain Carbide D AX STUB Length TITAN-AX (Inch Sizes) Symbol Descriptions Page 7 TITAN-AXM (Metric Sizes) Dimensions (in) AX Coating r-k +0.000 U -0.001 d L r Part Number Stock Dimensions (mm) AX Coating D +0.00mm -0.02mm dh6 L r Part Number Stock 0.0312 (1/32) 1/4 0.063 2 1/2 0.006 T03120063CR 0.0469 (3/64) 1/4 0.094 2 1/2 0.010 T04690094CR 0.0625 (1/16) 1/4 0.140 2 1/2 0.010 T06250140CR 0.0781 (5/64) 1/4 0.140 2 1/2 0.010 T0781 01 40CR 0.0938 (3/32) 1/4 0.188 2 1/2 0.010 T09380188CR 0.1094 (7/64) 1/4 0.188 2 1/2 0.010 T1 09401 88CR 0.1250 (1/8) 1/4 0.250 2 1/2 0.015 T1 2500250CR 0.1562 (5/32) 1/4 0.375 2 1/2 0.015 T1 5620375CR 0.1875 (3/16) 1/4 0.375 2 1/2 0.015 T1 8750375CR 0.2188 (7/32) 1/4 0.375 2 1/2 0.015 T21880375CR 0.2500 (1/4) 1/4 0.500 2 1/2 0.015 T25000500CR Corner Radius Tolerance Diameter (D) 0.0312" - 0.2500" 1.00mm - 8.00mm + / - 0.0020" 0.05mm 1.00 6 1.5 63.5 0.10 T03940059CR1 1.00 6 1.5 63.5 0.20 T03940059CR2 1.00 6 1.5 63.5 0.30 T03940059CR3 1.50 6 2.5 63.5 0.10 T05910098CR1 1.50 6 2.5 63.5 0.20 T05910098CR2 1.50 6 2.5 63.5 0.30 T05910098CR3 1.50 6 2.5 63.5 0.50 T05910098CR4 2.00 6 3.0 63.5 0.20 T07870118CR1 2.00 6 3.0 63.5 0.30 T07870118CR2 2.00 6 3.0 63.5 0.50 T07870118CR3 2.50 6 4.0 63.5 0.20 T09840157CR1 2.50 6 4.0 63.5 0.30 T09840157CR2 2.50 6 4.0 63.5 0.50 T09840157CR3 3.00 6 5.0 63.5 0.20 T11810197CR1 3.00 6 5.0 63.5 0.30 T11810197CR2 3.00 6 5.0 63.5 0.50 T11810197CR3 3.00 6 5.0 63.5 1.00 T11810197CR4 4.00 6 6.0 63.5 0.20 T15750236CR1 4.00 6 6.0 63.5 0.30 T15750236CR2 4.00 6 6.0 63.5 0.50 T15750236CR3 4.00 6 6.0 63.5 1.00 T15750236CR4 5.00 6 8.0 63.5 0.20 T19690315CR1 5.00 6 8.0 63.5 0.30 T19690315CR2 5.00 6 8.0 63.5 0.50 T19690315CR3 5.00 6 8.0 63.5 1.00 T19690315CR4 5.00 6 8.0 63.5 1.50 T19690315CR5 6.00 6 9.0 63.5 0.20 T23620354CR1 6.00 6 9.0 63.5 0.30 T23620354CR2 6.00 6 9.0 63.5 0.50 T23620354CR3 6.00 6 9.0 63.5 1.00 T23620354CR4 6.00 6 9.0 63.5 1.50 T23620354CR5 6.00 6 9.0 63.5 2.00 T23620354CR6 8.00 8 12.0 63.5 0.20 T31500472CR1 8.00 8 12.0 63.5 0.30 T31500472CR2 8.00 8 12.0 63.5 0.50 T31500472CR3 8.00 8 12.0 63.5 1.00 T31500472CR4 8.00 8 12.0 63.5 1.50 T31500472CR5 8.00 8 12.0 63.5 2.00 T31500472CR6 TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel K Aluminum Q Graphite o Copper Alloy o CFRP Q Plastic o Thermoset . Plastic . o Plastic s s j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AX Priority Hr Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 137 END MILLS
